V-44
Programming Manual
Part V Inspection Data
4.4 Pin Hole Inspection Setting
Pin hole inspection detects the hole in the solder.
4.4.1 Parameter of Copper Inspection
Figure 4-7 Pin Hole Inspection Setting
Parameter Description
Inspect Pin Hole
To activate Pin hole inspection, check Inspect Pin Hole .
To disable pin hole inspection, un-check Inspect Pin Hole.
Buttonʼs color is displayed as gray.
Width
The inspection area is specifi ed by width (pixel value) from the dotted line circle.
The inspection area is in the green circle.
Enter the smaller value to enlarge the inspection area.
Link area size of
Copper and PinHole
The inspection area size of Copper and Pin Hole are interlocked.
Width of Copper and Width of Pin Hole become same value. The inspection area
indicated by netting on the window of Copper becomes the inspection area of Pin Hole.
Upper limit Set the upper limit of the OK range.
Detected
Detects holes in a solder fi llet. After inspecting, the number of pixels of a hole (an area
whose color is recognized as black) is displayed above a Pin hole inspection window.
Lighting
Adjusts the each lighting slider to display the hole as the black.
Table 4-4 Parameter of Pin Hole Inspection
V-45
Programming Manual
Part V Inspection Data
4.4.2 Setting Procedure of Pin Hole Inspection
Step1: Press HOLE button.
Step2: Check Inspect Pin Hole.
Step3: Adjust Width to surround the hole. The inspection area is specifi ed by width (pixel value)
from the green circle. The inspection area is in the green circle. Enter the bigger value to
enlarge the inspection area.
Step4: Enter a value in the Upper limit fi eld.
NOTE
Detected indicates the number of pixels of the hole (an area whose color is
recognized as black).
NOTE
The value displayed on the screen indicates the value of Detected.
Figure 4-8 Pin Hole Inspection
V-46
Programming Manual
Part V Inspection Data
4.5 Straight Pin Inspection Setting
Straight pin inspection detects the straight pin automatically.
This algorithm verifi es if there are pins or not.
4.5.1 Parameter of Straight Pin Inspection

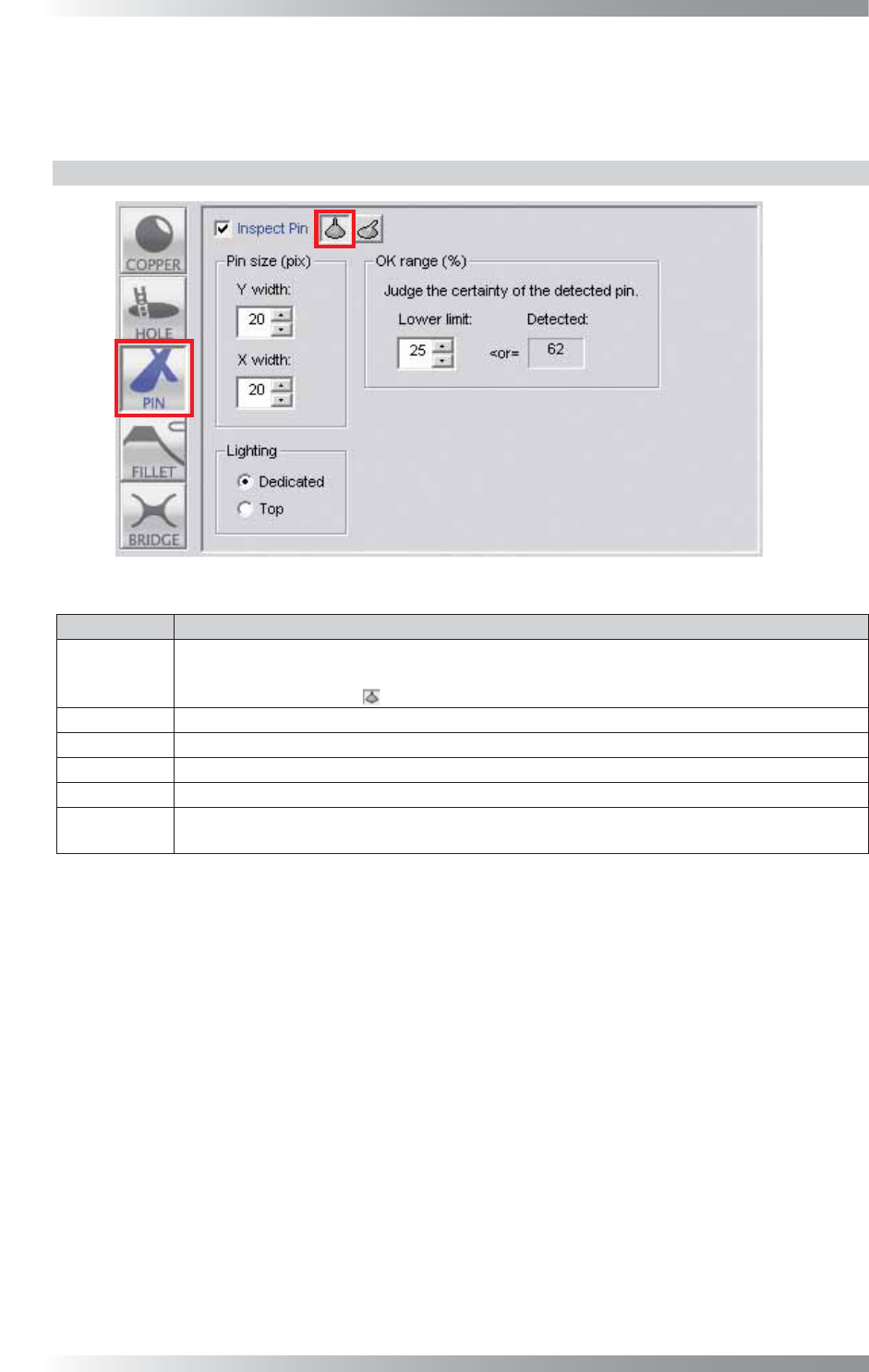

Figure 4-9 Straight Pin Inspection Setting
Parameter Description
Inspect Pin
To activate pin inspection, check Inspect Pin.
To disable pin inspection, un-check Inspect Pin. Buttonʼs color is displayed as gray.
Press straight pin icon (
) to inspect straight pin.
Y width
Set the width (pixel value) of the direction of the Y-axis of a pin.
X width
Set the width (pixel value) of the direction of the X-axis of a pin.
Lighting Select a lighting. Default setting is Dedicated.
Lower limit Set the lower limit of the OK range.
Detected
Displays Straight pin brightly and its surroundings darkly (refer to Figure 4-10).
The Detected value is high when an inspection area is bright and its surroundings are dark.
Table 4-5 Parameter of Straight Pin Inspection
