III- 28 Programming Manual Part III Inspection Algorithm 1.11 Black/White 1.11.1 Inspection Ov er view Black/White is the algorithm to inspect the percentage of the speci fi ed brightness level in the inspection window . …

100%1 / 257
III-27
Programming Manual
Part III Inspection Algorithm
1.10.3 Setting Procedure of Shift Inspection
Step1: Select a lighting that displays a polarity visually clear from the Lighting drop-down list.
Step2: Adjust the Diagonally inspection window position to surround the polarity mark.
Figure 1-30 Inspection Window of Diagonally
Step3: Set the number of the windows to be compared in Win Setting.
㪧㪈 㪧㪈
㪧㪈
㪧㪉
㪧㪉
㪧㪊
(a) Win Setting 1 (b) Win Setting 2 (c) Win Setting 3
Sample value = Base - P1
Calculate Base - P1, Base - P2, and Base - P3.
Max value is sample value.
Calculate Base - P1 and Base - P2.
Max value is sample value.
㪙㪸㫊㪼 㪙㪸㫊㪼 㪙㪸㫊㪼
Figure 1-31 Win Setting
Step4: If the brightness level of the polarity mark is higher than the brightness level of the component
body, enter 255 in the Upper eld and 1 in the Lower eld. If the brightness level of the
polarity mark is lower than the brightness level of the component body, enter -1 in the
Upper eld and -255 in the Lower eld.
Step5: Enter the appropriate vector into the Shift eld by selecting from V1 to V8 according to the
vector used in Memorize to in the Adjust window.
Step6: Press Inspect. Make sure that the inspection is completed properly.
III-28
Programming Manual
Part III Inspection Algorithm
1.11 Black/White
1.11.1 Inspection Overview
Black/White is the algorithm to inspect the percentage of the speci ed brightness level in the
inspection window.
If the percentage of the speci ed level exceeds a certain value, the result will be OK.
Black/White is suitable for solder inspection of chip components.
1.11.2 Parameter Setting
Figure 1-32 Black/White
Parameter Description
Lighting
Select TopLight to inspect solder paste.
Algorithm Select Black/White.
Upper Level[0-255],
Lower Level[0-255]
Calculates a value intermediate between OK sample value and NG sample
value. If OK sample value is smaller than NG sample value, enter intermediate
value in Upper Level eld and 0 in Lower Level eld. If NG sample value is
smaller than OK sample value, enter 255 in Upper Level eld and intermediate
value in Lower Level eld.
Option[0-16]
Enter 0.
Shift[V1-V8]
Set the OK range. The maximum value is 100 in Upper eld and minimum value
is 0 in Lower eld.
Memorize to -
Upper, Lower
Set OK range. The maximum value of Upper is 100 and minimum value of Lower is 0.
Sample
Shows the percentage of the speci ed brightness level in the inspection window.
The graph in the lower
right side of the dialog
The Histogram of Luminance bar graph shows the number of pixels of every
bright level. Green area is the speci ed area by Upper Level and Lower Level.
The sample Value shows upper limit and lower limit.
Table 1-12 Parameter of Black/White
III-29
Programming Manual
Part III Inspection Algorithm
1.11.3 Setting Procedure
Step1: Select TopLignt from the Lighting drop-down list.
Step2: Adjust the Black/White window position to surround the solder llet.
Step3: Enter values in the Upper eld and the Lower eld.
NOTE
100 is for the Upper eld and 60 is for the Lower eld as a rough guide.
Step4: Make sure that the sample value is in the OK range. If it is out of the OK range, adjust values
in Upper Level and Lower Level.
CAUTION
Inspection windows are created at either end of the chip component after auto
deployment of chip component.
NOTE
The percentage of the speci ed brightness level in the inspection window is
displayed as a sample value.
NOTE
Press the black-white button on the right side of Sample (refer to the red circle in
Figure 1-32). The OK area will be colored in gray.

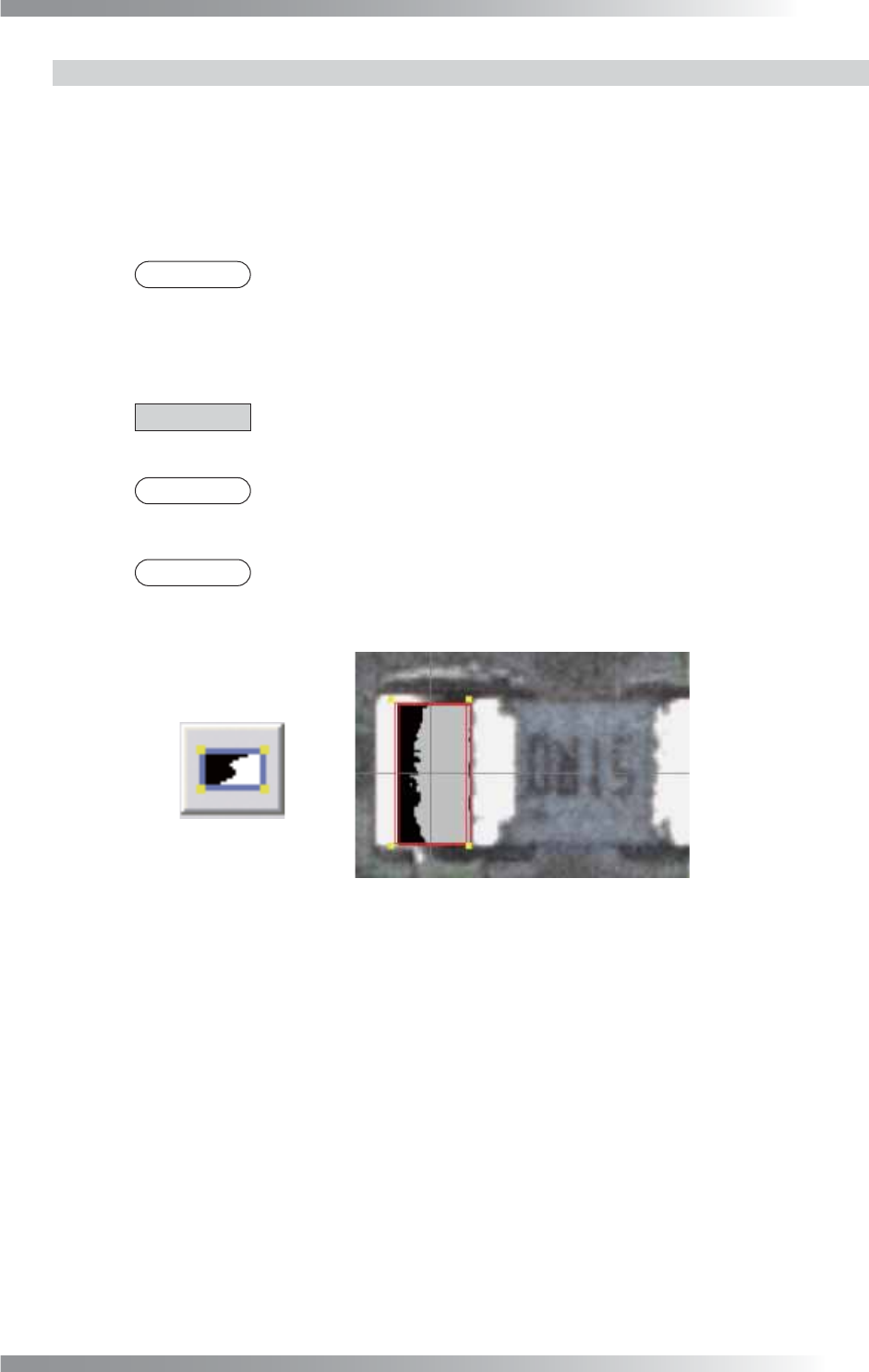

Figure 1-33 OK Range
Step5: Enter the appropriate vector into the Shift eld by selecting from V1 to V8 according to the
vector used in Memorize to in the Adjust window.
Step6: Press Inspect. Make sure that the inspection is completed properly.
