Step10: CAD data is displayed. Specify lines contain the component data such as names or coordinates of
components.
CAUTION
The text-box is case-sensitive.
Figure 1-7 Select Lines of Component Data
Item Description
First line is the title
If the fi rst line of component data defi ned each column, check First line is the title.
First line is
If specifying the fi rst line of component data, check First line is.
Last line is If specifying the last line of component data, check Last line is.
the line
and that includes
If specifying the line which is including words entered in the text-box, check the line
and that includes.
the next(prev.) of the line
and that includes
If specifying the next (previous) line of the line which is including words entered in
the text-box, check the next(prev.) of the line and that includes.
the line
and that starts with
If specifying the line that starts with the entered words in the text-box, check the
line and that starts with.
the next(prev.) of the line
and that starts with
If specifying the next (previous) line of the line that starts with the entered words in
the text-box, check the next(prev.) of the line and that starts with.
Component data block has
invalid lines
If component data have the line that does not include component information, check
Component data block has invalid lines. The specifi ed line becomes invalid line.
that include
If specifying the line which is including words entered in the text-box, check the line
and that includes.
that start with
If specifying the line that starts with the entered words in the text-box, check the
line and that starts with.
that don’t include
If specifying the line which is not including words entered in the text-box, check that
don’t include.
that don’t start with
If specifying the line that does not start with the entered words in the text-box,
check that don’t start with.
Select invalid lines by
line No.
If specifying the line that is not component data, check Select invalid lines by line
No.. As the particular line is specifi ed with this function, the user defi ne format
might be inapplicable to other CAD data.
Select/Unselect the clicked line
If specifying clicked line, check Select/Unselect the clicked line.
Select the lines till the clicked line
If specifying from the top line to the clicked line, check Select the lines till the clicked line.
Reference Data CAD data is displayed in another dialog.
Table 1-3 Description of Parameters
II-6
Programming Manual
Part II Inspection Data
CAD
Data
Board+
BoardSize_X,220.000
BoardSize_Y,150.000
Component+ (Component data line always starts from the following line of Component+)
Num,REF,Macro,Lib,X,Y,Theta,Sub,Flg
(The title line should be also considered as line of component data)
1,MARK2,IDMARK,IDMARK-1,6.577,-143.371,0,1,98
2,MARK1,IDMARK,IDMARK-1,206.920,-9.703,0,1,98
…
Settings
Check First line is.
Enter Component+ in the text-box. Check the next of the line and that includes.
Check First line is the title.
Table 1-4 Example 1
CAD
Data
BSIZEX150000Y300000
ORX5000Y5000
C”R101”X101223Y050234T090 (Component data always starts by C)
C”C202”X059526Y189256T270
…
C”IC5”X033564Y253654T000
END (The last line is not component data)
Settings
Check First line is.
Enter C in the text-box. Check the line and that starts with.
Check Last line is.
Enter C in the text-box. Check the line and that starts with.
Table 1-5 Example 2
CAD
Data
…
374,U35,DS90LV031ATM,SOP8PIN,152.467,-27.459,90,1,2
(The line of component data always include
“
,
”
)
375,U35,DS90LV031ATM,SOP8PIN,152.467,-27.459,90,1,2
<PAGE4> (The line which is not component data exists and it does not include “,”.)
376,U4,TL7705ACPS,SOP4PINS,36.094,-99.379,180,1,1
377,U5,TL7705ACPS,SOP4PINS,172.382,-101.121,0,1,2
…
Settings
Check Component data block has invalid lines.
Enter “,” in the text-box. Check that donʼt include.
Table 1-6 Example 3
Step11: Make sure that all lines of component data are highlighted in white and other lines in gray.
Press Next.
NOTE
If the title line is specifi ed, the title line is highlighted in blue.
II-7
Programming Manual
Part II Inspection Data
Step12: The lines specifi ed as component data in Step10 are displayed. Specify the defi nition type to
classify the data according to the type such as names or coordinates of components.

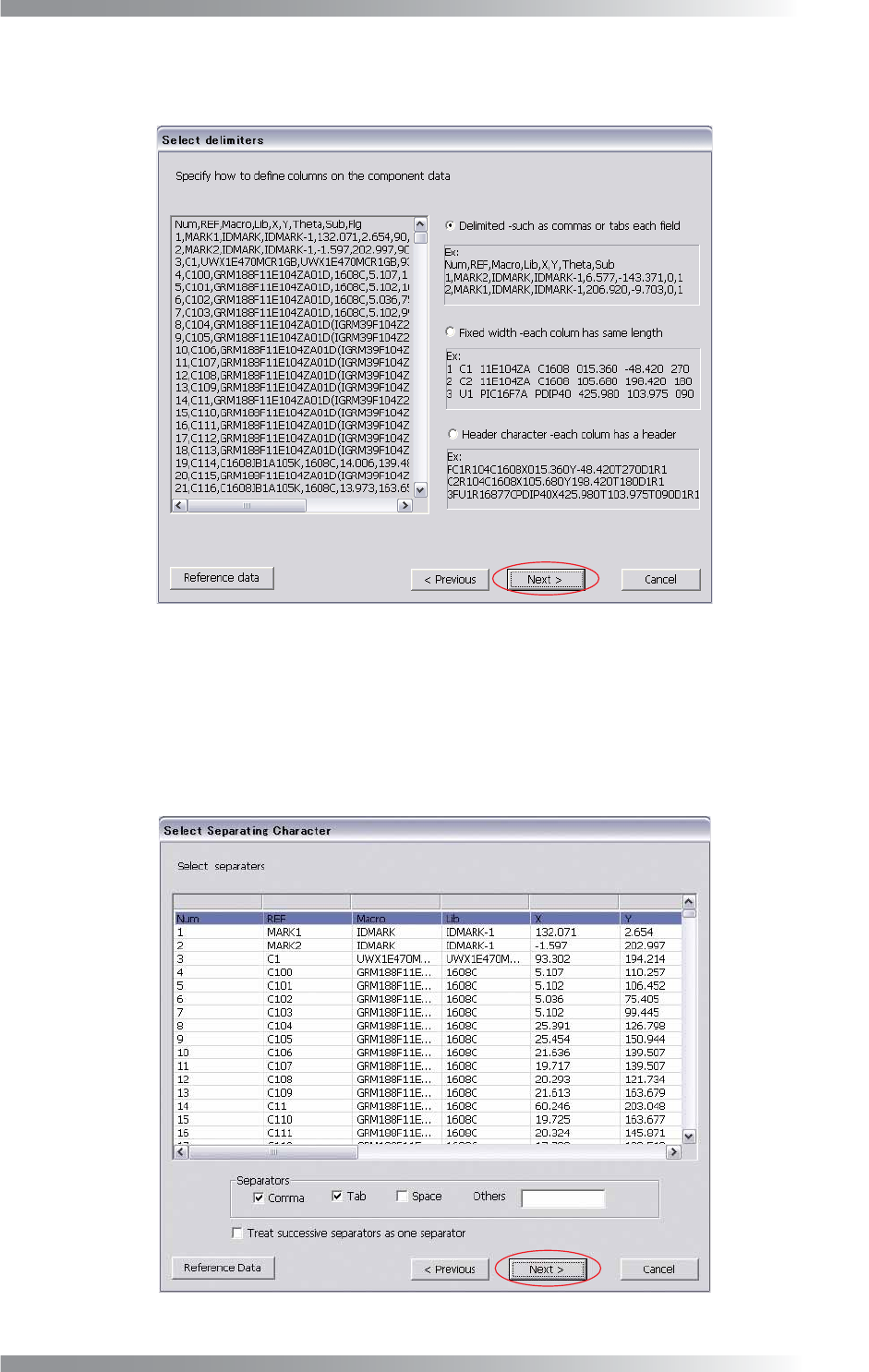

Figure 1-8 Select Delimiters
Delimited (such as commas or tabs each fi eld)
Check Delimited in Figure 1-8 and press Next if parameters are separated by comma, tab, or
space. Check the item of Separators in Figure 1-9. Each parameter is automatically separated.
Check Treat successive separators as one separator if more than one space or tab are
contained. After all the settings are completed, press Next.
Figure 1-9 Delimited (such as commas of tabs each fi eld)
