III-29

Programming Manual

Part III Inspection Algorithm

1.11.3 Setting Procedure

Step1: Select TopLignt from the Lighting drop-down list.

Step2: Adjust the Black/White window position to surround the solder ﬁ llet.

Step3: Enter values in the Upper ﬁ eld and the Lower ﬁ eld.

NOTE

100 is for the Upper ﬁ eld and 60 is for the Lower ﬁ eld as a rough guide.

Step4: Make sure that the sample value is in the OK range. If it is out of the OK range, adjust values

in Upper Level and Lower Level.

CAUTION

Inspection windows are created at either end of the chip component after auto

deployment of chip component.

NOTE

The percentage of the speciﬁ ed brightness level in the inspection window is

displayed as a sample value.

NOTE

Press the black-white button on the right side of Sample (refer to the red circle in

Figure 1-32). The OK area will be colored in gray.

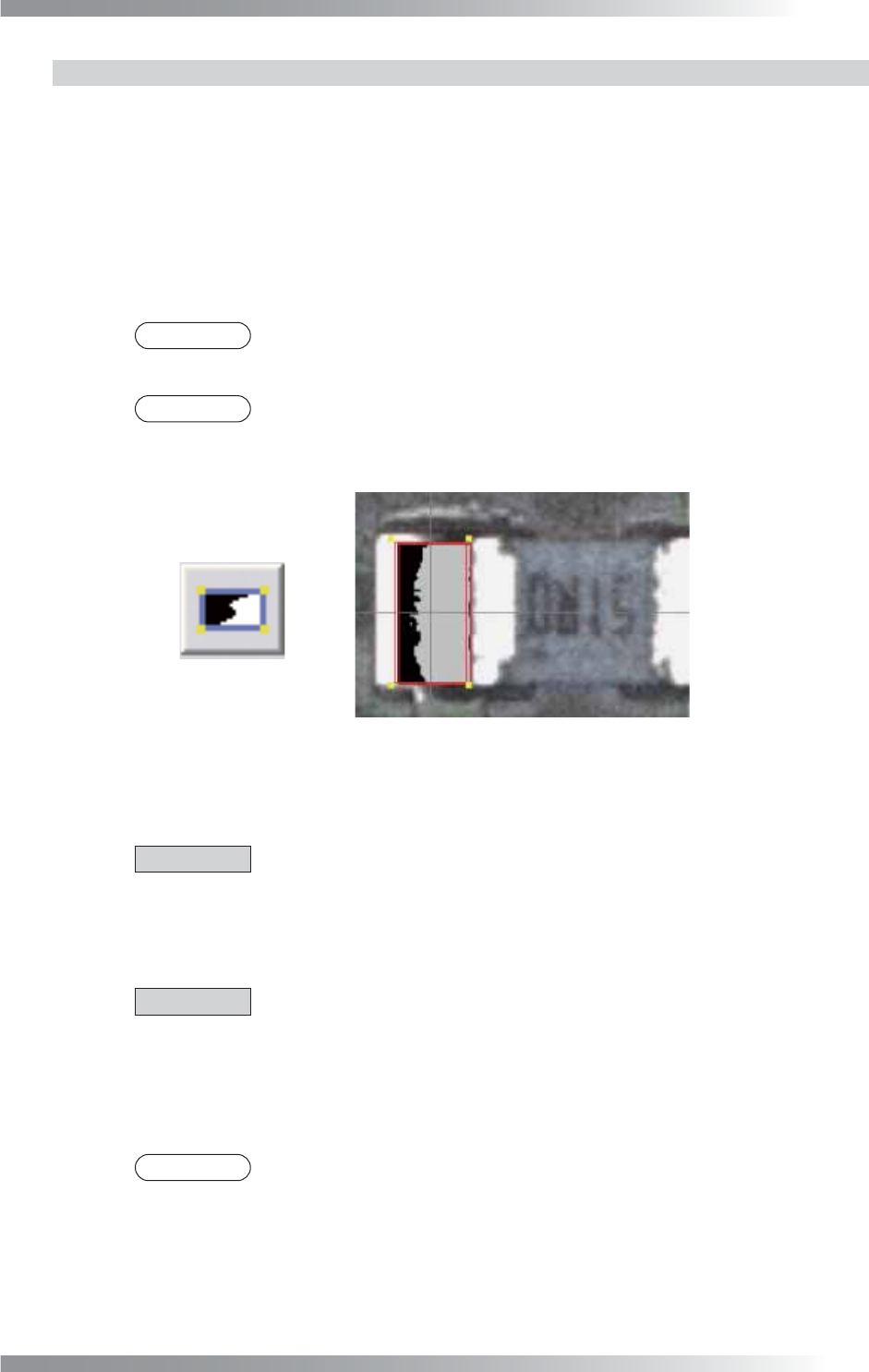

Figure 1-33 OK Range

Step5: Enter the appropriate vector into the Shift ﬁ eld by selecting from V1 to V8 according to the

vector used in Memorize to in the Adjust window.

Step6: Press Inspect. Make sure that the inspection is completed properly.

III-30

Programming Manual

Part III Inspection Algorithm

1.11.4 Algorithm BrightLevel

BrightLevel algorithm is available for components which brightness level are quite-variable.

Black/White algorithm calculates the percentage of the speciﬁ ed brightness level in the inspection window.

BrightLevel algorithm inspects the brightness level which accounts for the speciﬁ ed percentage.

Figure 1-34 BrightLevel

Parameter Description

Lighting

Select an appropriate lighting according to the algorithm which the bright level is used.

(e.g., Select TopLight if the threshold of BrightLevel is used with Black/White for

solder inspection.)

Algorithm Select BrightLevel.

Bright[%],

Dark[%]

Enter an arbitrarily value in Bright and 0 in Dark to specify percentage of a brighter

area in an inspection window. Enter 0 in Bright and an arbitrarily value in Dark to

specify percentage of a darker area in an inspection window.

(e.g., If using Black/White in an inspection window and percentage of a bright area is

70% and percentage of a dark area is 30%, enter 70 to Bright and 0 to Dark, or enter

0 to Bright and 30 to Dark.)

Option Enter 0.

Shift[V1-V8]

Enter the appropriate vector by selecting from V1 to V8 according to the vector used

in the Memorize to ﬁ eld in the Adjust window. Enter 0 in Shift if the threshold of

BrightLevel is used for misalignment correction.

Memorize to

appropriate parameter if other algorithms use the threshold of BrightLevel (any

values from M1 to M8 can be used to register values).

Upper, Lower

Enter 255 in Upper and 0 in Lower.

Sample

Shows a brightness level which takes a speciﬁ ed percentage of an area if

Black/

White is used.

Table 1-13 Parameter of BrightLevel

III-31

Programming Manual

Part III Inspection Algorithm

1.11.5 BrightLevel Setting Procedure

Step1: Select the inspection window which the BrightLevel result needs to be applied (Black/

White is taken as an example in this section). Right-click the window, select Copy and

change the Algorithm to BrightLevel.

Step2: Enter an arbitrarily value in Bright and 0 in Dark to specify the percentage of the brighter

area in the inspection window. Enter 0 in Bright and an arbitrarily value in Dark to specify

the percentage of the darker area in the inspection window.

NOTE

Display the brightness level which accounts for the speciﬁ ed percentage of an area

when Black/White is used as a sample value.

NOTE

Select Black/White as Algorithm and press the black-white button in the right side

of Sample. The brightness level in OK range will be colored in gray. Use the image

as a rough guide.

Figure 1-35 OK Range

Step3: Enter the appropriate vector into the Shift ﬁ eld by selecting from V1 to V8 according to the

vector used in the Memorize to ﬁ eld in the Adjust window.

CAUTION

Do not enter any value into the Shift ﬁ eld when using the result of BrightLevel for

misalignment correction.

Step4: Enter M1 into the Memorize to ﬁ eld.

CAUTION

Any value from M1 to M8 is available. Enter it in the appropriate ﬁ eld to reﬂ ect the

result to other algorithms.

Step5: Enter M1 into the appropriate ﬁ eld of an algorithm which requires the BrightLevel result.

NOTE

In case the inspection result of BrightLevel is used for the solder paste inspection of

a chip component, enter M1 in Upper Level or Lower Level depending on the

brightness level.

Step6: Press Inspect. Make sure that the inspection is completed properly.
