IV-10
Programming Manual
Part IV Option Setting
Step4: Select SideCheck from the Type drop-down list.
Figure 1-13 SideCheck
Step5: Enter SIDECHECK into the Macro text-box.
Step6: Make the inspection data so OK is reported on the side A while NG is reported on the side
B in the inspection.
Area: On the silk-print
(B-side, the same area is the green resist)
Algorithm: Missing by ColorXY
Figure 1-14 Example of inspection data
IV-11
Programming Manual
Part IV Option Setting
2 Functions Selectable from Edit on the Menu-bar
2.1 Search
2.1.1 Search Function
A component, library, or macro can be searched.
Select Edit > Search from the menu-bar. The dialog shown in Figure 2-1 appears.
Figure 2-1 Search Data
Item Description
Refresh the List
Refreshes the search list.
Inspect Components in the List
Inspects components in the search list.
Inspect the Board Inspects all components on a PCB.
Find
Searches a component by its name.
Output CSV
Outputs a list in CSV format.
Table 2-1 Operation
Item Description
From File
Loads a stored image.
Table 2-2 Load Image

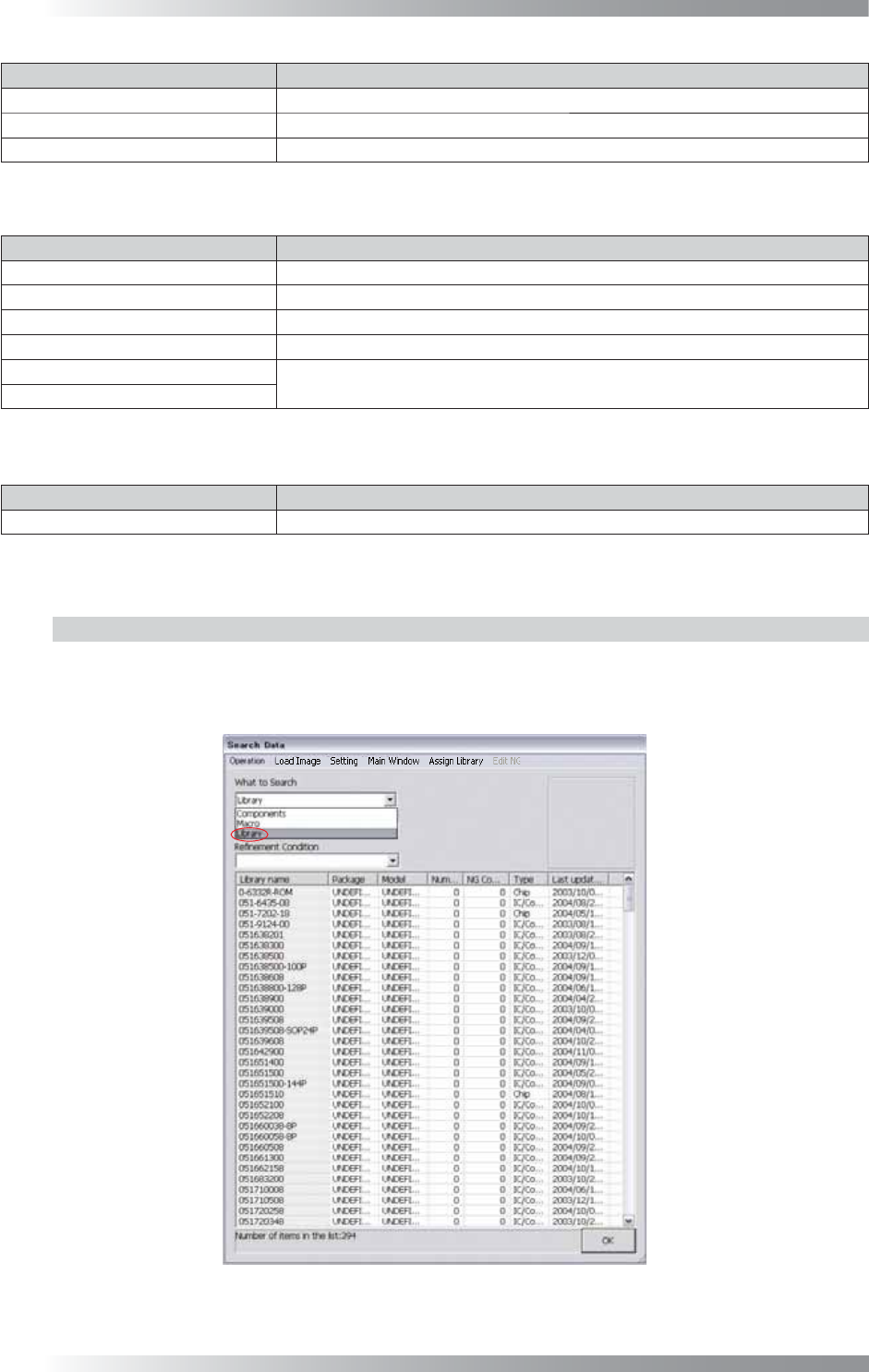

IV-12
Programming Manual
Part IV Option Setting
Item Description
Behavior when Double Clicked
Select an action taken when double-clicked.
Commonly-used Settings Displays frequently used functions in the search list.
Histories
Displays setting histories.
Table 2-3 Setting
Item Description
Select Component of the Main Window
Searches the component selected on the screen from the search list.
Point the Component Displays the component selected in the search list.
Whole Map Displays the PCB in the full-screen mode.
Enlarged Map Displays the PCB in the zoom mode.
Enlarge
Changes the zoom level.
Reduce
Table 2-4 Main Window
Item Description
Assign Library Assigns a library to the selected component.
Table 2-5 Assign Library
2.1.2 Inspection Data Debug
Inspection data can be debugged in the search screen.
Step1: Select Library from the What to Search drop-down list.
Figure 2-2 Library
