III-35
Programming Manual
Part III Inspection Algorithm
Parameter Description
Lighting Select TopLight.
Algorithm Select LiftedLead.
Length, Width
Size of inspection window.
The value is automatically changed after the inspection window is re-sized.
Shift[V1-V8]
Enter the appropriate vector. Any value from V1 to V8 is available.
Select the vector according to the Memorize to fi eld of the Adjust window.
Memorize to -
Table 1-15 Parameter 1 of LiftedLead
Parameter Description
Upper Level[0-255],
Lower Level[0-255]
Set the brightness level of no fi llet shape. Enter 255 in Upper Level.
Lower Level is lower brightness level defi ned as NG (Default is 90).
Enter the bigger value in Lower Level if the OK sample value is higher and the result is NG.
OK Upper,
Upper,
Lower
The result is the percentage of specifi ed brightness level as NG inside inspection
window.
The result will be NG if sample value is higher than OK Upper.
The result will be OK if sample value is in the range between Upper and Lower.
If sample value is in the range between OK Upper and Upper, pad end inspection will
be done. Refer to Table 1-17 Parameter 3 of LiftedLead (Pad Black/White) to see
detail settings of solder inspection at pad end area.
Default of OK Upper is 60, Upper is 10. Enter 0 in Lower.
Length
Width of the inspection area for solder inspection (surrounded by pink dotted line).
Search Range
If enlarging this value, it expands solder auto detection area (automatically detects
solders between two pink vertical lines) at a lead end.
Search Light,
Inspection Light
Both Search Light and Inspection Light are fi xed to TopLight.
Sample
Displays the percentage of the specifi ed brightness level inside the window (solder in
the pad lead area).
Table 1-16 Parameter 2 of LiftedLead (Solder Black/White)
Parameter Description
Upper Level[0-255],
Lower Level[0-255]
If it is diffi cult to inspect solder condition only in pad lead area, the pad end inspection
will be done.
In ideal solder joints form, the pad lead area is darker and pad end area is brighter
(refer to the left side of (c) Figure 1-37 Inspection of LiftedLead). Set the brightness
level of LiftedLead. Enter smaller value in Upper Level if the OK sample value is lower
and result is NG. Upper Level is the upper brightness level specifi ed as NG. The
default is 100. Enter 0 in Lower Level.
Upper, Lower
Tolerance of the sample value. The result will be OK, If sample value is in the range
between Upper and Lower. Default of Upper is 10. Enter 0 in Lower fi eld.
Length
Width of the inspection area for lead end inspection (surrounded by green dotted line).
Search Range
If enlarging this value, it expands solder auto detection area (automatically detects
solders between two green vertical lines) at a pad end.
Search Light,
Inspection Light
Search Light is fi xed to SideLight.
Inspection Light is fi xed to TopLight.
Sample
The percentage of the specifi ed level inside the window in the pad end area.
In case the inspection is done in the pad lead area, inspection at the pad end area is
skipped and -1 will be displayed.
Table 1-17 Parameter 3 of LiftedLead (Pad Black/White)
III-36
Programming Manual
Part III Inspection Algorithm
1.12.3 Setting Procedure
Step1: Select TopLight from the Lighting drop-down list.
Step2: Set the search range for the solder joint area. After changing the Search Range value in
Solder Black/White, press Inspect. Make sure that the pink dotted window is located on
the solder joint area.
Step3: Set the inspection area of the solder in the lead end. After changing the Length value in
Solder Black/White, press Inspect. Adjust the size of the pink dotted window.
Step4: Make sure that the OK Sample value in Solder Black/White is in the between Upper and
Lower. If OK Sample value is out of Upper and Lower, increase the value of Lower Level
in Solder Black/White.
NOTE
The percentage of the specifi ed brightness level as NG is displayed.
Step5: Set the search area for the pad end area. After changing the Search Range value in Pad
Black/White, press Inspect. Make sure that the green dotted window is located on the pad
end area.
Step6: Set the inspection area of the solder in the pad end. After changing the Length value in Pad
Black/White, press Inspect. Adjust the size of the green dotted window.
Step7: Make sure that the OK Sample value in Pad Black/White is in the between Upper and
Lower. If OK Sample value is out of the Upper and Lower range, increase the value of
Upper Level in Pad Black/White.
Step8: Enter the appropriate vector into the Shift fi eld. Any value from V1 to V8 is available.
Select the vector according to the Memorize to fi eld of the Adjust window.
Step9: Right-click the LliftedLead inspection item list and select Parameter Copy to copy the
parameter to other leads.
Step10: Press Jump and adjust the inspection window size of the lead on each corner.
Step11: Press Inspect. Make sure that the inspection is completed properly.
III-37
Programming Manual
Part III Inspection Algorithm

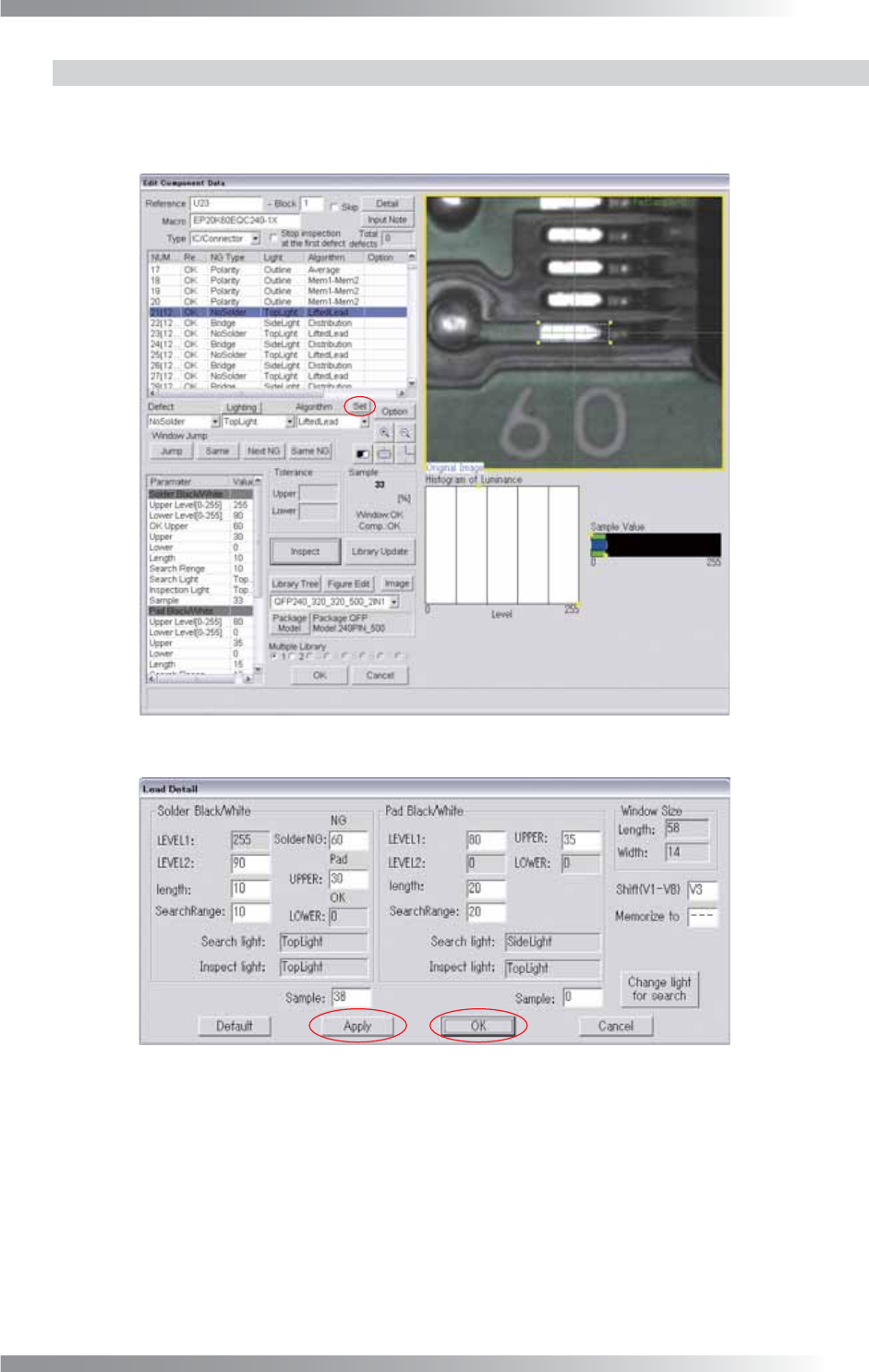

1.12.4 LiftedLead Setting Dialog
Press Set in the right side of Algorithm. The dialog shown in Figure 1-40 appears.
The parameter can be set in this dialog. Press Apply to apply the parameter.
After all the settings are completed, press OK.
Figure 1-39 LiftedLead Setting
Figure 1-40 Detail Settings of LiftedLead
