II- 22 Programming Manual Part II Inspection Data 1.2.2 Sub Mar k Setting Sub mark is a ﬁ ducial mark which is set to sub boards. A ﬁ ducial mark, made in Step 25 in Part II 1.1 Make Inspection Data on AOI Machine , is u…

II-21

Programming Manual

Part II Inspection Data

Step3: Select Edit > Block from the menu-bar.

Step4: Select a sub board number from Existing Block and press >>> to move it to Selected Block.

Figure 1-37 Set Copy Data 1

Step5: Enter the Distance X value obtained in Step 2 to X of Offset.

NOTE

If copying the sub board data to a different Y-axis point, enter the Distance Y value

to Y of Offset.

Figure 1-38 Set Copy Data 2

Step6: Enter 2 to X of Times and press OK. The Sub Board 1 data will be copied to the separate

X-axis point. Specify the coordinates in Offset.

NOTE

If copying the sub board data to a different Y-axis point, enter 2 to Y of Times.

NOTE

If 3 is entered to X of Times and OK is pressed, the Sub Board 1 data will be copied

to two separate X-axis points. The one is copied to the coordinates speciﬁ ed in Offset.

The other is copied to the coordinates calculated by doubling the Offset value.

II-22

Programming Manual

Part II Inspection Data

1.2.2 Sub Mark Setting

Sub mark is a ﬁ ducial mark which is set to sub boards.

A ﬁ ducial mark, made in Step 25 in Part II 1.1 Make Inspection Data on AOI Machine, is used for

adjusting misalignments of the entire PCB. On the other hand, a sub mark is used for adjusting bend

or deformation of sub boards. Set sub marks if there are sub boards on the PCB.

MARK1

MARK2

Sub Board 1 Sub Board 2

Sub Board 3 Sub Board 4

Figure 1-39 Sub Board

Step1: Left-click the center of the sub mark.

Step2: Select Edit > Add from the menu-bar.

Figure 1-40 Add

II-23

Programming Manual

Part II Inspection Data

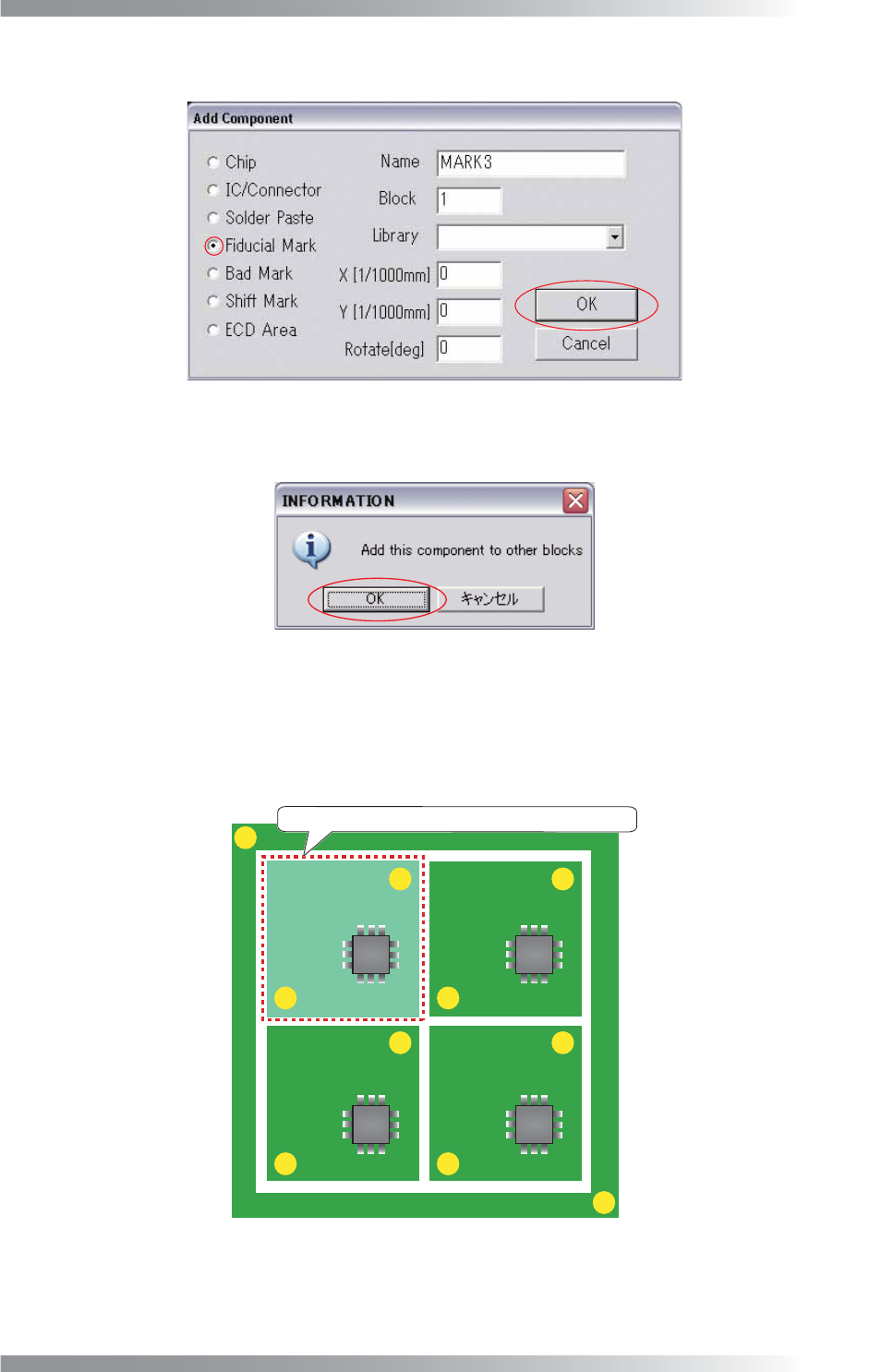

Step3: Check Fiducial Mark and press OK.

Figure 1-41 Fiducial Mark

Step4: The dialog shown in Figure 1-42 appears. Press OK.

Figure 1-42 Add this component to other blocks

Step5: Refer to Step 26 to 41 in Part II 1.1 Make Inspection Data on AOI Machine.

Step6: Surround the sub board with a frame by mouse-dragging.

MARK1

MARK2

Sub Board 1 Sub Board 2

Sub Board 3 Sub Board 4

Surround the sub board with a frame by mouse-dragging.

Figure 1-43 Surround the Sub Board
