II-8
Programming Manual
Part II Inspection Data
Fixed width (each column has same length)
Check Fixed width in Figure 1-8 and press Next if parameters are separated by fi xed width.
Adjust column widths by dragging the boundary of the header in Figure 1-10.
After all the settings are completed, press Next.
Figure 1-10 Fixed Width (each column has same length)
Header character (each column has a header)
Check Header character in Figure 1-8 and press Next if parameters are separated by a header
character. Enter header character of a parameter in the text-box of each column in Figure 1-11.
After all the settings are completed, press Next.
Figure 1-11 Header Character (each column has a header)
II-9
Programming Manual
Part II Inspection Data
Step13: Press each column header. Parameterʼs items are displayed as shown in Figure 1-12. Select a
parameter that matches with each column. After all the settings are completed, press Next.
Figure 1-12 Defi nition of Data
Step14: Specify conversion conditions for a coordinate and an angle. Select items from the drop-down list.
Multiplier is available if Other is selected from the drop-down list. If an offset angle is entered in
the Offset angle fi eld, the specifi ed amount of offset will be added to all the component rotation.
If Surface is specifi ed in Step13, enter an appropriate parameter in the Assign surface fi eld.
After all the settings are completed, press Next.
Figure 1-13 Data Conversion
II-10
Programming Manual
Part II Inspection Data
Step15: The part of CAD data which is not specifi ed as component data is displayed. Specify conditions to
extract PCB size and PCB thickness from data. These data will be automatically extracted from the
next time.

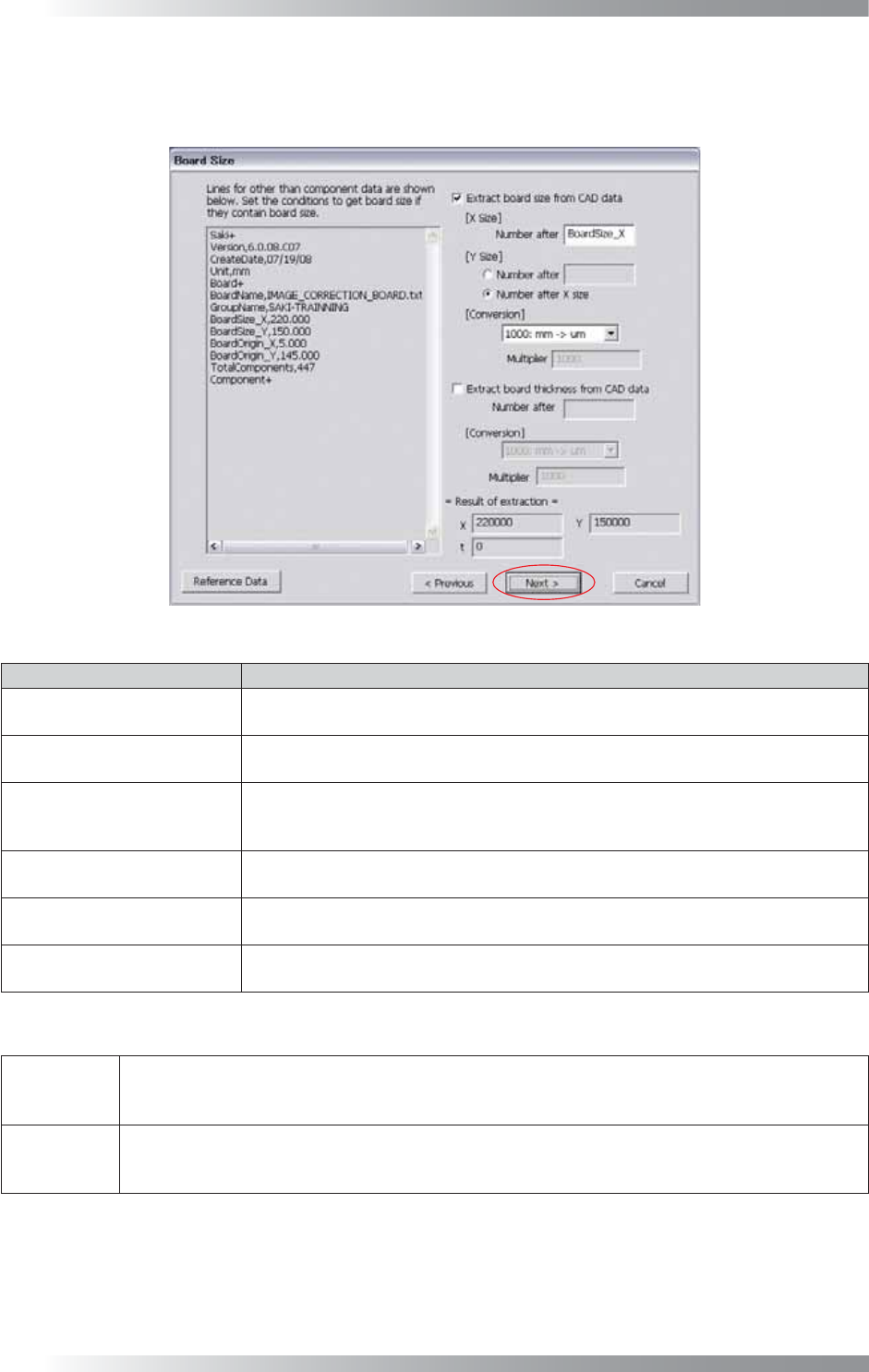

Figure 1-14 Extract PCB Size
Item Description
Extract board size from
CAD data
To extract lengths of the X direction and Y direction of a PCB, check Extract
board size from CAD data.
X Size
Enter the character preceding the number which shows the X direction length of a
PCB. The extracted value is displayed in Result of extraction.
Y Size
Enter the character preceding the number which shows the Y direction length of a
PCB. Check Number after X size if lengths of X direction and Y direction are
continuing. The extracted value is displayed in Result of extraction.
Conversion
Select conversion conditions from the drop-down list. Select Other from the drop-
down list and enter a multiplier in the Multiplier fi eld.
Extract board thickness from
CAD data
To extract PCB thickness, check Extract board thickness from CAD data.
Enter the character preceding the number which shows the PCB thickness.
Conversion
Select conversion conditions from the drop-down list. Select Other from the drop-
down list and enter a multiplier in the Multiplier fi eld.
Table 1-7 Description of Parameters
CAD Data
Board+
BoardSize_X,220.000
(Next value of BoardSize_X is always the length of the X direction of the PCB)
BoardSize_Y,150.000
(Next value of BoardSize_Y is always the length of the Y direction of the PCB)
Settings
Enter BoardSize_X in the X Size fi eld.
Enter BoardSize_Y in the Y Size fi eld (It can be substituted by checking Number after X size).
Select mm→μm from the drop-down list of Conversion.
Table 1-8 Example
