III-49
Programming Manual
Part III Inspection Algorithm
Parameter Description
Lighting
The selected lighting in this fi eld does not infl uence to the inspection result.
Algorithm Select IC_Solder3.
Shift[V1-V8]
Enter the appropriate vector. Any value from V1 to V8 is available. Select the vector
according to the Memorize to fi eld of the Adjust window.
Memorize to -
Table 1-23 Parameter 1 of IC_Solder3
Parameter Description
Inspection parameter
Select inspection parameter from the drop-down list to set. Refer to Part III 1.14.3
Setting Procedure.
Length Enter measured value in lead length.
Width Enter measured value in lead width.
Search range
Search range for edge between lead end area and pad lead area.
Fat solder OK
Judges heavy solder amount as OK.
Dark solder NG
Judges small solder amount as NG.
White body
It is useful to search component body which is brighter than lead base (e.g.,
Connectors).
Use dryjoint
Detects dryjoint.
Table 1-24 Parameter 2 of IC_Solder3
NOTE
When Inspect is pressed, a colored circle appears in the left side of the radio button
according to the inspection result. Red refers NG and white refers skip inspection.
1.14.3 Setting Procedure
Step1: Adjust the size of the inspection window to surround the lead base to pad end. Window
width should be same as pad width.
Lead Base Area
Gull Wing Area
Lead End Area
Pad Lead Area
Pad Center Area
Pad End Area
Body of IC Component
Figure 1-59 Inspection Window of IC_Solder3
III-50
Programming Manual
Part III Inspection Algorithm
Step2: Length and Width will be displayed in the upper right corner of the dialog if left-clicking a
lead base and dragging the pointer to opposite corner of the lead end. Enter the window
size shown in the upper right side of the dialog in Length and Width.
CAUTION
Do not measure the lead size in the selected inspection window, otherwise the
inspection window is misaligned.
㪉
㪈
Lead Base
Gull Wing Area
Lead End
Pad Lead Area
Pad Center Area
Pad End Area
Body of IC Component
Measure by another pin
Figure 1-60 Enter
Length
and
Width
Step3: It automatically locates the edge of lead end area and pad lead area by searching the edge
of lead end and solder. Select Search lead end from the Inspection parameter drop-down
list. Make sure that the pink dotted area includes both edges of the lead end area and
solder. If the search range is too small or too large, change the Search range value to
adjust search area size.
NOTE
The center of the search area is at the lead end area. Adjust the search area size
by changing the Search range value.
Lead length
Search range
Lead Base Area
Lead End Area
Pad Lead Area
Figure 1-61 Adjust Search range
Step4: Enter the brightness level difference between the lead end and pad lead area in the left side
of Sample. In the search area, the algorithm calculates maximum brightness level minus
minimum brightness level as the sample value. If the sample value is larger than the OK
range, the lead end will be located. Default is 10. Adjust parameters according to the solder
condition.
III-51
Programming Manual
Part III Inspection Algorithm

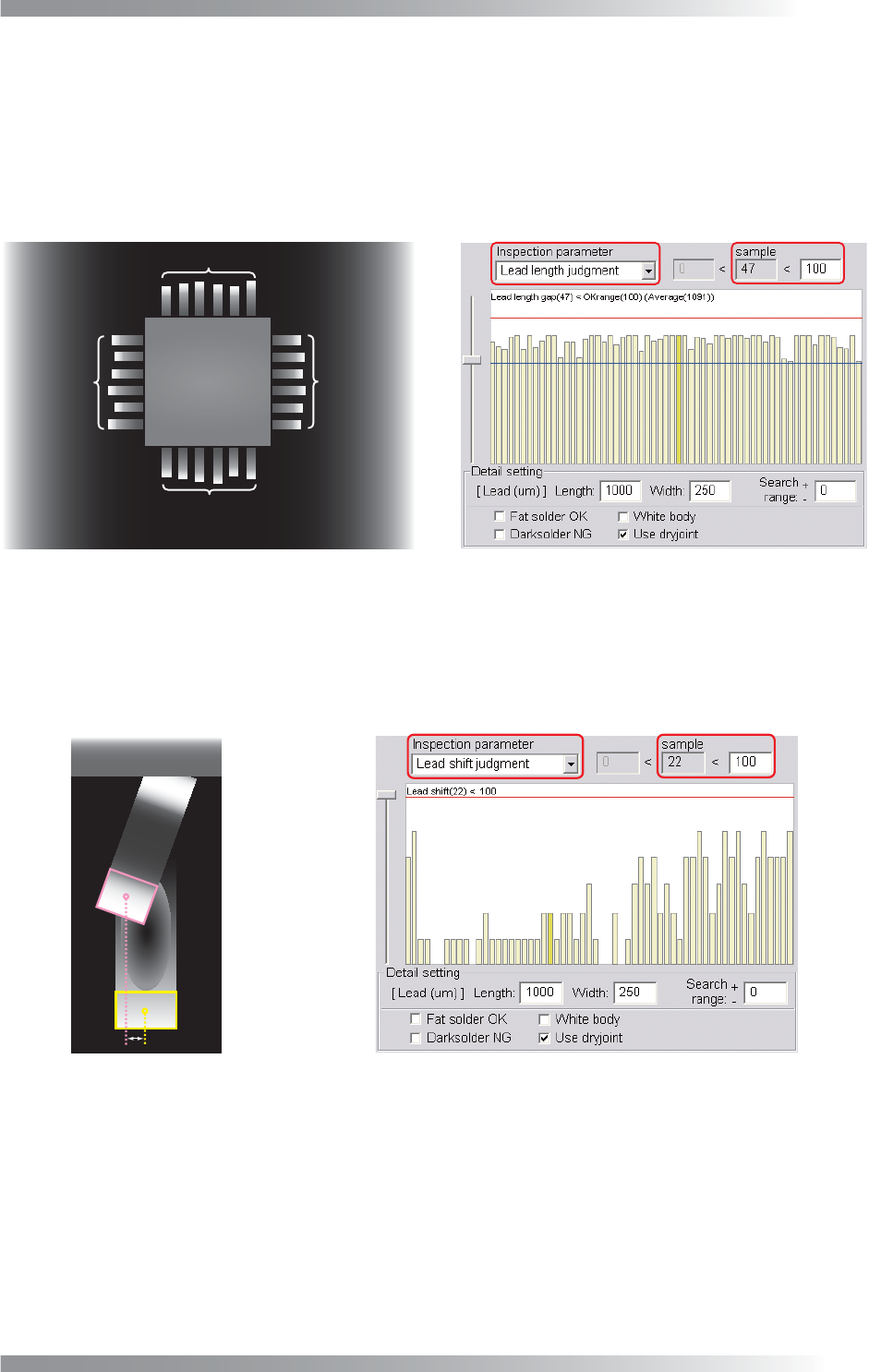

Step5: This is the parameter setting for lead length inspection. Select Lead length judgement from
the Inspection parameter drop-down list. It calculates the average value of leads length in
the same side of the component. The difference in amount between average length and
actual lead length is shown as the sample value. If the sample value is lower than OK range,
the result will be OK. The inspection logic is same as Part III 1.22 AS_Av_LeadLength.
Default is 100 [μm]. If necessary, change the value according to inspection accuracy.
Average value for leads length
Average
Average
Average
Average
in the same side of the body
- Selected lead length
Figure 1-62 Lead Length Judgement
Step6: This is the parameter setting for lead shift inspection. Select Lead shift judgement from the
Inspection parameter drop-down list. The shift amount from lead end area and pad end
area is shown as sample value. If the sample value is lower than OK range, the result will be
OK. Default is 100 [μm]. If necessary, change the value depends on inspection accuracy.
Lead End Area
Pad End Area
Figure 1-63 Lead Shift Judgement
