1.13 IC_Solder2

1.13.1 Inspection Overview

IC_Solder2 is the algorithm to inspect lead’s length and shift, solder condition and lifted lead in one

inspection window with high accuracy.

It automatically locates “inspection points” (lead end, lead base, pad end) on an IC component.

Inspection ﬂ ow is as following; lead length, lead shift, solder, copper, and lifted lead.

CAUTION

If lead length or lead shift inspection is NG, all the following inspections, solder,

copper and lifted lead inspections are skipped.

CAUTION

IC_Solder2 is not available for two lighting system machine. It is also not valid in

combination with Part III 1.22 AS_Av_LeadLength.

㪈

㪉

㪊

㪋

㪌

㪍

㪈

㪉

㪊

㪋

㪌

㪍

Lead Base Area

Gull Wing Area

Lead End Area

Pad Lead Area

Pad Center Area

Pad End Area

Figure 1-41 Inspection of IC_Solder2

1.13.2 Parameter Setting

Figure 1-42 IC_Solder2

III-39

Programming Manual

Part III Inspection Algorithm

Parameter Description

Lighting

The selected lighting in this ﬁ eld does not inﬂ uence to the inspection result.

Algorithm Select IC_Solder2.

Shift[V1-V8]

Enter the appropriate vector. Any value from V1 to V8 is available.

Select the vector according to the Memorize to ﬁ eld of the Adjust window.

Memorize to -

Table 1-18 Parameter 1 of IC_Solder2

Parameter Description

Lead length judgement

Sets inspection parameters for lead length inspection. For details, refer to Part

III 1.13.3 Setting Procedure Step5.

Lead shift judgement

Sets inspection parameters for lead shift inspection. For details, refer to Part III

1.13.3 Setting Procedure Step6.

Table 1-19 Parameter 2 of IC_Solder2 (Lead Inspection)

Parameter Description

No solder

Sets inspection parameters for solder inspection. For details, refer to Part III

1.13.3 Setting Procedure Step7.

Copper exposure

Sets inspection parameters for copper inspection. For details, refer to Part III

1.13.3 Setting Procedure Step8.

Table 1-20 Parameter 3 of IC_Solder2 (Solder Inspection)

Parameter Description

Pad end brightness

Sets inspection parameters for lifted lead inspection. For details, refer to Part III

1.13.3 Setting Procedure Step9.

Threshold

Sets inspection parameters for lifted lead inspection. For details, refer to Part III

1.13.3 Setting Procedure Step10.

Table 1-21 Parameter 4 of IC_Solder2 (Lifted Lead Inspection)

Parameter Description

Engineer Mode

Engineer Mode enables to set detailed settings for parameters.

To set parameters with bar charts, remove the check mark.

Lead length

Enter measured value in lead length.

Lead width

Enter measured value in lead width.

Range

Search range for an edge between a lead end area and a pad lead area.

This lead Displays measured lead length.

Fat solder OK

Judges heavy solder amount as OK.

Dark solder NG

Judges small solder amount as NG.

Use dryjoint Detects dryjoint.

White body

It is useful to search a component body which is brighter than a lead base.

Table 1-22 Parameter 5 of IC_Solder2 (Detail Setting)

NOTE

Check a radio button. The corresponding histogram appears in the lower right side

of the screen.

NOTE

When Inspect is pressed, a colored circle may appear on the left side of the radio

button for some inspecton results. Red refers NG and white refers skip inspection.

III-40

Programming Manual

Part III Inspection Algorithm

1.13.3 Setting Procedure

Step1: Adjust the size of the inspection window to surround the lead base to pad end. Window

width should be the same as pad width.

Lead Base Area

Gull Wing Area

Lead End Area

Pad Lead Area

Pad Center Area

Pad End Area

Body of IC Component

Figure 1-43 Inspection Window of IC_Solder2

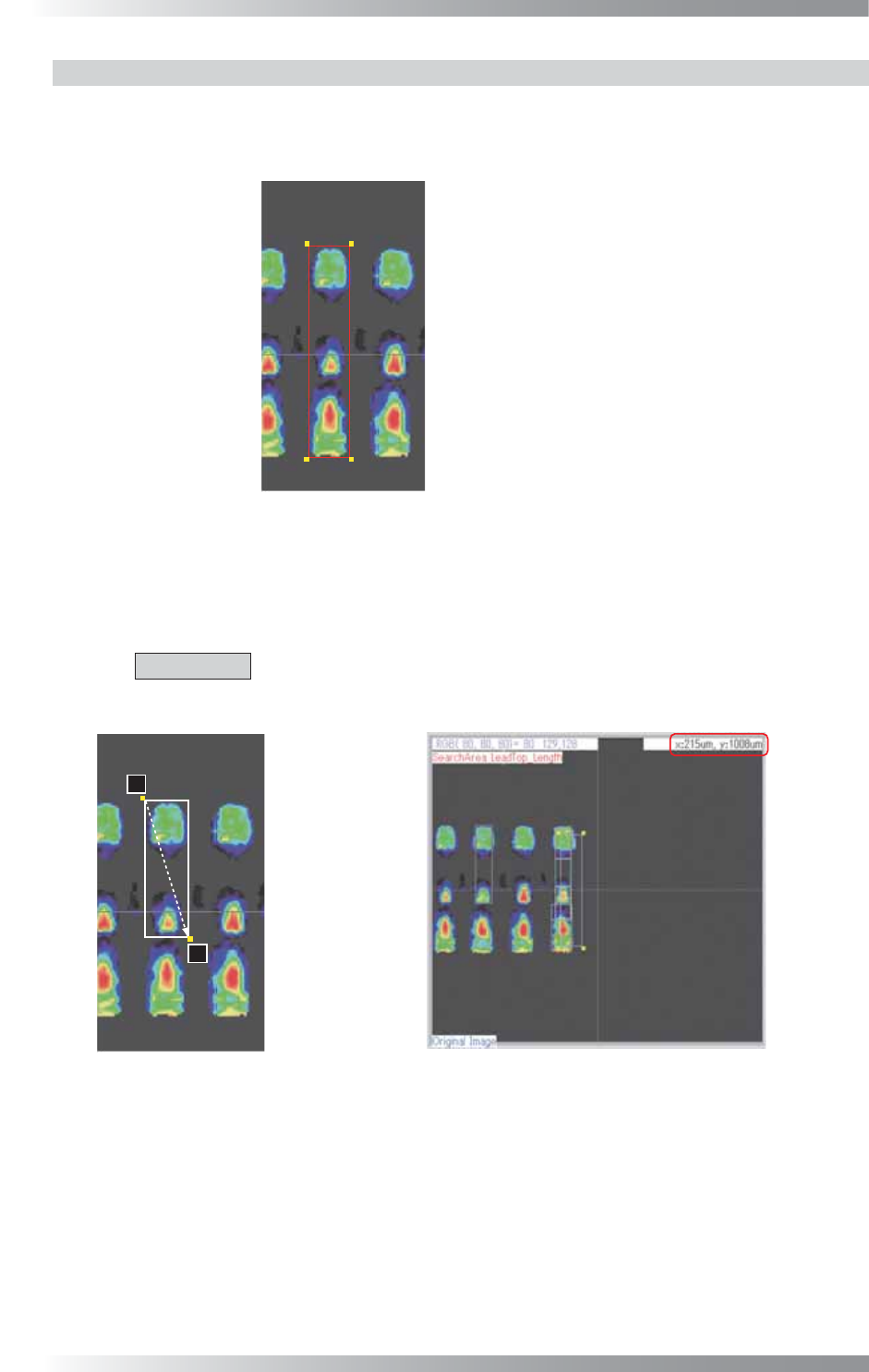

Step2: Lead length and width will be displayed in the upper right corner of the dialog if left-clicking

a lead base and dragging the pointer to opposite corner of the lead end. Enter the window

size shown in the upper right side of the dialog in Lead length and Lead width.

CAUTION

Do not measure the lead size at the lead of the selected inspection window,

otherwise the inspection window is misaligned.

㪉

㪈

Lead Base

Gull Wing Area

Lead End

Pad Lead Area

Pad Center Area

Pad End Area

Body of IC Component

Measure by another pin

Figure 1-44 Enter Lead Length and Lead Width
