IV - 9 Programming Manual Part IV Option Setting 1.4.2 Detecting Side A and Side B inspection data Step1: Left-click the point whose side A is OK while its side B is NG. Step2: Select Edit > Add from the menu-bar. Fig…
IV-8
Programming Manual
Part IV Option Setting
Step3: Press New button on the tool-bar or select File > New from the menu-bar.
Figure 1-9 New
Step4: Check Make Inspection Data for Side B and press Next.
Figure 1-10 Wizard 1
Step5: Make the side B inspection data by reference to Step3 and following steps in Part II 1.1
Make Inspection Data on AOI Machine.
IV-9
Programming Manual
Part IV Option Setting
1.4.2 Detecting Side A and Side B inspection data
Step1: Left-click the point whose side A is OK while its side B is NG.
Step2: Select Edit > Add from the menu-bar.
Figure 1-11 Add
Step3: Check Chip and press OK.
Figure 1-12 Chip
IV-10
Programming Manual
Part IV Option Setting
Step4: Select SideCheck from the Type drop-down list.
Figure 1-13 SideCheck

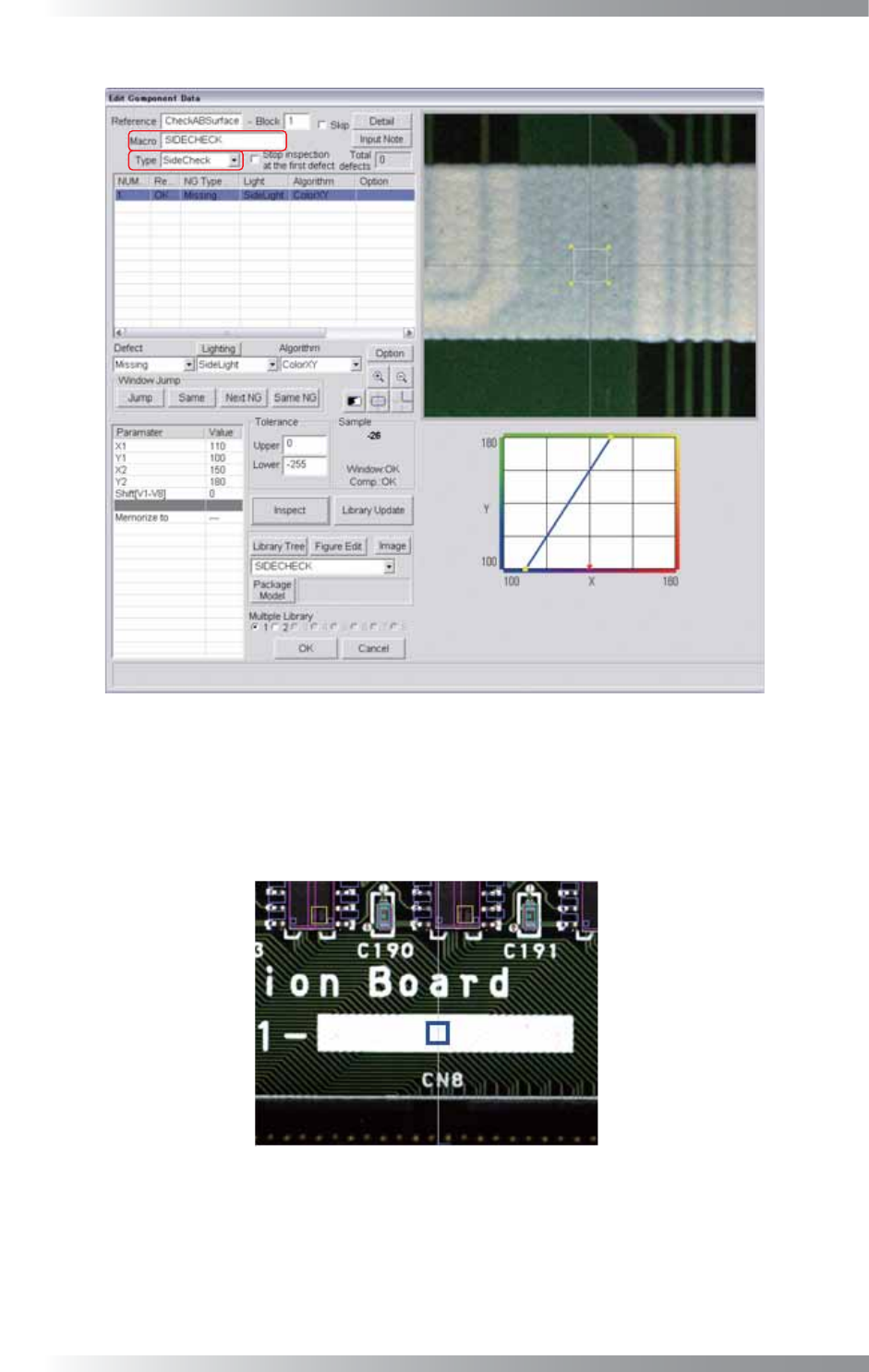

Step5: Enter SIDECHECK into the Macro text-box.
Step6: Make the inspection data so OK is reported on the side A while NG is reported on the side
B in the inspection.
Area: On the silk-print
(B-side, the same area is the green resist)
Algorithm: Missing by ColorXY
Figure 1-14 Example of inspection data
