Step9: Press Cut out. The selected image is displayed under Current Image. Enter the fi rst
character to the text-box in the right side of Char:.
Figure 2-6 OCR_Pro 5
Step10: Press Add Char to register the character and the image as a font added in Step7.
NOTE
To delete characters, select character from the list-box and press Del Char.
Figure 2-7 OCR_Pro 6
III-84
Programming Manual
Part III Inspection Algorithm
Step11: Press Disp Size, the window will be displayed again, and it to surround the second character.
Register the second character as follows Step9 and Step10. After the second character,
repeat the same procedure to register all characters.
Figure 2-8 OCR_Pro 7
Step12: All characters are registered. Press OK.
The dialog shown in Figure 2-10 appears. Press Yes.
Figure 2-9 OCR_Pro 8
Figure 2-10 OCR_Pro 9
III-85
Programming Manual
Part III Inspection Algorithm
Step13: Select the font added in Step7 from the User Defi ne drop-down list.

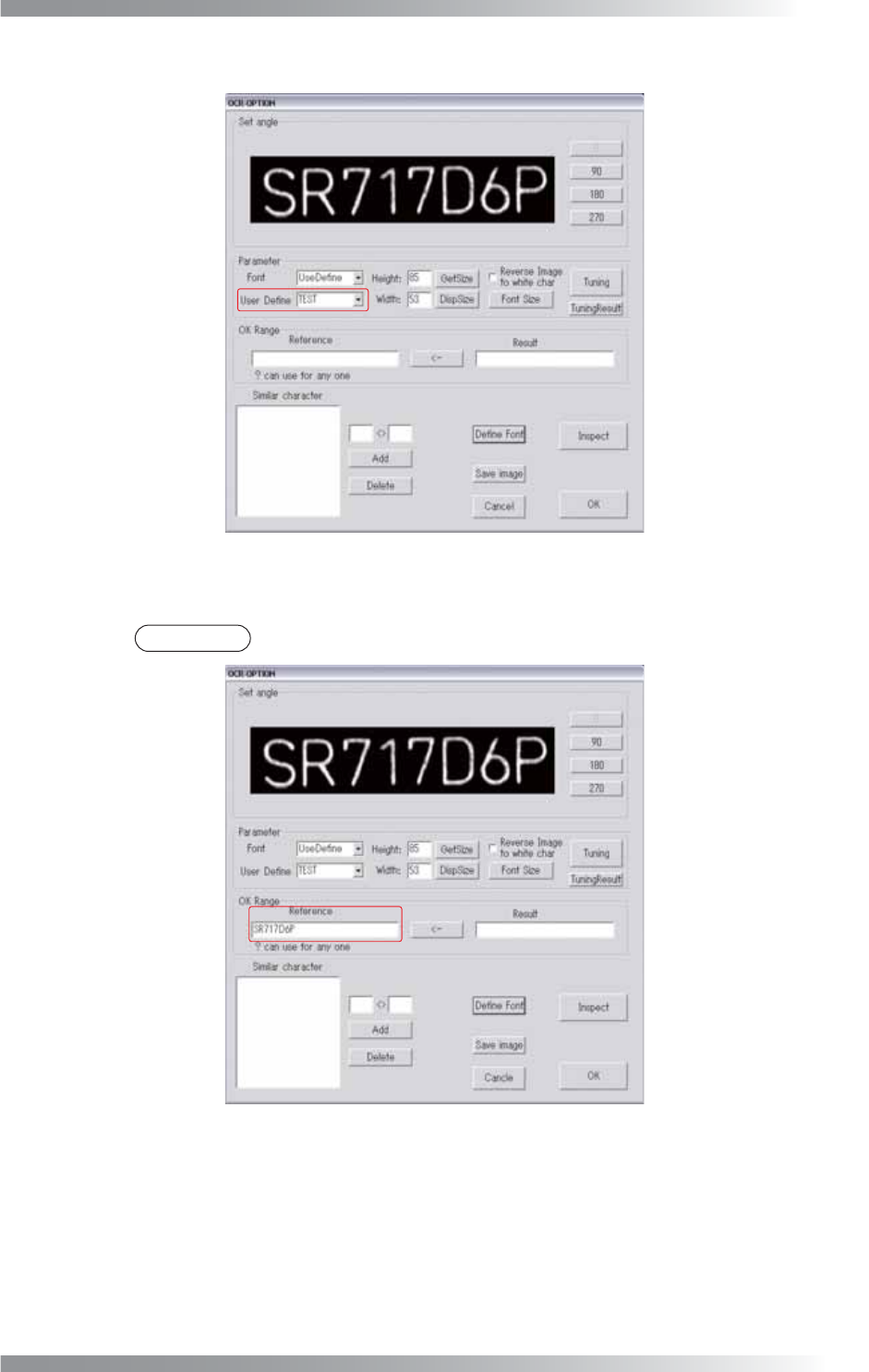

Figure 2-11 OCR_Pro 10
Step14: Enter all target characters in the Reference text-box.
NOTE
If “?” is entered, any character is judged OK.
Figure 2-12 OCR_Pro 11
