Step3: The dialog shown in Figure 5-19 appears.

Select the Inspection Selection setting from the Board Selection list-box and press Apply.

Figure 5-19 Apply

Step4: The dialog shown in Figure 5-20 appears. Press Yes.

NOTE

The item selected in Inspection Selection will be displayed after the PCB name.

Figure 5-20 Apply Settings

Figure 5-21 Inspection Selection Name

V-64

Programming Manual

Part V Inspection Data

5.6 Output Setting File for Inspection Selection

Inspection Selection settings of each inspection data can be output and saved as a text ﬁ le.

If using several machines, inspection selection settings of a machine can be applied to other machines by

reading this output ﬁ le.

5.6.1 Output Setting File for Inspection Selection

Step1: Select File > Select Data from the menu-bar.

Open the inspection data which Inspection Selection is applied.

Step2: Select Edit > Inspection Selection > Export data from the menu-bar.

Figure 5-22 Export Data

Step3: The dialog shown in Figure 5-23 appears. Enter the ﬁ le name.

Specify the directory to save and press Save.

Figure 5-23 Save

V-65

Programming Manual

Part V Inspection Data

5.6.2 Read Setting File for Inspection Selection

Step1: Select File > Select Data from the menu-bar.

Open the inspection data which Inspection Selection is applied.

Step2: Select Edit > Inspection Selection > Import data from the menu-bar.

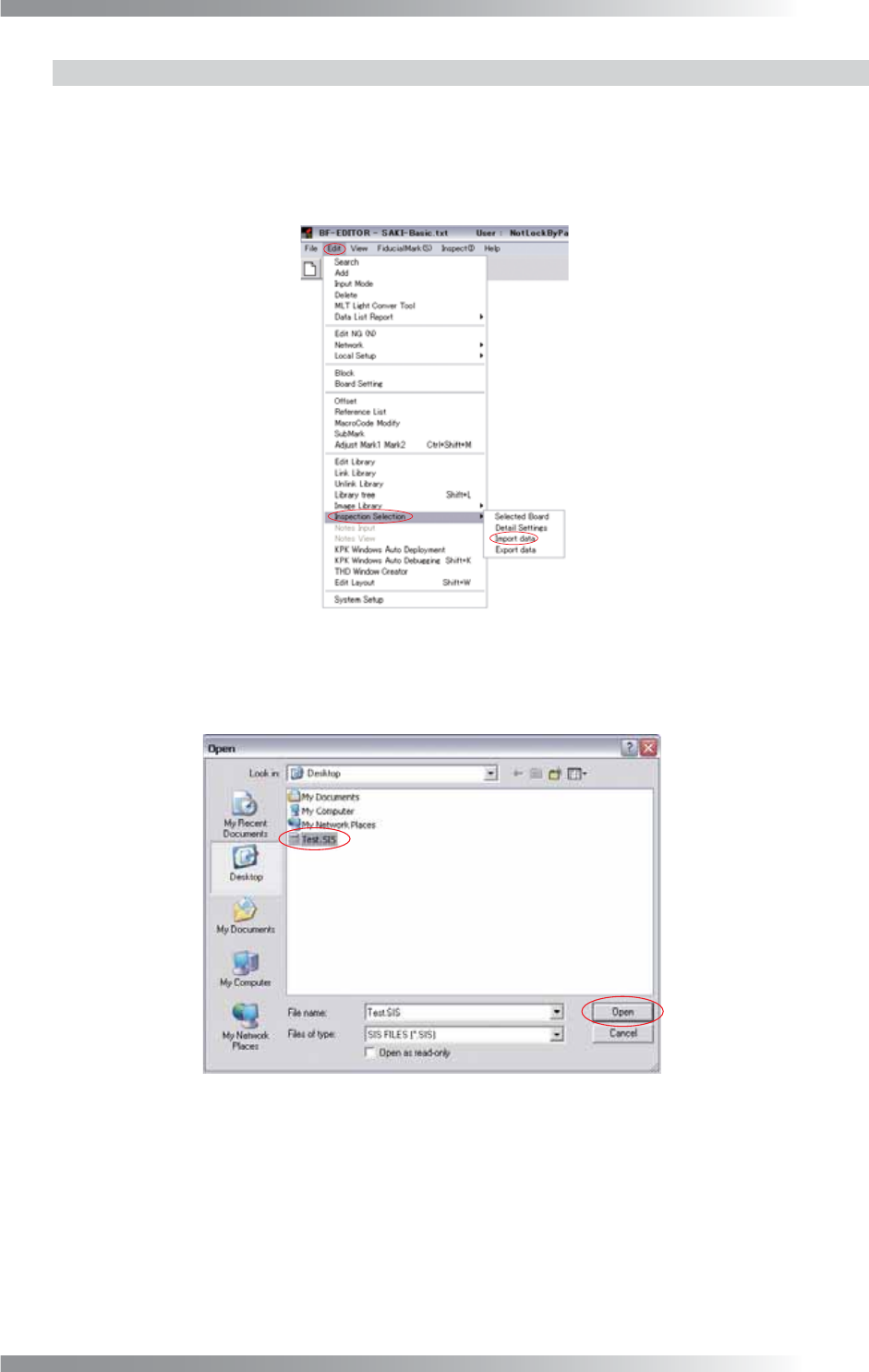

Figure 5-24 Import Data

Step3: The dialog shown in Figure 5-25 appears. Select the text ﬁ le output by Part V 5.6.1 Output

Setting File for Inspection Selection and press Open.

Figure 5-25 Open
