1.2 Sub Board Deployment and Submark

1.2.1 Sub Board Deployment

Here describes how to copy sub board data to another sub board.

The procedure for copying the data of Sub Board 1 to Sub Board 2 on a different X-axis point is

described below as an example.

Step1: Make sure of the distance to the target by the following procedure.

Select a component data on Sub Board 1 and move it to the same component data on

Sub Board 2 by mouse-dragging.

MARK1

MARK2

Sub Board 1 Sub Board 2

Sub Board 3 Sub Board 4

㻰㼕㼟㼠㼍㼚㼏㼑

Move a component data from sub board 1 by mouse-dragging.

Figure 1-35 Distance 1

Step2: The dialog shown in Figure 1-36 appears.

Make sure of the value of Distance X and press Cancel.

NOTE

If copying the sub board data to a different Y-axis point, make sure of the value of Distance Y.

Figure 1-36 Distance 2

II-21

Programming Manual

Part II Inspection Data

Step3: Select Edit > Block from the menu-bar.

Step4: Select a sub board number from Existing Block and press >>> to move it to Selected Block.

Figure 1-37 Set Copy Data 1

Step5: Enter the Distance X value obtained in Step 2 to X of Offset.

NOTE

If copying the sub board data to a different Y-axis point, enter the Distance Y value

to Y of Offset.

Figure 1-38 Set Copy Data 2

Step6: Enter 2 to X of Times and press OK. The Sub Board 1 data will be copied to the separate

X-axis point. Specify the coordinates in Offset.

NOTE

If copying the sub board data to a different Y-axis point, enter 2 to Y of Times.

NOTE

If 3 is entered to X of Times and OK is pressed, the Sub Board 1 data will be copied

to two separate X-axis points. The one is copied to the coordinates speciﬁ ed in Offset.

The other is copied to the coordinates calculated by doubling the Offset value.

II-22

Programming Manual

Part II Inspection Data

1.2.2 Sub Mark Setting

Sub mark is a ﬁ ducial mark which is set to sub boards.

A ﬁ ducial mark, made in Step 25 in Part II 1.1 Make Inspection Data on AOI Machine, is used for

adjusting misalignments of the entire PCB. On the other hand, a sub mark is used for adjusting bend

or deformation of sub boards. Set sub marks if there are sub boards on the PCB.

MARK1

MARK2

Sub Board 1 Sub Board 2

Sub Board 3 Sub Board 4

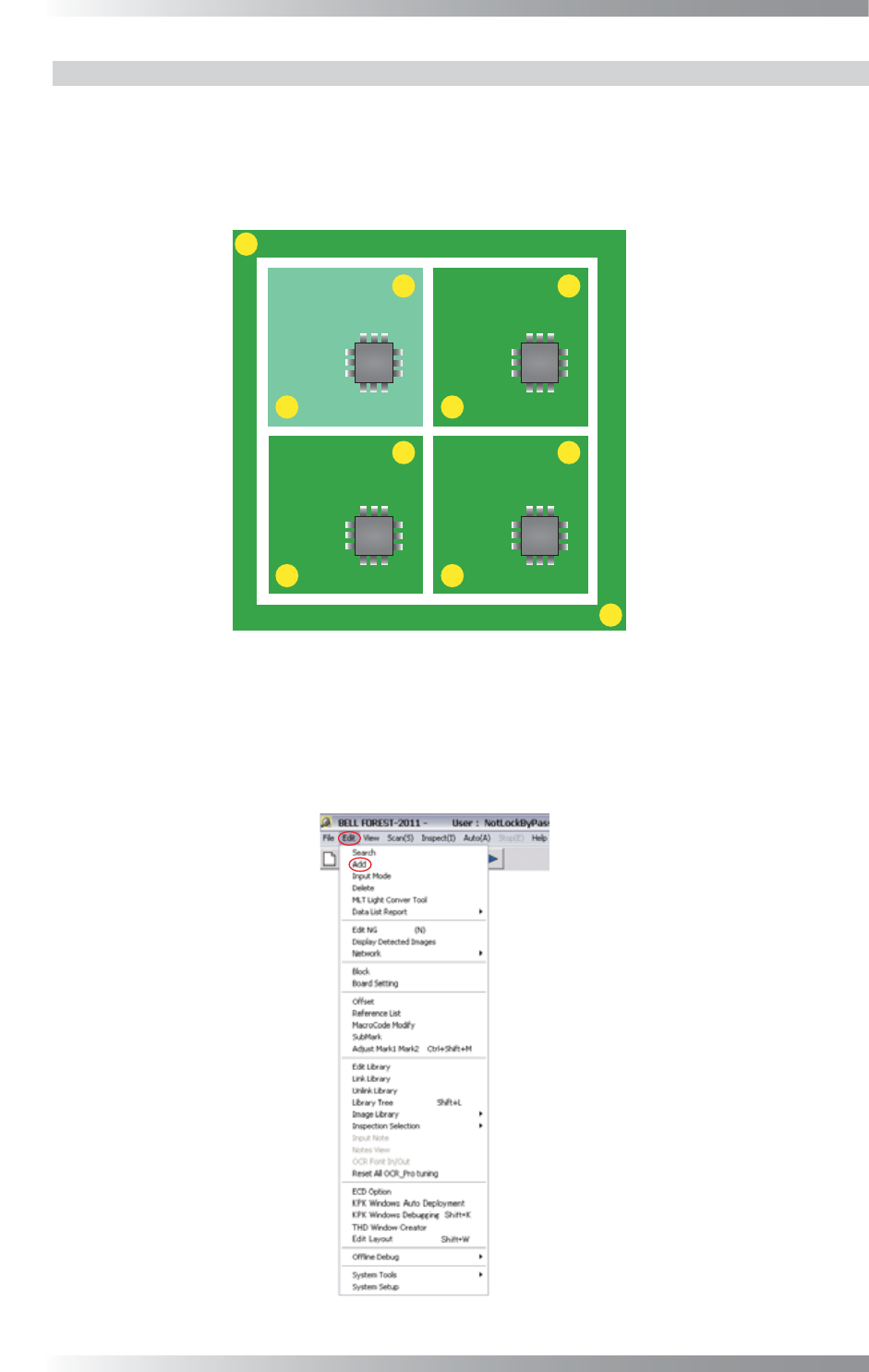

Figure 1-39 Sub Board

Step1: Left-click the center of the sub mark.

Step2: Select Edit > Add from the menu-bar.

Figure 1-40 Add
