III-54
Programming Manual
Part III Inspection Algorithm
Step11: If the fi rst inspection shown in Step9 is NG, the second inspection will be done. The
comparison brightness level in pad lead, pad center, and pad end area will be shown as
sample value. If solder is in good condition, the brightness level is darker in pad lead area
and brighter in pad end area. This inspection is separated into two steps. The comparison
of brightness level, the brightness level in pad end area minus pad center area and the
brightness level in pad end area minus pad lead area, is shown as sample value in fi rst
inspection. If the sample value is larger than Threshold, the result will be OK (Default is 0).
If either the brightness level in pad end area minus pad center area or the brightness level
in pad end area minus pad lead area is NG, the second inspection, the brightness level in
pad center area minus pad lead area, will be done. If the sample value is larger than
Threshold, the result will be NG. If necessary, change the value depends on the solder
condition. If Use dryjoint is checked, inspection procedure is changed. Refer to Step14.
㻝
㻞
㻟
Pad Center Area
Pad Lead Area
Pad End Area
Setting Value(Default is 0) < Pad End Area( ) - Pad Center Area( )
㻟
㻞
Setting Value(Default is 0) < Pad End Area( ) - Pad Lead Area( )
㻟
㻝
㻔㻝㻕㻌Calculate following equation. If the result will be NG, proceed to (2).
㻔㻞㻕㻌Calculate following equation. If the result will be NG, judged as lifted lead.
Setting Value(Default is 0) < Pad Center Area( ) - Pad Lead Area( )
㻞
㻝
Figure 1-68 Lifted Lead Inspection 2
III-55
Programming Manual
Part III Inspection Algorithm
Step12: If solder volume is extremely high, the brightness level in pad area is darker. In case to
judge high-volume-solder as OK, check Fat solder OK. If Fat solder OK is checked, the
lifted lead inspection is skipped. Also after copper exposure inspection, if the average
brightness level of pad lead, pad center and pad end area is lower than 100, the result will
be OK.
Fat Solder
Figure 1-69 Fat solder OK
Step13: If solder volume is extremely low, the solder brightness level in pad end area is darker than
pad center area. Check Dark solder NG if necessary. The inspection is done as following
steps, lead shift, lead bend, no solder, copper exposure, and lifted lead. If Dark solder NG
is checked, lifted lead inspection will be changed. After copper exposure inspection, the
average brightness level in pad lead, pad center, and pad end area is calculated. If the
sample value is lower than 100, the result will be NG. In this case, the lifted lead inspection
will be skipped.
Dark Solder
Figure 1-70 Dark solder NG
III-56
Programming Manual
Part III Inspection Algorithm

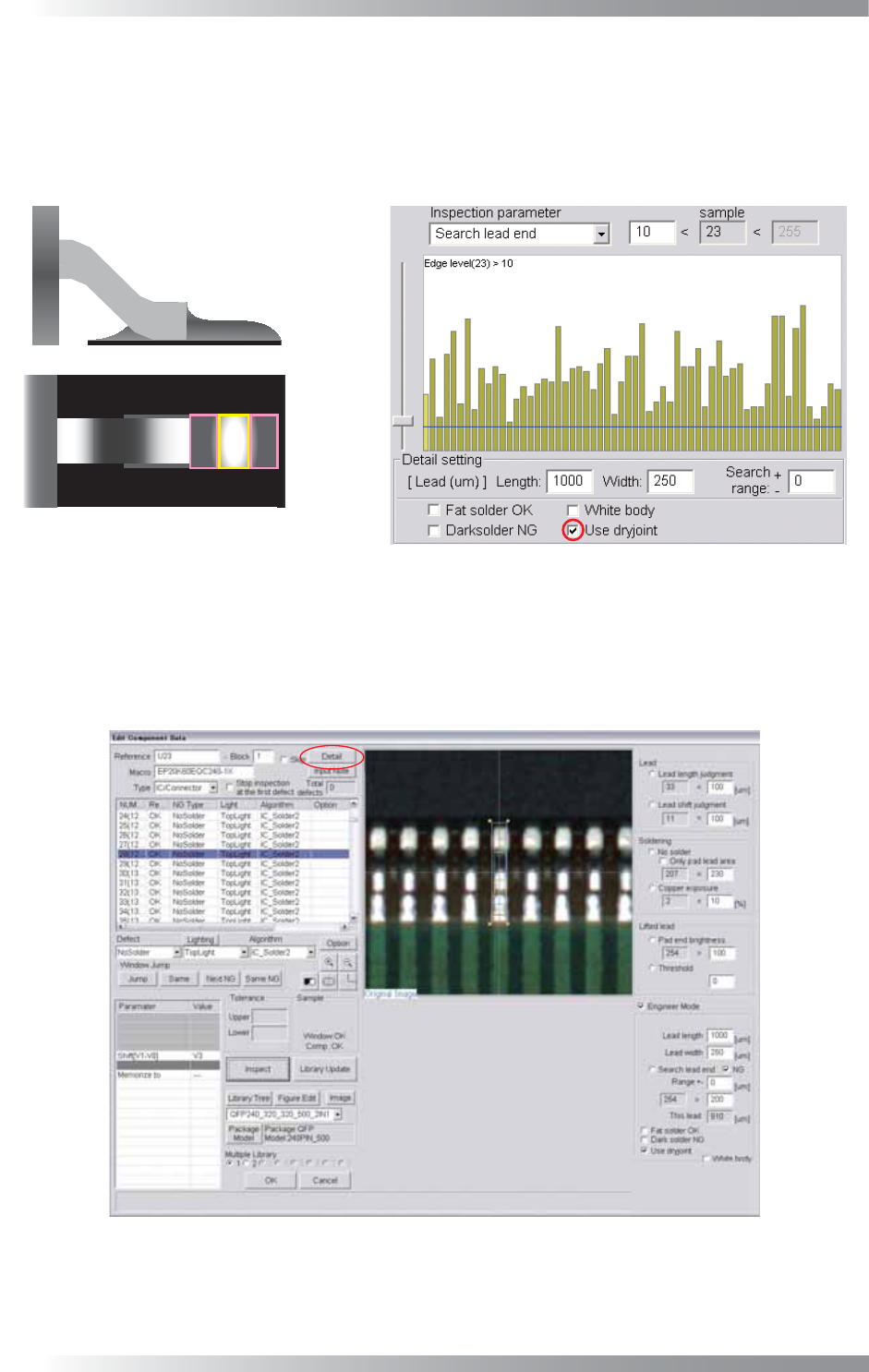

Step14: In case of dry joint, the brightness level in pad center area is brighter than pad lead and pad
end area. Check Use dryjoint if necessary. If Use dryjoint is checked and either of the
brightness level in pad end area minus pad center area or the brightness level in pad
end area minus pad lead area is failed, the result will be NG. In this case, the third
inspection, the brightness level in pad center area minus pad lead area, is skipped.
Dryjoint
Figure 1-71 Use dryjoint
Step15: Check White body in case the body is brighter than leads (e.g., Connectors).
Step16: If a number of leads is changed, press Detail shown in Figure 1-72. The dialog shown in
Figure 1-73 appears.
Figure 1-72 Detail
