III-78
Programming Manual
Part III Inspection Algorithm
Step5: Enter values in Upper fi eld and Lower fi eld.
NOTE
Standard values are 80 (Upper) and 0 (Lower).
NOTE
OKNGImages can register different images for OK and NG images and judge an
image is OK according to the setting. To set the algorithm to judge an image is OK
if the matching rate with the OK image is high, set Upper to around 100 and Lower
to around 70. To set the algorithm to judge an image is OK if the matching rate with
NG image is high, set Upper to around -70 and Lower to around -100.
Step6: Enter the appropriate vector into the Shift fi eld. Any value from V1 to V8 is available.
Select the vector according to the Memorize to fi eld of the Adjust window.
Step7: Press Inspect. Make sure that the inspection is completed properly.
III-79
Programming Manual
Part III Inspection Algorithm
1.23.4 Registered Images
Registered images are displayed in Registered Images.
Figure 1-95 Registered Images
Item Description
OK Images Displays OK template images.
NG Images
Displays NG template images.
Prev
Displays previous registered image.
Next Displays next registered image.
No: a/b
Displays the total number of registered template images (b) and current image number (a).
Delete all
Deletes all Delete all OK template images and NG template images.
Matching rate [%]
Displays a match percentage of the current template image to detected image.
Delete
Deletes the selected image.
Table 1-37 Each Item of Registered Images
III-80
Programming Manual
Part III Inspection Algorithm
2 Optional Function
2.1 OCR_Pro
2.1.1 Inspection Overview
OCR_Pro is the algorithm to recognize characters.
This algorithm performs an inspection by the match rate between registered characters and detected
characters. Any kinds of fonts can be recognized.
OCR_Pro is suitable for the missing or miss-mounting component inspection.
2.1.2 Parameter Setting

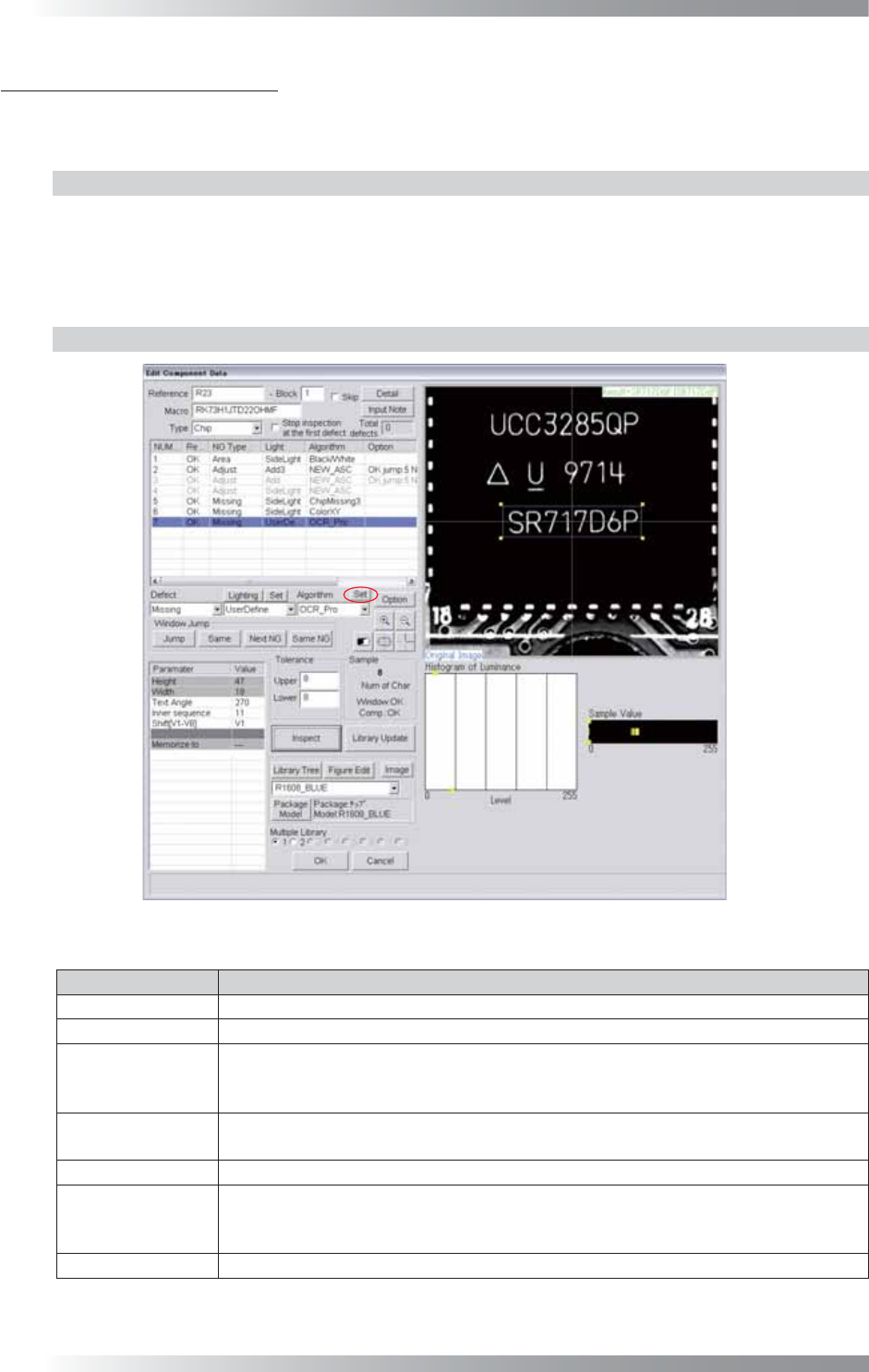

Figure 2-1 OCR_Pro
Parameter Description
Lighting Select a lighting that displays characters visually clear.
Algorithm Select OCR_Pro.
Height, Width,
Text Angle,
Inner Sequence
No need for setting.
Value will be applied to the dialog displayed by pressing Set.
Shift[V1-V8]
Enter the appropriate vector. Any value from V1 to V8 is available.
Select the vector according to the Memorize to fi eld of the Adjust window.
Memorize to -
Upper, Lower
Enter the number of characters to Upper fi eld and Lower fi eld.
The sample value shows the number of recognized characters.
If the registered characters and the recognized characters are matched, the result will be OK.
Sample Shows the number of recognized characters.
Table 2-1 Parameter of OCR_Pro
