V-46
Programming Manual
Part V Inspection Data
4.5 Straight Pin Inspection Setting
Straight pin inspection detects the straight pin automatically.
This algorithm verifi es if there are pins or not.
4.5.1 Parameter of Straight Pin Inspection
Figure 4-9 Straight Pin Inspection Setting
Parameter Description
Inspect Pin
To activate pin inspection, check Inspect Pin.
To disable pin inspection, un-check Inspect Pin. Buttonʼs color is displayed as gray.
Press straight pin icon (
) to inspect straight pin.
Y width
Set the width (pixel value) of the direction of the Y-axis of a pin.
X width
Set the width (pixel value) of the direction of the X-axis of a pin.
Lighting Select a lighting. Default setting is Dedicated.
Lower limit Set the lower limit of the OK range.
Detected
Displays Straight pin brightly and its surroundings darkly (refer to Figure 4-10).
The Detected value is high when an inspection area is bright and its surroundings are dark.
Table 4-5 Parameter of Straight Pin Inspection
V-47
Programming Manual
Part V Inspection Data
4.5.2 Setting Procedure of Straight Pin Inspection
Step1: Press PIN button.
Step2: Check Inspect Pin.
Step3: Press the straight pin icon (
).
Step4: Check Dedicated.
Step5: Enter values in Y width and X width fi eld to set the size of the straight pin. Press Inspect.
Make sure that the straight pin is surrounded by the pink window.
NOTE
If the straight pin is not detected by Dedicated, check Top
NOTE
The inspection area is the area where surrounded by the pink window.
Step6: Enter a value in Lower limit fi eld.
NOTE
Detected will be high if an inspection area is bright and its surroundings are dark.
(a)Normal(Detected value is 59 ) (b)No Pin(Detected value is 2 )
Straight Pin
(Bright)
Solder
(Dark)
Solder
(Dark)
Solder
(Bright)
Solder
(Bright)
Solder
(Bright)
Figure 4-10 Straight Pin Inspection
V-48
Programming Manual
Part V Inspection Data
4.6 Clinch Pin Inspection Setting
Clinch pin inspection detects width of the top of the clinch pin. This algorithm verifi es if there are pins or not.
4.6.1 Parameter of Clinch Pin Inspection

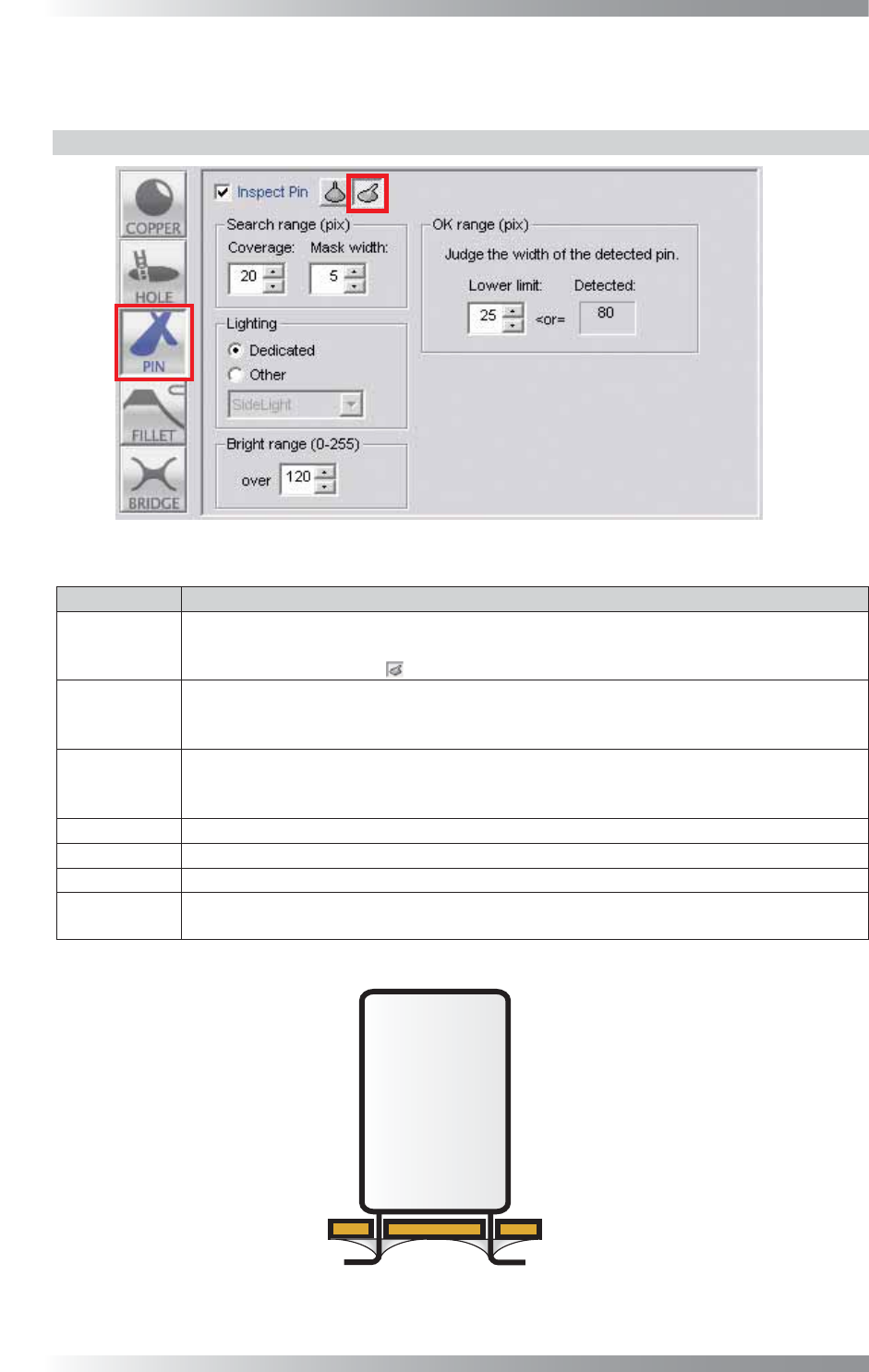

Figure 4-11 Clinch Pin Inspection Setting
Parameter Description
Inspect Pin
To activate pin inspection, check Inspect Pin.
To disable Pin inspection, un-check Inspect Pin. Buttonʼs color is displayed as gray.
Press the clinch pin icon (
) to inspect clinch pins.
Coverage
The inspection area is specifi ed by width (pixel value) from the dotted line circle.
The inspection area is in the green circle except the area netted.
Enter the bigger value to enlarge the inspection area.
Mask width
Specifi es a “no inspection” area in an inspection area set in Coverage by a width (pixels)
from a dotted line circle.
Use this parameter if a pad edge is uneven. Set a mask so a solder fi llet is covered.
Lighting
Select a lighting. Default setting is Dedicated.
Bright range Shows the pixels of a specifi c brightness level which is set in Bright range in yellow.
Lower limit
Set the lower limit of an acceptable range.
Detected
Clinch pin inspection detects a border between a clinch pin end and a netted (masked)
area. The Detected value shows a width (pixels) of clinch pin end at the border.
Table 4-6 Parameter of Clinch Pin Inspection
Figure 4-12 Clinch Pin Inspection
