V- 57 Programming Manual Part V Inspection Data 5.3.1 Skip Inspection Skips arbitrarily selected components. The function is useful if components are missing as PCB version differs. Display the skip inspection component …

V-56

Programming Manual

Part V Inspection Data

Step4: The dialog shown in Figure 5-4 appears. Enter the inspection selection name and press OK.

Figure 5-4 Set Inspection Selection Name

Step5: New inspection selection is added in the Board Selection list-box. Select added inspection

selection. The component name is displayed in the Normal Inspection list-box. Set according to

the type of inspection selection. After all the settings are completed, press Apply. The dialog

shown in Figure 5-6 appears. Press Yes. This is the end of inspection selection settings.

NOTE

For details, refer to Part V 5.3.1 Skip Inspection, Part V 5.3.2 Do Inspection for Not

Placed and Part V 5.3.3 Exchange Macro.

NOTE

To display the component name in the Normal Inspection list-box, check Component.

To display the macro name in the Normal Inspection list-box,

check Macro Code.

To display the library name in the Normal Inspection list-box,

check Library.

Figure 5-5 Apply

Figure 5-6 Apply settings

V-57

Programming Manual

Part V Inspection Data

5.3.1 Skip Inspection

Skips arbitrarily selected components. The function is useful if components are missing as PCB

version differs. Display the skip inspection component as the green dotted line.

NOTE

In case that use BF-RP1 (optional system), inspection result of skip inspection component

is not sent to BF-RP1.

Step1: Select Skip inspection component from the Normal Inspection list-box.

NOTE

Select components by pressing to select a number of components.

Step2: Press >>>> to move components to the Skip Inspection list-box. The components in the

Skip Inspection list-box will not be inspected.

NOTE

Select components from the Skip Inspection list-box and press <<<< to release

the Skip Inspection setting.

Figure 5-7 Skip Inspection Setting

Figure 5-8 Skip Inspection Component (Green Dotted Line)

V-58

Programming Manual

Part V Inspection Data

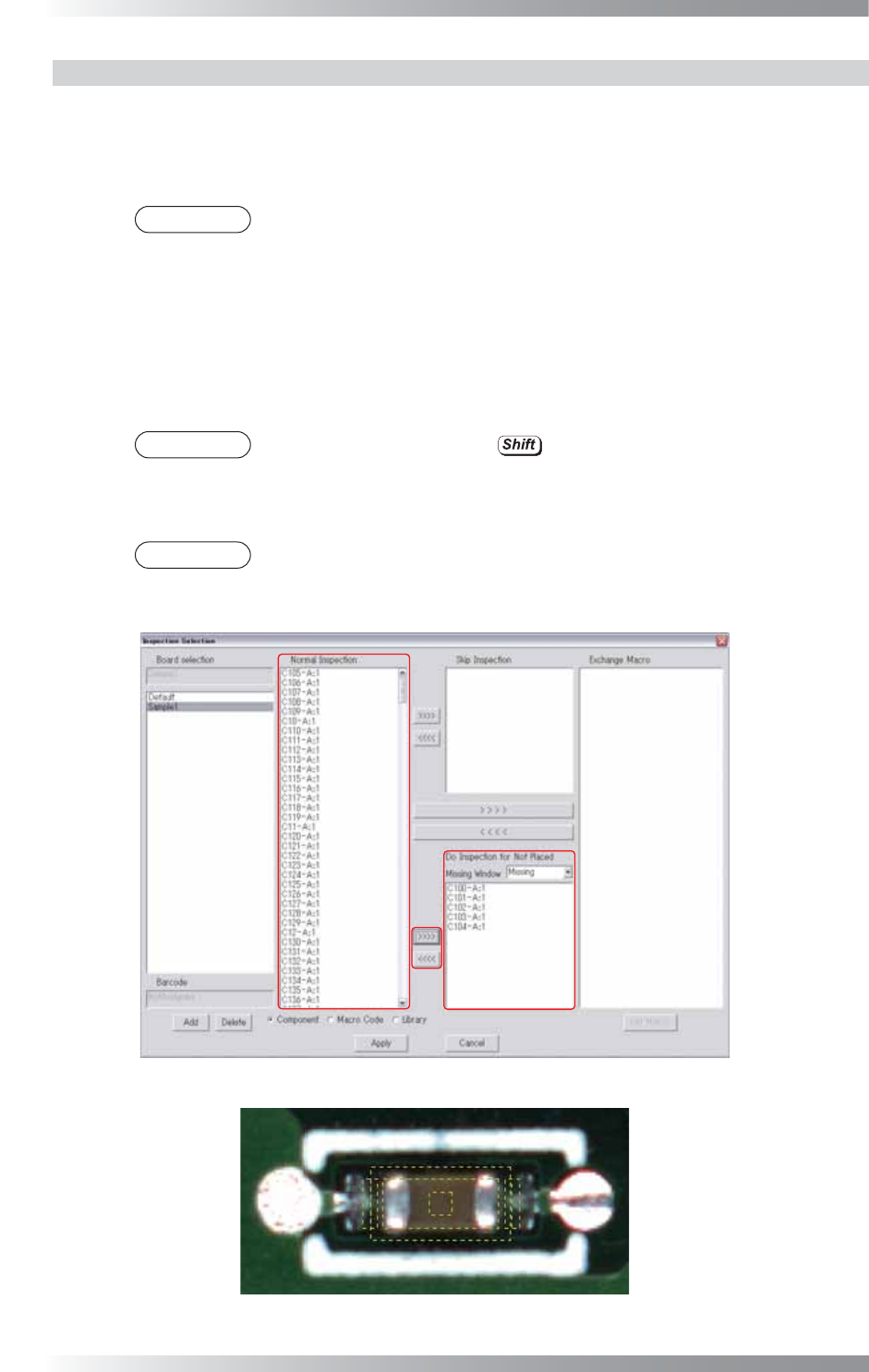

5.3.2 Do Inspection for Not Placed

Only inspect missing component for arbitrarily selected components. If there is no component, the

result will be OK. This is used when inspecting whether components which do not have to be mounted

on certain versions of PCB are mounted or not.

Display the Do Inspection for Not Placed component as the yellow dotted line.

NOTE

If BF-RP1 (optional system) is used, NG will be reported to BF-RP1 as the inspection

result when detecting components are mounted through the Do Inspection for Not

Placed inspection (NG type: Not Placed).

Step1: Select Missing from the Missing Window drop-down list.

Step2: Select a component to apply Do Inspection for Not Placed from the Normal Inspection

list-box.

NOTE

Select components by pressing to select a number of components.

Step3: Press >>>> to move components to the Do Inspection for Not Placed list-box.

NOTE

Select components from the Do Inspection for Not Placed list-box and press <<<<

to release the Do Inspection for Not Placed setting.

Figure 5-9 Do Inspection for Not Placed Setting

Figure 5-10 Do Inspection for Not Placed Component (Yellow Dotted Line)
