1.3.2 Edit Component Data Dialog

Double-click the component in KPK Debug dialog and the dialog shown in Figure 1-18 appears.

The second inspection window is KPK window.

Figure 1-18 KPK Window

Parameter Description

Defect Select Missing.

Lighting Select OKNGColors. Press Set in the right side of Lighting to set details.

Algorithm Select Black/White.

Upper Level[0-255],

Lower Level[0-255]

Upper Level is upper limit of brightness level. Lower Level is lower limit of brightness level.

Enter 255 in Upper Level ﬁ eld. Press Set in the right side of Algorithm to adjust Lower Level.

Option[0-16] Enter 0.

Shift[V1-V8] Enter 0.

Memorize to -

Upper, Lower

Set the OK range. Enter 100 in Upper ﬁ eld and arbitrarily value in Lower ﬁ eld.

Table 1-8 Parameter of KPK

V-15

Programming Manual

Part V Other Function

1.3.3 Detail Settings of OKNGColors Lighting

Press Set in the right side of Lighting in Figure 1-18. The dialog shown in Figure 1-19 appears. Press OK

Colors, Unused, or NG Colors to move colors to the list of OK Colors, Unused Colors, or NG Colors.

NOTE

Press OK Colors, Unused, or NG Colors by pressing to copy colors.

Figure 1-19 OKNGColors Lighting

Parameter Description

OK Colors

The top list is OK color list. Maximum 10 colors can be registered.

Unused Colors

The middle list is to save data for temporary purpose.

Colors listed here can be referred from any other components or libraries.

NG Colors

The bottom list is NG color list. Maximum 10 colors can be registered.

DEL

Deletes the selected color.

Select on Image

Extracts selected colors manually. Component dialog appears (refer to Figure 1-20).

Left-click colors and press Select as OK color or Select as NG color.

Extract from Window

Extracts colors from the window automatically. The dialog shown in Figure 1-21

appears. Press OK (the dialog shown in Figure 1-22 appears). Check Set as OK

Color, Set as NG Color, or No Setting. Press OK. This setting is suitable for if PCB

and component colors are very similar.

Combine similar Colors

Combines the closest colors between OK/NG colors to reduce the number of colors

(refer to Figure 1-23). Press OK to combine the selected colors.

Easy Setting for OCR

Registers OK colors and NG colors automatically to recognize characters on the

component.

KPK Window OK Setting

Extracts component colors from the window automatically and register as OK Color.

The dialog shown in Figure 1-24 appears. Press OK. This setting is suitable for if

component color changed by a change to lot.

Set this NG Color to All KPK

Extracts the selected NG color of the current window and reﬂ ect this NG color all KPK

windows. This setting is suitable for if PCB color changed by a change to lot.

Table 1-9 Detail Settings of OKNGColors Lighting

V-16

Programming Manual

Part V Other Function

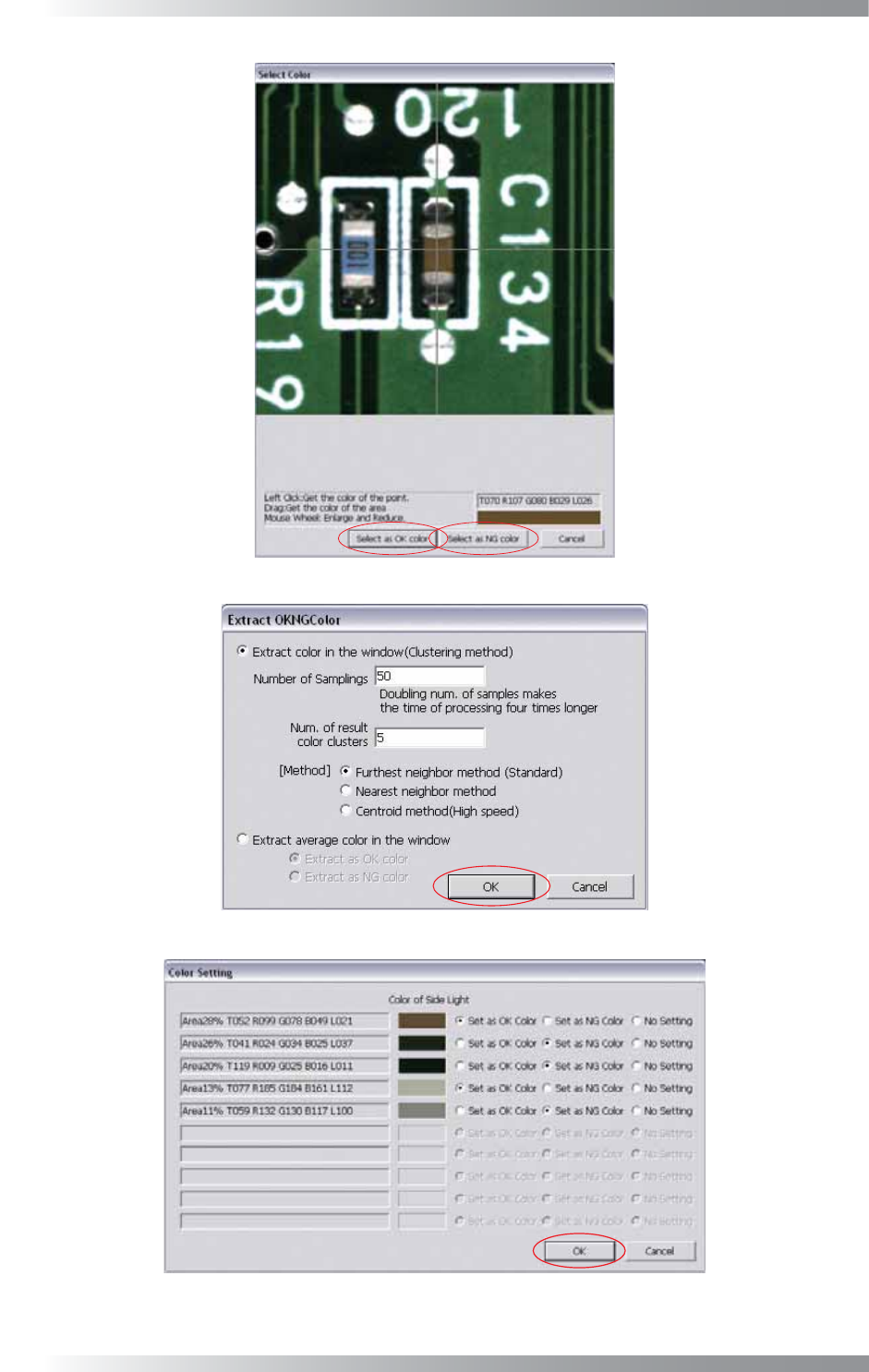

Figure 1-20 Select on Image

Figure 1-21 Extract from Window 1

Figure 1-22 Extract from Window 2
