V- 24 Programming Manual Part V Other Function Step8: Yellow and purple windows are displayed. Drag the yellow window to adjust inspection area. NOTE Purple window shows inspection area. CAUTION Be sure to set an inspect…

V-23

Programming Manual

Part V Other Function

Step7: If Auto setting with inspection sensitive and free memory size in Step6 is checked, the dialog

shown in Figure 2-9 appears. After all the settings are completed, press Finish. ECD inspection

window will be extracted according to settings of Table 2-3 Adjust Inspection Area.

Figure 2-9 ECD Default Parameter Setting 1

Item Description

Mark1 [0-128] Enter 1.

Mark2 [0-128] Enter 2.

Lighting Select TopSideLow.

ECD Sensitive level

Select the inspection level from LOW, MIDDLE, HIGH depends on the inspection accuracy.

Match rate shows matching rate of the images of inspection PCB and template.

Table 2-5 ECD Default Parameter Setting 1

NOTE

If Detail setting in Step6 is checked, the dialog shown in Figure 2-10 appears. Refer to

Table 2-8 to set parameters manually. Press Finish.

Figure 2-10 ECD Default Parameter Setting 2

V-24

Programming Manual

Part V Other Function

Step8: Yellow and purple windows are displayed. Drag the yellow window to adjust inspection area.

NOTE

Purple window shows inspection area.

CAUTION

Be sure to set an inspection area inside of ﬁ ducial marks.

Figure 2-11 Enlarge Inspection Area

Step9: After dragging the yellow window, the dialog shown in Figure 2-12 appears.

Check Current Component and press OK.

Figure 2-12 Move Component Data

V-25

Programming Manual

Part V Other Function

Step10: Press and the dialog shown in Figure 2-13 appears. Check Activate ECD Function and

press Sampling.

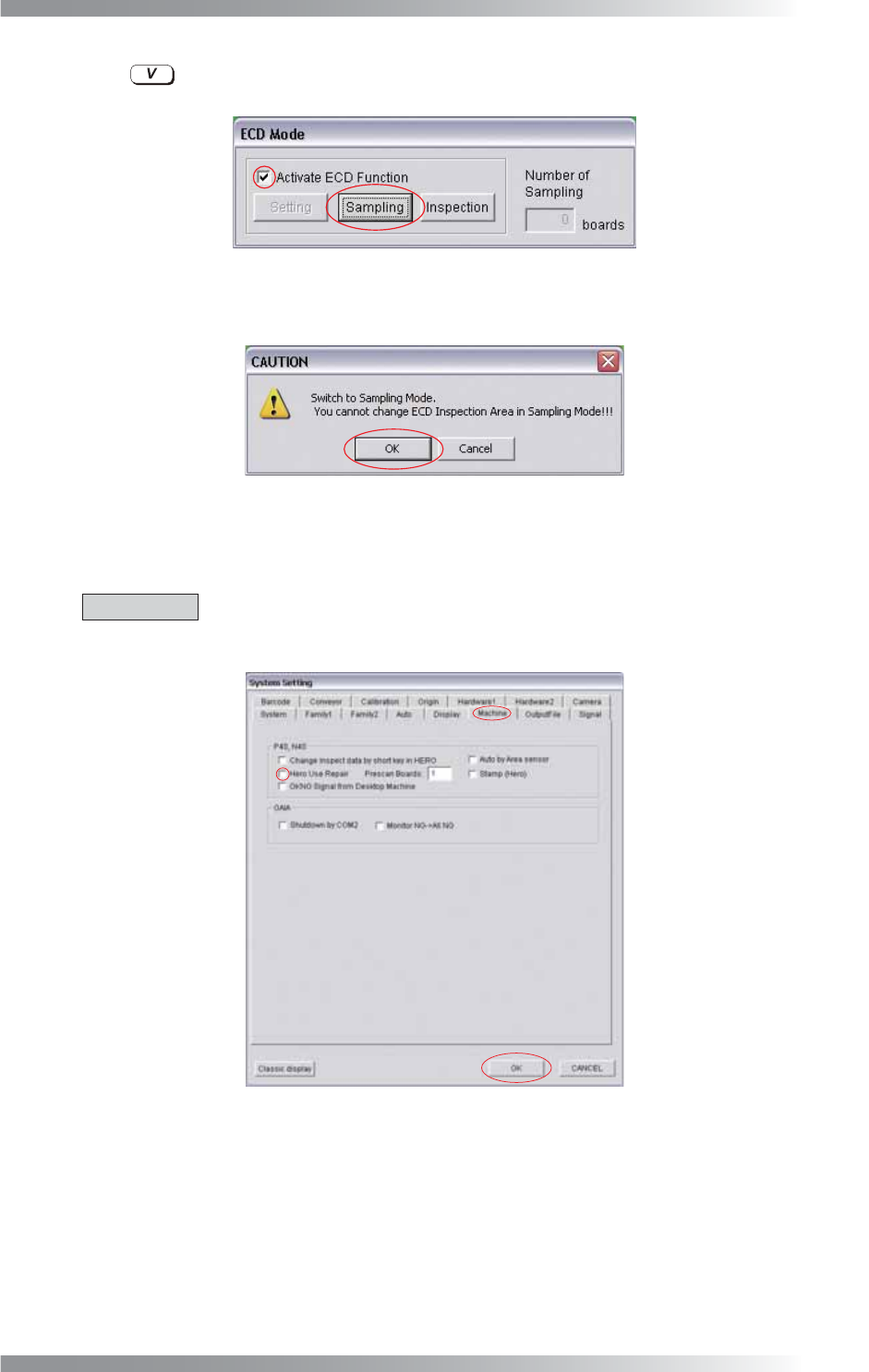

Figure 2-13 Sampling Mode

Step11: The dialog shown in Figure 2-14 appears. Press OK.

Figure 2-14 Switch to Sampling Mode

Step12: Select Edit > System Setup > System > Machine tab from the menu-bar. If Hero Use Repair is

checked, uncheck Hero Use Repair. After all the settings are completed, press OK.

CAUTION

If Hero Use Repair is checked before setting, check Hero Use Repair after ECD inspection

is completed.

Figure 2-15 Hero Use Repair
