V-39

Programming Manual

Part V Inspection Data

4 FUJIYAMA

FUJIYAMA is the algorithm for a solder side inspection of discrete components.

FUJIYAMA can be used in fare-paying software.

Figure 4-1 FUJIYAMA

4.1 Inspection Overview

FUJIYAMA is the algorithm to inspect copper, hole, pin, ﬁ llet, and bridge in one inspection window.

Inspection Item Defect

Copper Inspection Pad exposure

Pin Hole Inspection Hole in solder part

Straight Pin Inspection No pin

Clinch Pin Inspection No pin

Fillet Inspection Too much solder, Too little solder

Bridge Inspection Bridge

Table 4-1 Inspection Item and Defect

V-40

Programming Manual

Part V Inspection Data

4.2 Settings

4.2.1 Parameter of FUJIYAMA

Figure 4-2 Parameter of FUJIYAMA

Parameter Description

Lighting

Select a lighting that inspection targets are visually clear.

The selected lighting in this ﬁ eld does not inﬂ uence to the inspection result.

Algorithm Select FUJIYAMA.

Shift[V1-V8]

Enter the appropriate vector. Any value from V1 to V8 is available.

Select the vector according to the Memorize to ﬁ eld of the Adjust window.

Memorize to -

Table 4-2 Parameter of FUJIYAMA

V-41

Programming Manual

Part V Inspection Data

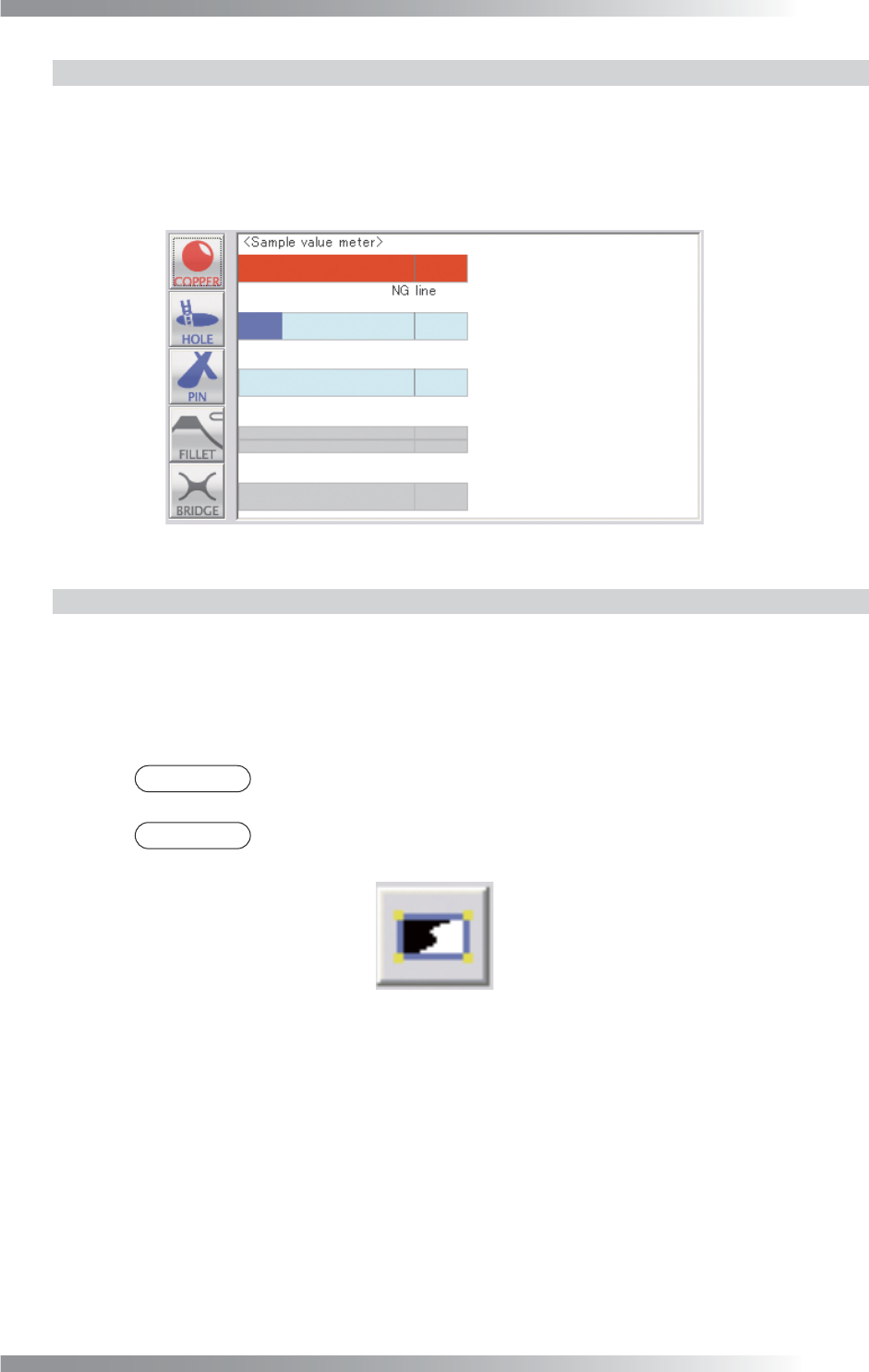

4.2.2 Each Inspection Item Setting

Press ﬁ ve buttons in the lower right side of Figure 4-1 to display the setting window corresponding to

each inspection item. Each button color shows inspection result of each inspection item.

Blue refers OK, red refers NG, and gray refers no judgement.

If no buttons are pressed, the dialog shown in Figure 4-3 appears.

The bar graph below shows comparison of the detected value and each inspectionʼs NG value.

Figure 4-3 Each Inspection Item Setting

4.2.3 Setting Procedure of FUJIYAMA

Step1: Select FUJIYAMA from the Algorithm drop-down list.

Step2: Select a lighting that inspection targets are visually clear from the Lighting drop-down list

to adjust inspection window size.

NOTE

The inspection processing of FUJIYAMA is using the special lighting. The selected

lighting in this ﬁ eld does not inﬂ uence to the inspection result.

NOTE

Press black-white button in the upper side of Sample to switch between selected

lighting image and used lighting image.

Figure 4-4 Switching between the images

Step3: Adjust inspection window size to surround the pad.

Step4: Press each inspection item button to set parameters. For details, refer to Part V 4.3 Setting

of Copper Inspection, Part V 4.4 Setting of Hole Inspection, Part V 4.5 Setting of

Straight Pin Inspection, Part V 4.6 Setting of Clinch Pin Inspection, Part V 4.7 Setting

of Fillet Inspection, Part V 4.8 Setting of Bridge Inspection.

Step5: After all the settings are completed, press Inspect. Make sure that the inspection is

completed properly.
