II-12

Programming Manual

Part II Inspection Data

Step19: The CAD data will be extracted automatically.

NOTE

Once user deﬁ ne format is registered, extracting CAD data is easy if the same format is

used from the next time. Select the relevant format from Select Format. Set Board Size

and Fiducial Marks. Press OK.

Step20: After CAD data is extracted, open the image. Press Load Image and specify the image ﬁ le to open

the reserved image. The procedure to scan a PCB differs between benchtop machines and inline

machines.

In case of a benchtop machine

Set the PCB in the machine and press Scan Board Image.

In case of an inline machine

Adjust the conveyor rail width and set the PCB on conveyor rail. Press Load/Unload the Board.

Set the PCB in the machine and press Scan Board Image.

To unload the PCB, press Load / Unload the Board.

Figure 1-17 Wizard 3

Step21: Make sure that the PCB is scanned properly, and press Next.

II-13

Programming Manual

Part II Inspection Data

Step22: Select two ﬁ ducial mark data from the list-box. The second selected ﬁ ducial mark data is displayed.

Press Switch of Mark Data Image to display the other ﬁ ducial mark data.

NOTE

Magniﬁ cation percentage of an image can be changed by pressing ENLARGE or REDUCE.

NOTE

As possible ﬁ ducial mark data, the list-box shows 50 components data. These are top 50

of component data registered as ﬁ ducial mark, component data including Mark, and

outlying component data from the center of a PCB.

Figure 1-18 Wizard 4

Step23: Press Adjust Data Position in Figure 1-18. The dialog shown in Figure 1-19 appears.

Press Adjust Tool to match the position of the component data with the image.

After all the adjustments are completed, press OK.

NOTE

The position of component data can be adjusted by dragging a mouse.

In addition, magniﬁ cation percentage can be changed by scrolling a wheel of a mouse.

Figure 1-19 Adjust Data Position

Step24: After all the settings are completed, press Next.

II-14

Programming Manual

Part II Inspection Data

Step25: Make ﬁ ducial mark data and press MARK1. The dialog shown in Figure 1-20 appears.

NOTE

If multiple CAD data are used, press the Append button shown in Figure 1-20 and refer to

Step3 and following steps.

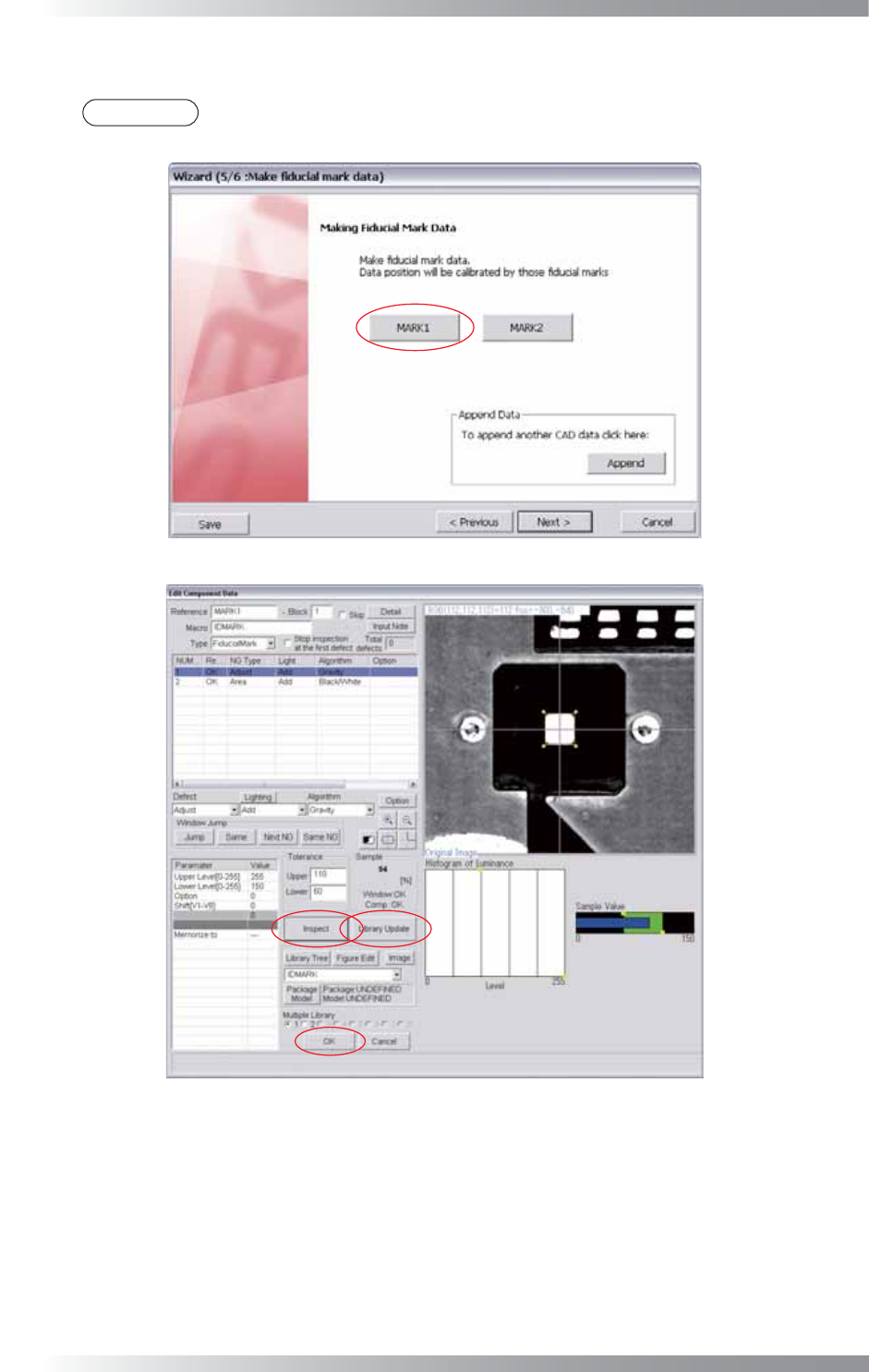

Figure 1-20 Wizard 5

Figure 1-21 Fiducial Mark 1

Step26: Select Fiducial Mark from the Type drop-down list.

Step27: Right-click on the list and select Add New Window.

Step28: Select Adjust from the Defect drop-down list.

Step29: Select a lighting that a ﬁ ducial mark is visually clear from the Lighting drop-down list.
