5 Inspection Selection

Inspection selection is an effective function to manage inspection data of its product variations.

5.1 Inspection Overview

Some components are not mounted in different variations even in the same design. Componentʼs shapes

and colors may also differ from supplier to suppliers. In those cases, different variation of the inspection data

can be applied without making new inspection data with Inspection selection function. Inspection selection

achieves to reduce time for data creation and to manage inspection data easily.

5.2 Type of Inspection Selection

5.2.1 Skip Inspection

Skips arbitrarily selected components. The function is useful if components are missing as PCB

version differs.

5.2.2 Do Inspection for Not Placed

Only inspect missing component for arbitrarily selected components. If there is no component, the

result will be OK.

This is used when inspecting whether components which do not have to be mounted on certain

versions of PCB are mounted or not.

5.2.3 Exchange Macro

Apply arbitrarily macro for arbitrarily selected components.

Because libraries can be made for each macro, multiple libraries can be applied to the same

component.

5.3 Setting Procedure

Step1: Select File > Select Data from the menu-bar to open the inspection data.

Figure 5-1 Select Data

V-55

Programming Manual

Part V Inspection Data

Step2: Select Edit > Inspection Selection > Detail Settings from the menu-bar.

NOTE

The same operation can be performed by pressing

Ctrl

Alt

+ .

Figure 5-2 Detail Settings

Step3: The dialog shown in Figure 5-3 appears. Press Add.

NOTE

Select an inspection selection from the Board Selection list-box and press Add. A new

inspection selection is added based on the selected inspection selection from the Board

Selection list-box. If there is no inspection selection in the Board Selection list-box, a new

inspection selection is added based on the Default inspection selection.

Figure 5-3 Add

V-56

Programming Manual

Part V Inspection Data

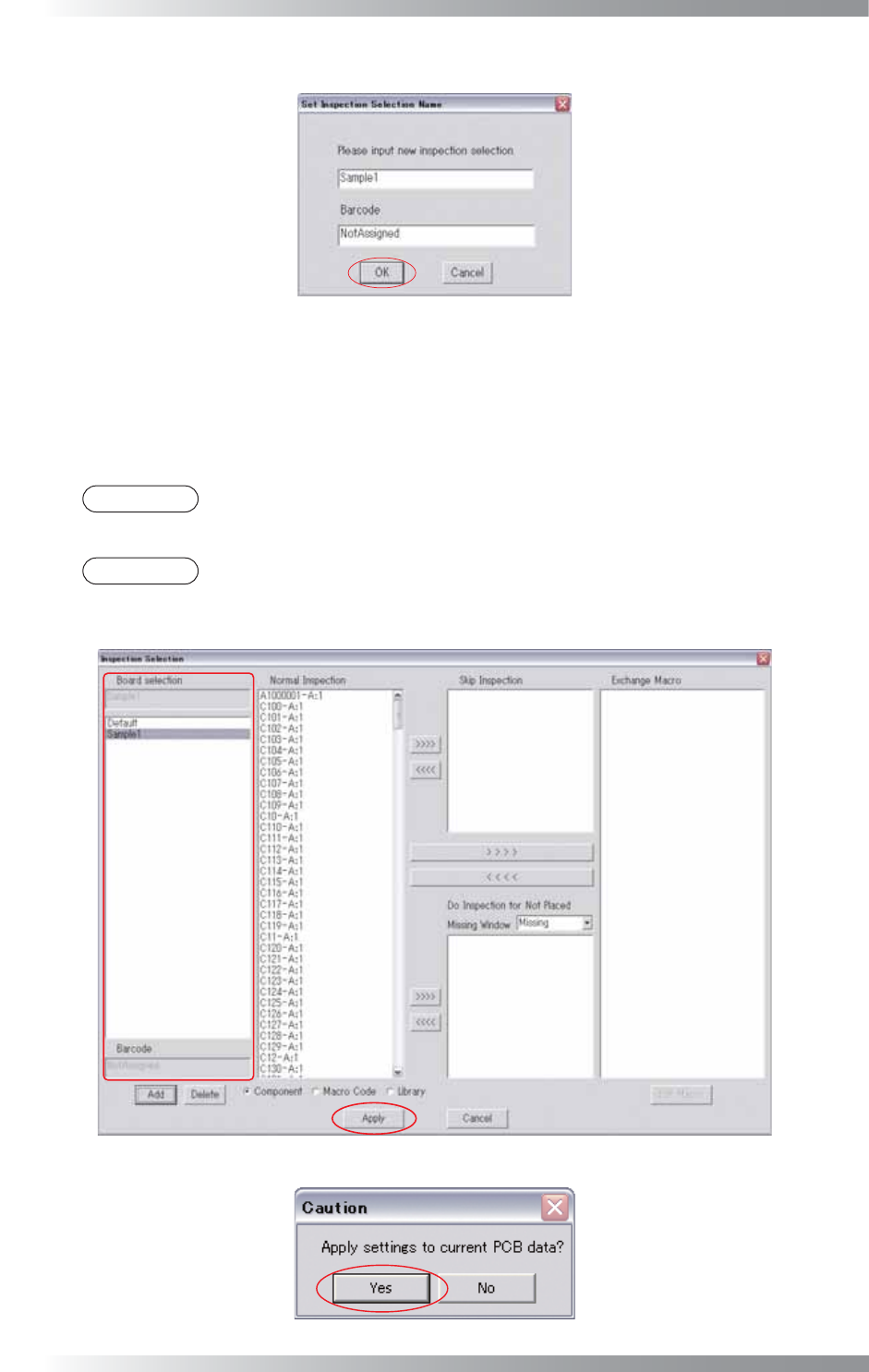

Step4: The dialog shown in Figure 5-4 appears. Enter the inspection selection name and press OK.

Figure 5-4 Set Inspection Selection Name

Step5: New inspection selection is added in the Board Selection list-box. Select added inspection

selection. The component name is displayed in the Normal Inspection list-box. Set according to

the type of inspection selection. After all the settings are completed, press Apply. The dialog

shown in Figure 5-6 appears. Press Yes. This is the end of inspection selection settings.

NOTE

For details, refer to Part V 5.3.1 Skip Inspection, Part V 5.3.2 Do Inspection for Not

Placed and Part V 5.3.3 Exchange Macro.

NOTE

To display the component name in the Normal Inspection list-box, check Component.

To display the macro name in the Normal Inspection list-box,

check Macro Code.

To display the library name in the Normal Inspection list-box,

check Library.

Figure 5-5 Apply

Figure 5-6 Apply settings
