V- 56 Programming Manual Part V Inspection Data Step4: The dialog shown in Figure 5-4 appears. Enter the inspection selection name and press OK . Figure 5-4 Set Inspection Selection Name Step5: New inspection selection i…

V-55

Programming Manual

Part V Inspection Data

Step2: Select Edit > Inspection Selection > Detail Settings from the menu-bar.

NOTE

The same operation can be performed by pressing

Ctrl

Alt

+ .

Figure 5-2 Detail Settings

Step3: The dialog shown in Figure 5-3 appears. Press Add.

NOTE

Select an inspection selection from the Board Selection list-box and press Add. A new

inspection selection is added based on the selected inspection selection from the Board

Selection list-box. If there is no inspection selection in the Board Selection list-box, a new

inspection selection is added based on the Default inspection selection.

Figure 5-3 Add

V-56

Programming Manual

Part V Inspection Data

Step4: The dialog shown in Figure 5-4 appears. Enter the inspection selection name and press OK.

Figure 5-4 Set Inspection Selection Name

Step5: New inspection selection is added in the Board Selection list-box. Select added inspection

selection. The component name is displayed in the Normal Inspection list-box. Set according to

the type of inspection selection. After all the settings are completed, press Apply. The dialog

shown in Figure 5-6 appears. Press Yes. This is the end of inspection selection settings.

NOTE

For details, refer to Part V 5.3.1 Skip Inspection, Part V 5.3.2 Do Inspection for Not

Placed and Part V 5.3.3 Exchange Macro.

NOTE

To display the component name in the Normal Inspection list-box, check Component.

To display the macro name in the Normal Inspection list-box,

check Macro Code.

To display the library name in the Normal Inspection list-box,

check Library.

Figure 5-5 Apply

Figure 5-6 Apply settings

V-57

Programming Manual

Part V Inspection Data

5.3.1 Skip Inspection

Skips arbitrarily selected components. The function is useful if components are missing as PCB

version differs. Display the skip inspection component as the green dotted line.

NOTE

In case that use BF-RP1 (optional system), inspection result of skip inspection component

is not sent to BF-RP1.

Step1: Select Skip inspection component from the Normal Inspection list-box.

NOTE

Select components by pressing to select a number of components.

Step2: Press >>>> to move components to the Skip Inspection list-box. The components in the

Skip Inspection list-box will not be inspected.

NOTE

Select components from the Skip Inspection list-box and press <<<< to release

the Skip Inspection setting.

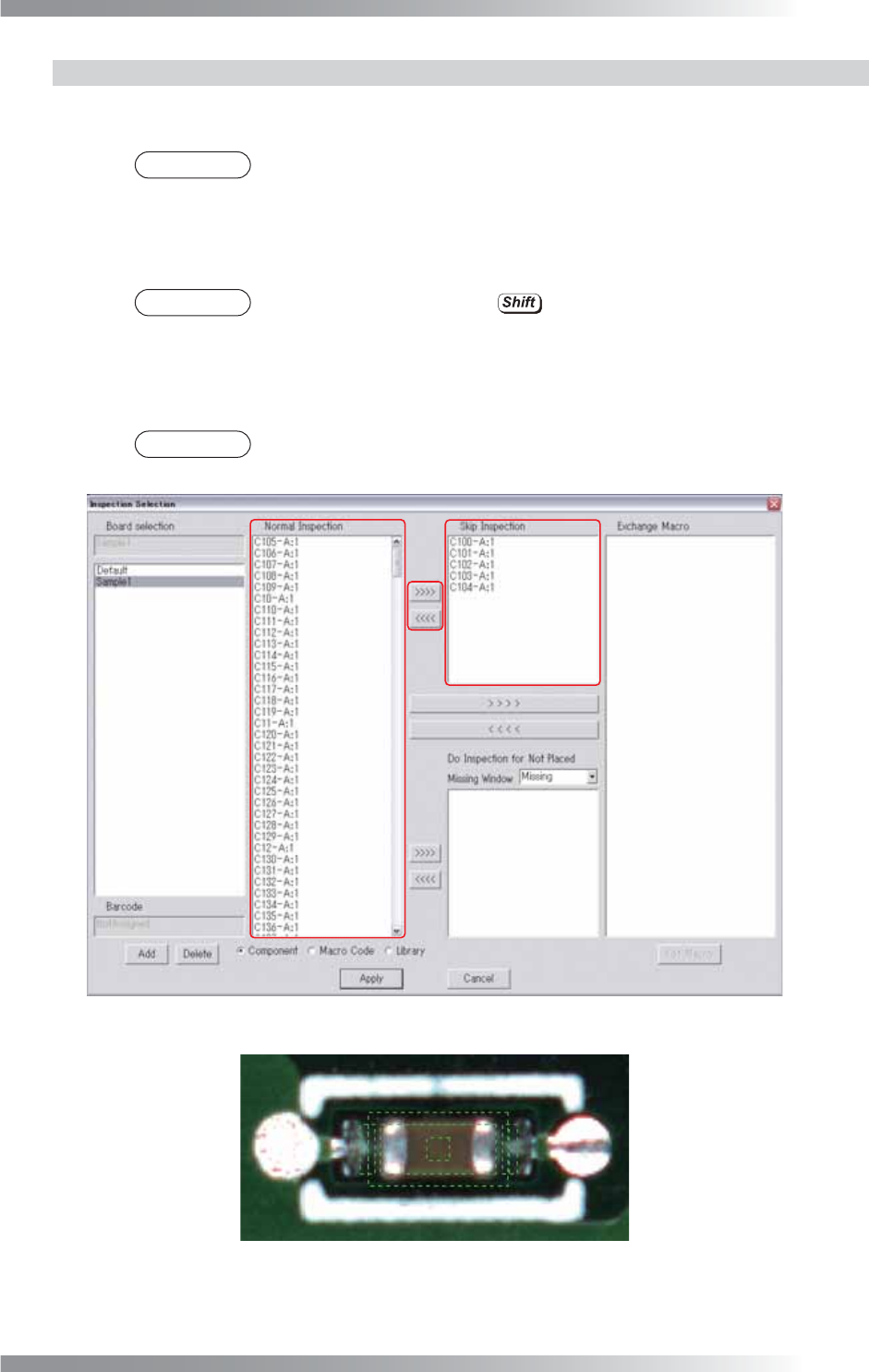

Figure 5-7 Skip Inspection Setting

Figure 5-8 Skip Inspection Component (Green Dotted Line)
