V-19

Programming Manual

Part V Other Function

Step2: ECD setting dialog appears. Check Mark1, Mark2, Sampling, and Lighting of Default Parameters.

Press OK. No need to set for Statistical Process and Template Matching Process.

Figure 2-2 ECD Default Setting

Item Description

MARK1 [0-128] Enter 1.

MARK2 [0-128] Enter 2.

Sampling

Set the pixel interval to extract brightness. If setting value is 6, extract brightness at intervals of

6 pixels. If resolution is 10 μm, enter 6 or greater. If resolution is 18 μm, enter 4 or greater.

Enter the bigger value to turn down the resolution accelerate the inspection speed.

Lighting Select TopSideLow.

Table 2-1 ECD Default Setting

V-20

Programming Manual

Part V Other Function

Figure 2-3 Parameter Setting

Item Description

Use Latest Sample

Latest OK image is used as template image.

Specify the number of PCBs in Use Latest.

Shift Inspection

Mode Automatically

The mode will be switched to inspection mode automatically after sampling is completed.

Default number of sampled PCB is 10.

Use Hole Mask

Excludes the through hole of PCB from inspection target.

Specify the brightness level of through hole in Level ﬁ eld.

Specify the area of through holes in the Area ﬁ eld. Areas darker than Level and larger than

Area will be judged as through hole and will not be inspected.

Table 2-2 Parameter Setting

Step3: Set the OK PCB. Press Scan button on the tool-bar or select Scan from the menu-bar. The dialog

shown in Figure 2-5 appears. Press OK.

Figure 2-4 Scan

Figure 2-5 Check Auto Inspection Start

V-21

Programming Manual

Part V Other Function

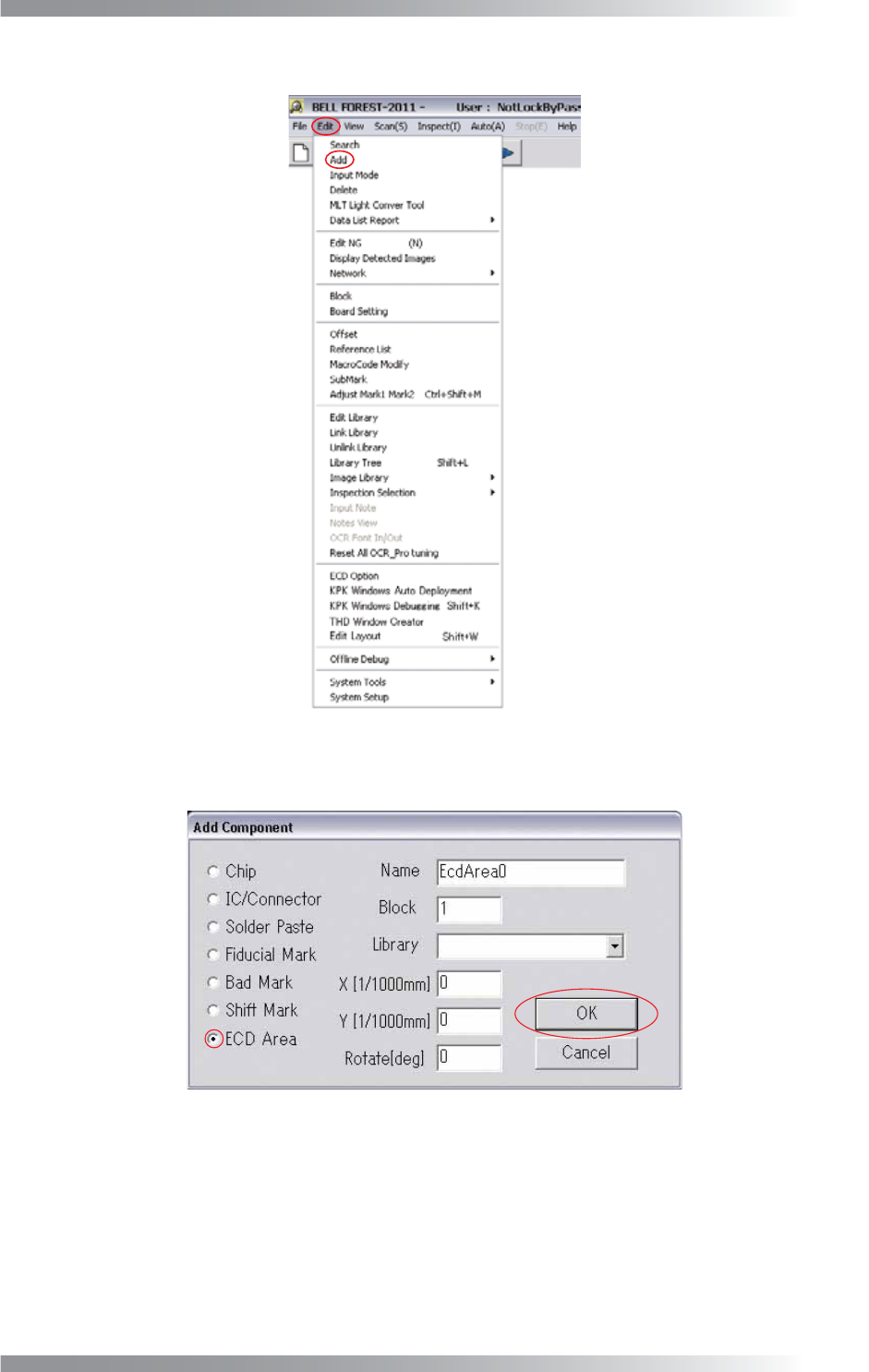

Step4: Select Edit > Add from the menu-bar.

Figure 2-6 Add

Step5: Check ECD Area and press OK.

Figure 2-7 ECD Area
