4. STARTUP
4.2 Start up
Connect the servo motor with a machine after confirming that the servo motor operates properly alone.
(1) Power on
When the main and control circuit power supplies are switched on, "b01" (for the first axis) appears on the
servo amplifier display.
In the absolute position detection system, first power-on results in the absolute position lost (25) alarm and
the servo system cannot be switched on.
The alarm can be deactivated by then switching power off once and on again.
Also in the absolute position detection system, if power is switched on at the servo motor speed of 500r/min
or higher, position mismatch may occur due to external force or the like. Power must therefore be switched
on when the servo motor is at a stop.
(2) Parameter setting
Set the parameters according to the structure and specifications of the machine. Refer to chapter 5 for the
parameter definitions.
Parameter No. Name Setting Description
PA14 Rotation direction setting 0
Increase in positioning address rotates the motor in
the CCW direction.
PA08 Auto tuning mode 1 Used.
PA09 Auto tuning response 12 Slow response (initial value) is selected.
After setting the above parameters, switch power off once. Then switch power on again to make the set
parameter values valid.
(3) Servo-on
Switch the servo-on in the following procedure.
1) Switch on main circuit/control circuit power supply.
2) The controller transmits the servo-on command.
When placed in the servo-on status, the servo amplifier is ready to operate and the servo motor is locked.
(4) Home position return
Always perform home position return before starting positioning operation.
(5) Stop
If any of the following situations occurs, the servo amplifier suspends the running of the servo motor and
brings it to a stop.
When the servo motor is with an electromagnetic brake, refer to section 3.11.
Operation/command Stopping condition
Servo system controller
Servo off command The base circuit is shut off and the servo motor coasts.
Forced stop command
The base circuit is shut off and the dynamic brake operates to bring
the servo motor to stop. The controller forced stop warning (E7)
occurs.
Servo amplifier
Alarm occurrence
The base circuit is shut off and the dynamic brake operates to bring
the servo motor to stop.
Forced stop
(EM1) OFF
The base circuit is shut off and the dynamic brake operates to bring
the servo motor to stop. The servo forced stop warning (E6) occurs.
4 - 5
4. STARTUP
4.3 Servo amplifier display
On the servo amplifier display (three-digit, seven-segment display), check the status of communication with the
servo system controller at power-on, check the axis number, and diagnose a fault at occurrence of an alarm.

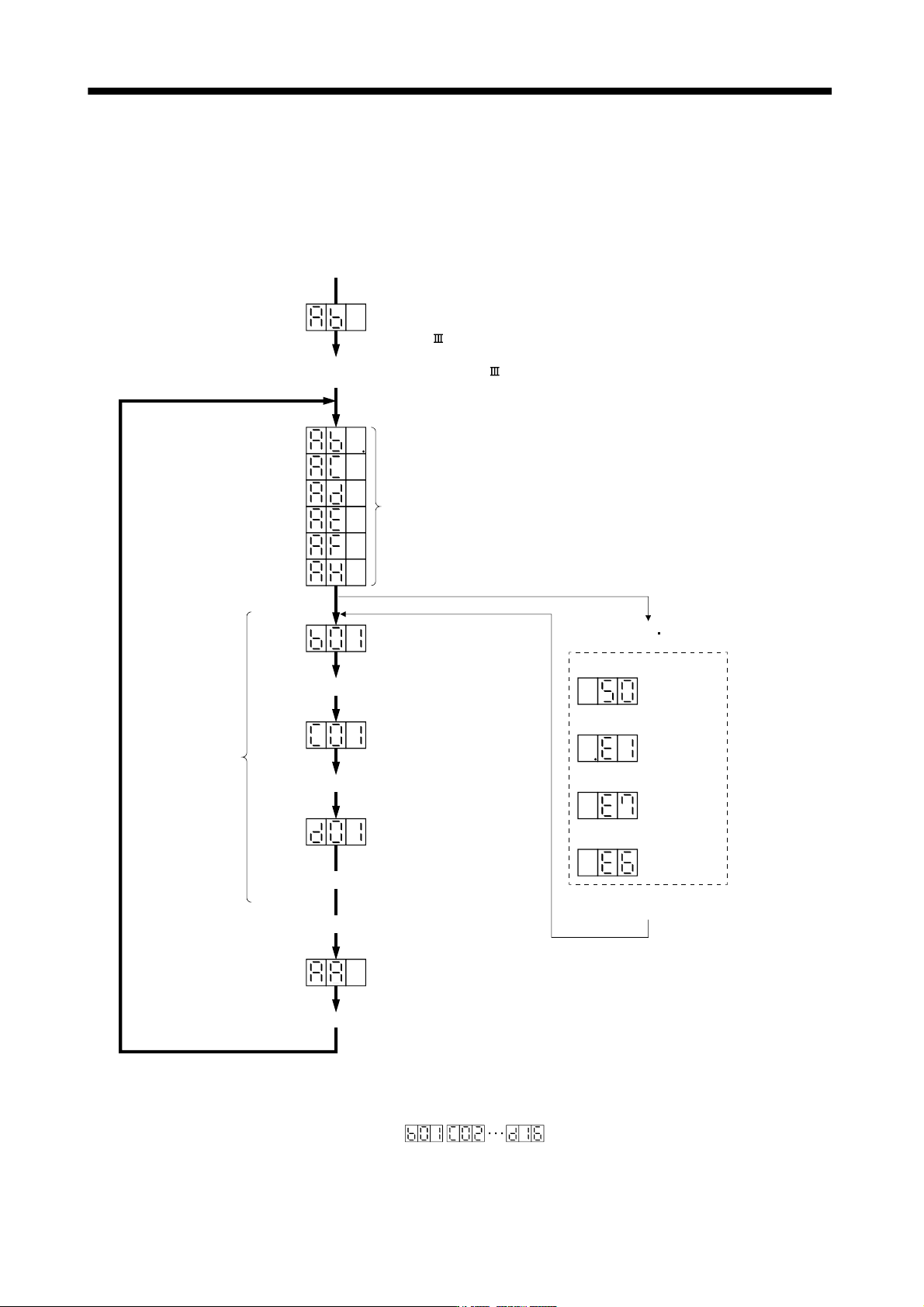

(1) Display sequence
Only alarm and warning No. are displayed, but no axis No. is displayed
Servo amplifier power ON
(Note 3)
At occurrence of overload
At occurrence of overload
warning (Note 2)
During controller
forced stop
During forced stop
Flicker
display
Alarm reset or
warning
1 axis 2 axis 16 axis
(Note 3)
(Note 3)
(Note 1)
When alarm warning
No. is displayed
Flicker
display
Flicker
display
Flicker
display
If warning other than E6 or E7 occurs during the servo on, flickering the
second place of decimal point indicates that it is during the servo on.
Note 1.
2.
3.
The right-hand segments of b01, c02 and d16 indicate the axis number.
(Below example indicates Axis1)
Initial data communication
with servo system controller
(Initialization communication)
When alarm occurs,
alarm code appears.
Ready ON
Ready OFF/servo OFF
Ready ON/servo OFF
Servo ON
Ready ON/servo ON
Servo system controller power ON
Ordinary operation
Servo system controller power OFF
Waiting for servo system controller
power to switch ON
(SSCNET communication)
Servo system controller power ON (SSCNET communication beginning)
4 - 6
4. STARTUP

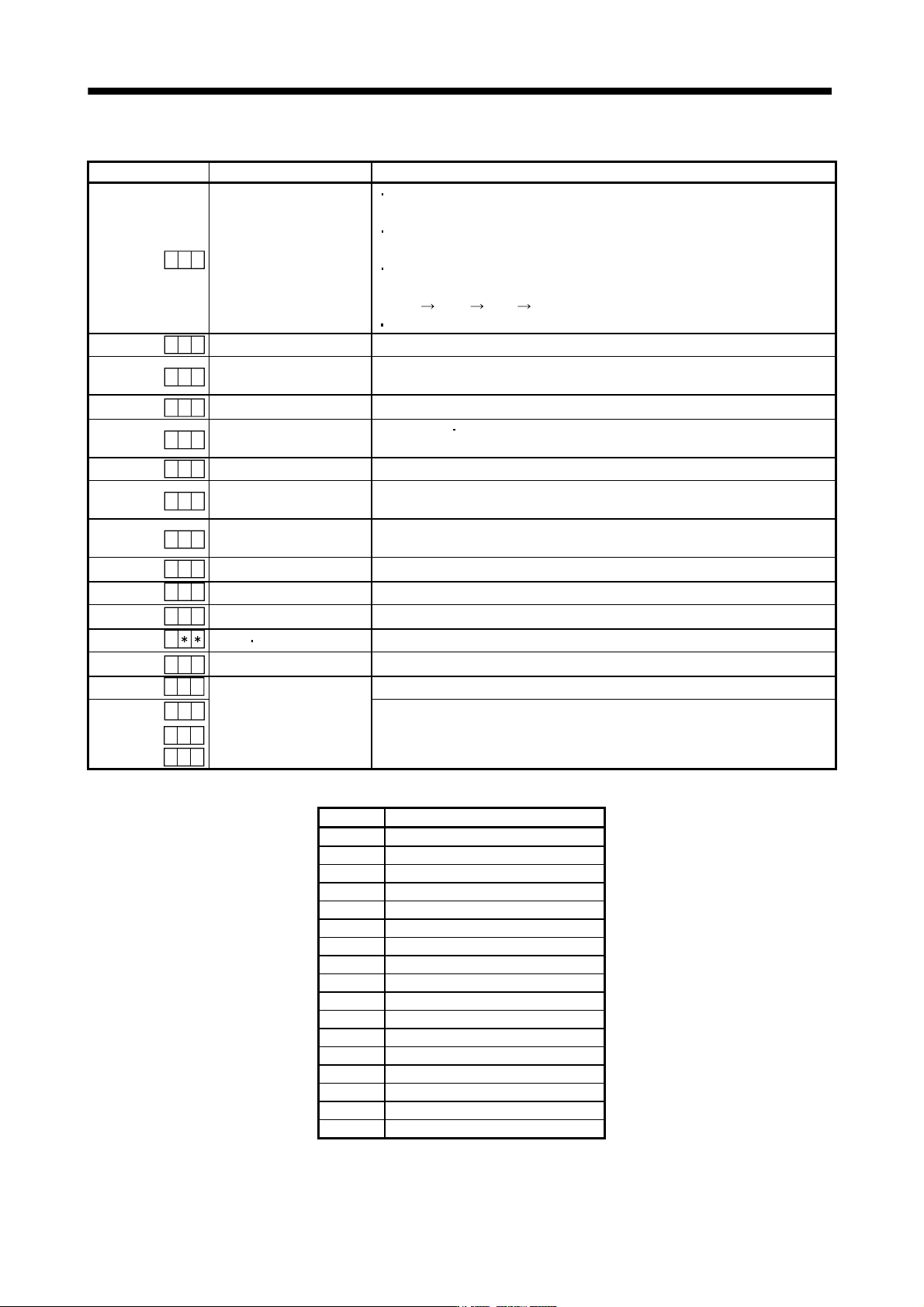

(2) Indication list
Indication Status Description
A b
Initializing
Power of the servo amplifier was switched on at the condition that the power of
servo system controller is OFF.
The axis No. set to the servo system controller does not match the axis No. set
with the rotary axis setting switch (SW1) of the servo amplifier.
A servo amplifier fault occurred or an error took place in communication with the
servo system controller. In this case, the indication changes.
"Ab "
"AC " "Ad " "Ab "
The servo system controller is faulty.
.
A
b
Initializing During initial setting for communication specifications
A C
Initializing
Initial setting for communication specifications completed, and then it synchronized
with servo system controller.
A d
Initializing During initial parameter setting communication with servo system controller
A E
Initializing
During motor
encoder information and telecommunication with servo system
controller
A F
Initializing During initial signal data communication with servo system controller
A H
Initializing completion
During the completion process for initial data communication with servo system
controller
A A
Initializing standby
The power supply of servo system controller is turned off during the power supply
of servo amplifier is on.
(Note 1)
b
# #
Ready OFF The ready off signal from the servo system controller was received.
(Note 1)
d
# #
Servo ON The ready off signal from the servo system controller was received.
(Note 1)
C
# #
Servo OFF The ready off signal from the servo system controller was received.
(Note 2)
Alarm
Warning The alarm No./warning No. that occurred is displayed. (Refer to section 9.1.)
8 88
CPU Error CPU watchdog error has occurred.
(Note 3)
0 0.b
(Note 3)
Test operation mode
JOG operation, positioning operation, programmed operation, DO forced output.
(Note 1)
# #.b
# #.d
# #.C
Motor-less operation
Note 1. ## denotes any of numerals 00 to 16 and what it means is listed below.
# Description
0 Set to the test operation mode.
1 First axis
2 Second axis
3 Third axis
4 Fourth axis
5 Fifth axis
6 Sixth axis
7 Seventh axis
8 Eighth axis
9 Ninth axis
10 Tenth axis
11 Eleventh axis
12 Twelfth axis
13 Thirteenth axis
14 Fourteenth axis
15 Fifteenth axis
16 Sixteenth axis
2. ** indicates the warning/alarm No.
3. Requires the MR Configurator.
