9 - 2
9. OUTLINE DRAWINGS
(2) MR-J3-40B
MR-J3-60B
MR-J3-40B1
[Unit: mm]
Approx.
25.5
6
5
161
168
6
170
40
6
Approx.80
156
CNP3
CNP1
CNP2
Approx.14
Approx.68
CN4 CN2L CN2 CN1B CN1A CN3 CN5
CHARGE
L2
U
W
V
D
L21
L11
C
P
N
P1
P2
L3
L1
(Note)
(Note)
With MR-J3BAT
L1 L2 L3 N P1 P2 P C D L11 L21 U V W
6 mounting hole
6
Note. This data applies to the 3-phase or 1-phase 200 to 230VAC power supply models.
For a single-phase, 100 to 120VAC power supply, refer to the terminal signal layout.
Mass: 1.0 [kg] (2.21 [lb])
L
1
L
2
L3
N
P
1
P2
P
C
D
L
11
L
21
U
V
W
CNP3
CNP2
CNP1
PE terminal
Terminal signal layout
Screw size: M4
Tightening torque:
1.2 [N m] (10.6 [lb in])
P
C
D
L
11
L
21
U
V
W
CNP3
CNP2
For 3-phase or
1-phase
200 to 230VAC
L1
L
2
N
P
1
P
2
CNP1
For 1-phase
100 to 120VAC
6
2-M5 screw
Mounting hole process drawing
Approx. 40
Mounting screw
Screw size: M5
Tightening torque: 3.24 [N m] (28.7 [lb in])
9 - 3
9. OUTLINE DRAWINGS
(3) MR-J3-70B
MR-J3-100B
[Unit: mm]
60
12
12
6
156
6
161
168
185
6
Approx.80
Cooling fan
wind direction
CNP3
CNP1
CNP2
Approx.14
Approx.25.5
Approx.68
With MR-J3BAT
6 mounting hole
6
42
Mass: 1.4 [kg] (3.09 [lb])
L
1
L2
L
3
N
P
1
P
2
P
C
D
L
11
L
21
U
V
W
CNP3
CNP2
CNP1
PE terminal
Terminal signal layout
Screw size: M4
Tightening torque:
1.2 [N m] (10.6 [lb in])
3-M5 screw
Approx. 6
A
pprox. 12
42 0.3
Approx. 60
Mounting hole process drawing
Mounting screw
Screw size: M5
Tightening torque: 3.24 [N m] (28.7 [lb in])
9 - 4

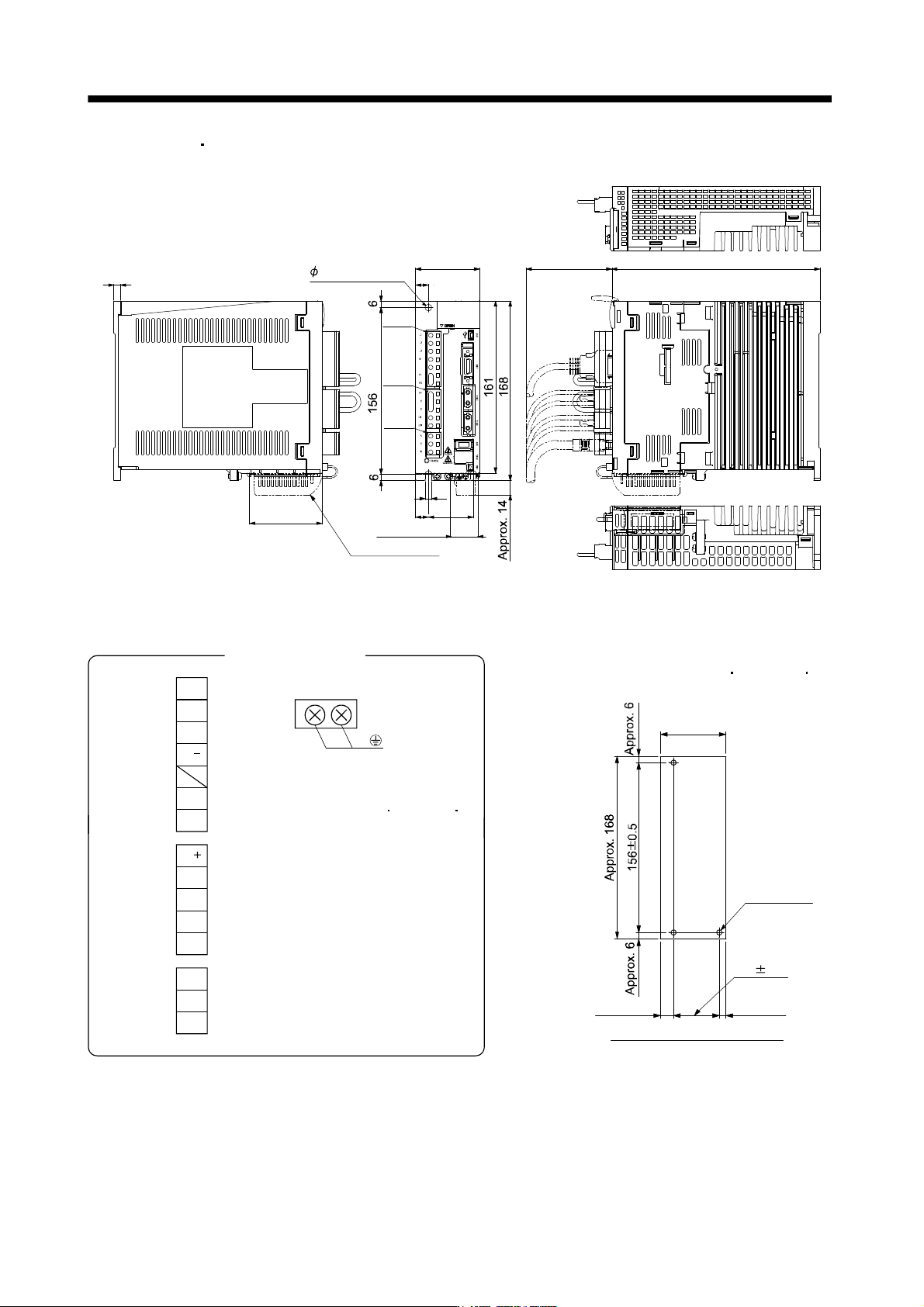

9. OUTLINE DRAWINGS
(4) MR-J3-60B4
MR-J3-100B4
[Unit: mm]
With MR-J3BAT
6
12
42
Approx. 25.5
CNP2
CNP3
CNP1
6mounting hole
60
12
195
Approx. 80
6
Approx. 68
Mass: 1.7 [kg] (3.75 [lb])
L
1
L2
L3
N
P
2
P
C
D
L
11
L
21
U
V
W
CNP3
CNP2
CNP1
PE terminal
Terminal signal layout
P
1
Screw size: M4
Tightening torque:
1.2 [N m] (10.6 [lb in])
Mounting screw
Screw size: M5
Tightening torque: 3.24 [N
m] (28.7 [lb in])
Approx. 60
42 0.3
Approx. 12 Approx. 6
Mounting hole process drawing
3-M5 screw
