13 - 18 13. SERVO AMPLIFIERS WI TH A LARGE CAPACITY ( 30k TO 55kW ) 2) How to close Setting tab Setting tab Hold the bottom of the terminal block cover with both hands . B) B)' Close the cover using the axis B), B)&…
13 - 17
13. SERVO AMPLIFIERS WITH A LARGE CAPACITY
(
30k TO 55kW
)

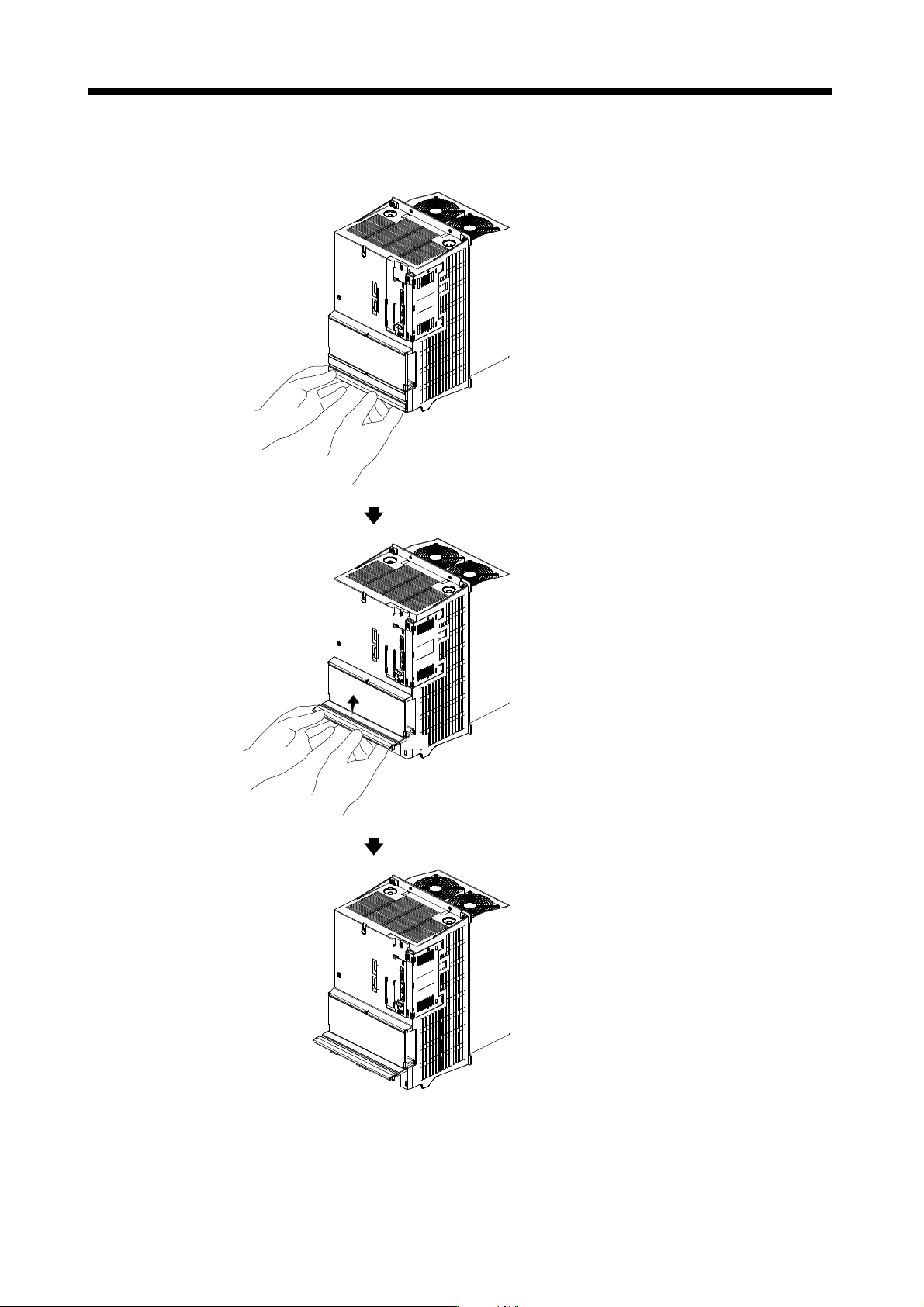

(b) Lower terminal block cover
1) How to open
Hold the bottom of the terminal block cover
with both hands.
B)
B)'
Pull up the cover using the axis B), B)' as a
support.
When pulled up to the top, the cover is fixed.
13 - 18
13. SERVO AMPLIFIERS WITH A LARGE CAPACITY
(
30k TO 55kW
)
2) How to close
Setting tab
Setting tab
Hold the bottom of the terminal block cover
with both hands.
B)
B)'
Close the cover using the axis B), B)' as a
support.
Setting tab
Press the cover against the terminal box until
the installing knobs click.
13 - 19
13. SERVO AMPLIFIERS WITH A LARGE CAPACITY
(
30k TO 55kW
)
13.1.8 Servo system with auxiliary equipment
L
L
BV
BW
BU
L
11
L
21
L11
RS T
3-phase AC
power supply
MR Configurator
L
(Note 1)
Communication
cable
Drive unit(Note 3)
Converter unit
(MR-J3CDL05M)
Servo motor
HA-LP series
(Note 2)
VUEW
P2
P
1
L
1
L
2
L
3
P
C
S
R
L21
L
Magnetic contactor
operation coil
(I/O signal)
Encoder cable
(MR-HSCBL M)
Power factor improving
DC reactor
(MR-DCL K)
P
1
P
2
L
21
L11
Magnetic
contactor(MC)
No-fuse
breaker(NFB)
Line noise
filter(FR-BLF)
No-fuse
breaker(NFB)
Regenerative option
The MR Configurator is required for
parameter setting.
Personal
computer
C
Note 1. The L+ and L- connection conductors used to connect a converter unit to a drive unit are standard accessories. The converter
unit is attached to the drive unit actually. (Refer to section 13.2.1.)
2. The power supply of the servo motor cooling fan differs depending on the capacity of a servo motor. Refer to section 13.3.6.
3. For MR-J3-DU30KB4 or MR-J3-DU37KB4.
