11 - 5 11. OPTIONS AND AUXILI ARY EQUIPMENT No. Product Model Description Application 9) Motor brake cable MR-BKS1CBL M-A1-L Cable length: 2 5 10m Brake co nnecto r HF-MP series HF-KP series Refer to section 11.1.4 for d…

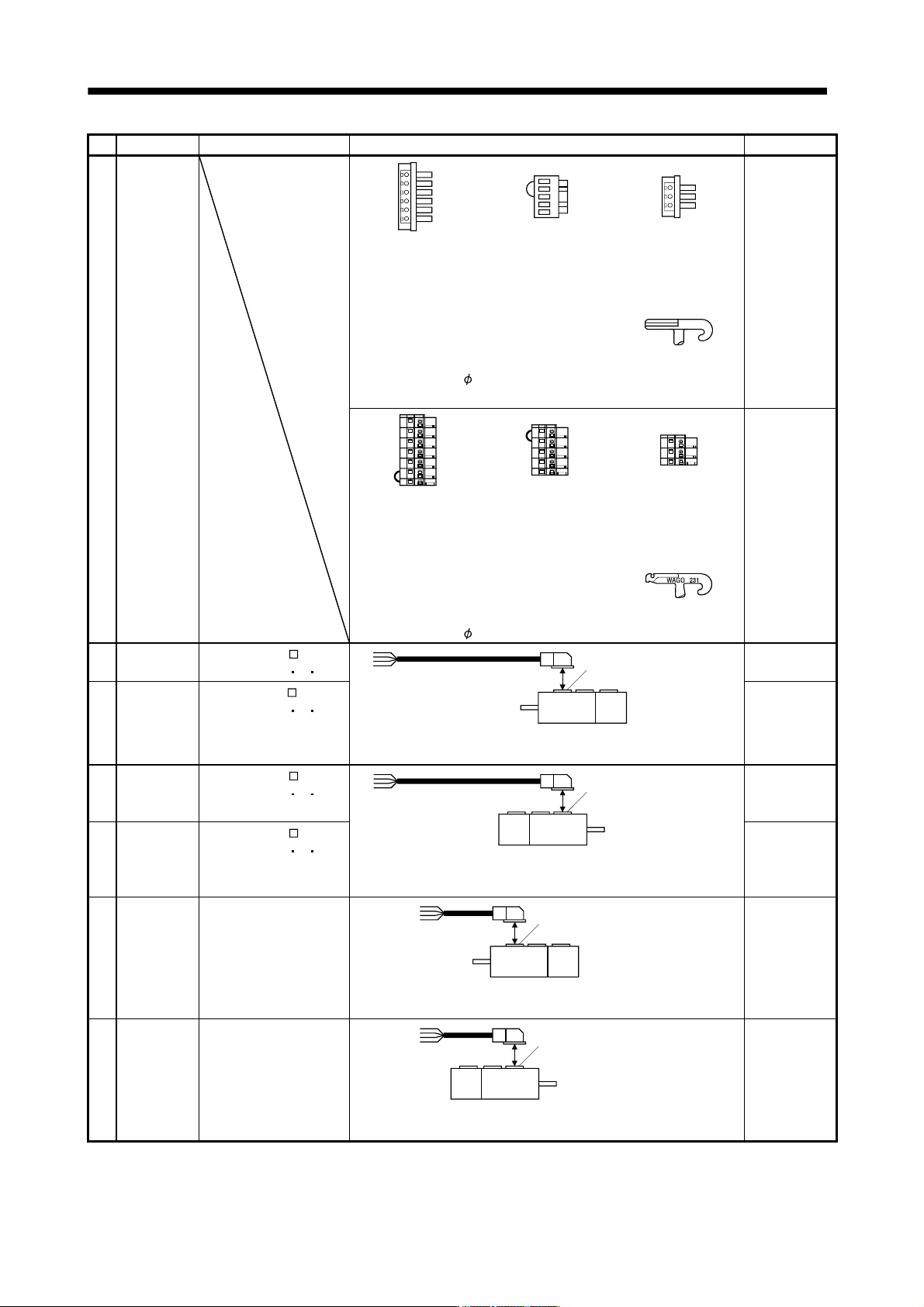

11 - 4
11. OPTIONS AND AUXILIARY EQUIPMENT
No. Product Model Description Application
2) Servo
amplifier
power supply
connector
Supplied with
servo
amplifiers of
3.5kW in 200V
class
CNP1 connector:
PC4/6-STF-7.62-
CRWH
(Phoenix Contact)
CNP2 connector:
54928-0520
(Molex)
CNP3 connector:
PC4/3-STF-7.62-
CRWH
(Phoenix Contact)
<Applicable cable example>
Wire size: 0.2mm
2
(AWG24) to 5.5mm
2
(AWG10)
Cable finish OD: to
5mm
REC. Lever:
54932-0000
(Molex)
Supplied with
servo
amplifiers of
2kW in 200V
class and 2kW
in 400V class
CNP1 connector:
721-207/026-000
(Plug)
(WAGO)
CNP2 connector:
721-205/026-000
(Plug)
(WAGO)
CNP3 connector:
721-203/026-000
(Plug)
(WAGO)
<Applicable cable example>
Wire size: 0.08mm
2
(AWG28) to 2.5mm
2
(AWG12)
Cable finish OD: to
4.1
mm
REC. Lever: 231-131
(WAGO)
3) Motor power
supply cable
MR-PWS1CBL M-A1-L
Cable length: 2
5 10m
Power supply connector
HF-MP series
HF-KP series
Refer to section 11.1.3 for details.
IP65
Load side lead
4) Motor power
supply cable
MR-PWS1CBL M-A1-H
Cable length: 2
5 10m
IP65
Load side lead
Long flex life
5) Motor power
supply cable
MR-PWS1CBL M-A2-L
Cable length: 2
5 10m
Power supply connector
HF-MP series
HF-KP series
Refer to section 11.1.3 for details.
IP65
Opposite-to-
load side lead
6) Motor power
supply cable
MR-PWS1CBL M-A2-H
Cable length: 2
5 10m
IP65
Opposite-to-
load side lead
Long flex life
7) Motor power
supply cable
MR-PWS2CBL03M-A1-L
Cable length: 0.3m
Power supply connector
HF-MP series
HF-KP series
Refer to section 11.1.3 for details.
IP55
Load side lead
8) Motor power
supply cable
MR-PWS2CBL03M-A2-L
Cable length: 0.3m
Power supply connector
HF-MP series
HF-KP series
Refer to section 11.1.3 for details.
IP55
Opposite-to-
load side lead

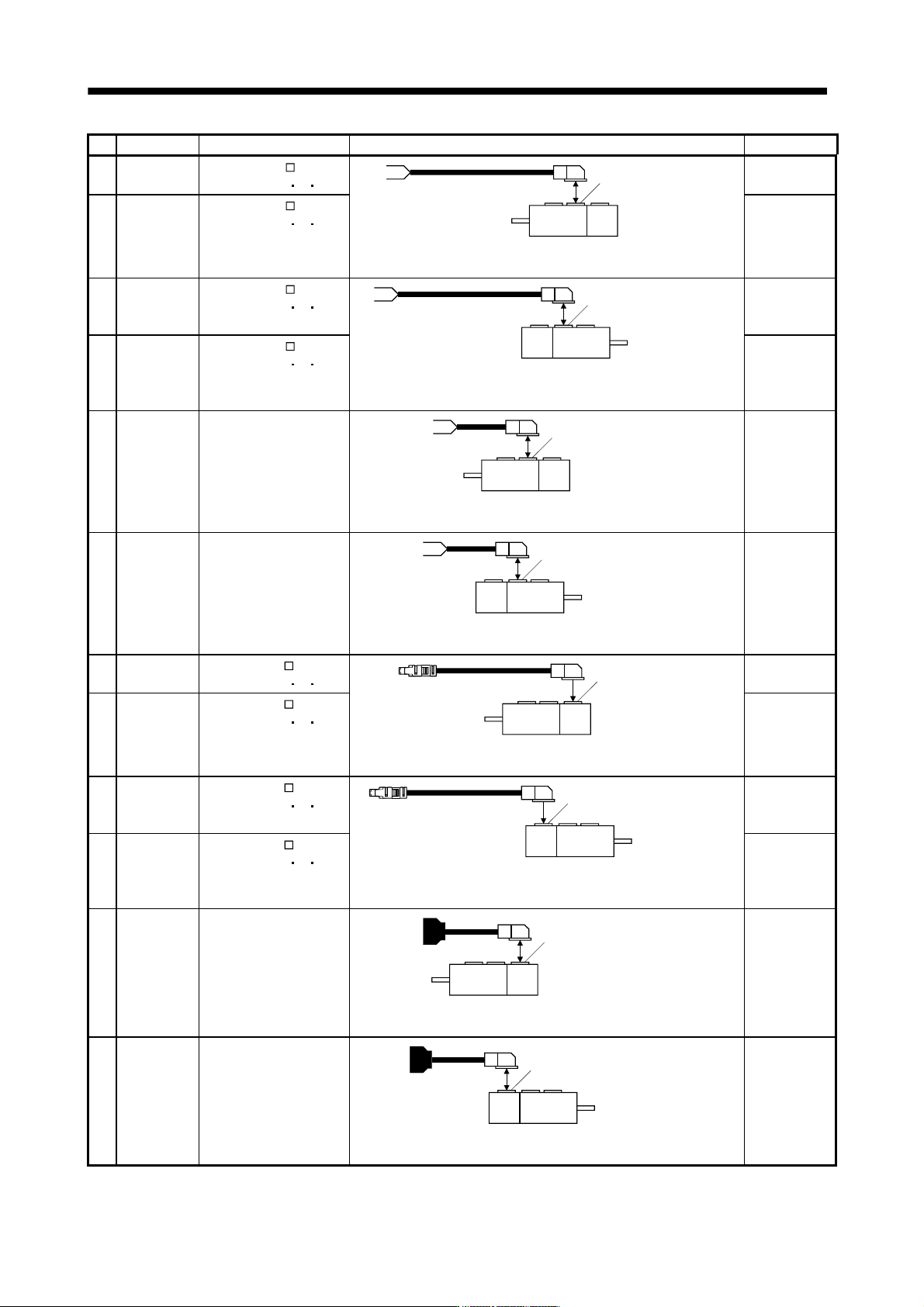

11 - 5
11. OPTIONS AND AUXILIARY EQUIPMENT
No. Product Model Description Application
9) Motor brake
cable
MR-BKS1CBL M-A1-L
Cable length: 2
5 10m
Brake connector
HF-MP series
HF-KP series
Refer to section 11.1.4 for details.
IP65
Load side lead
10) Motor brake
cable
MR-BKS1CBL M-A1-H
Cable length: 2
5 10m
IP65
Load side lead
Long flex life
11) Motor brake
cable
MR-BKS1CBL M-A2-L
Cable length: 2
5 10m
Brake connector
HF-MP series
HF-KP series
Refer to section 11.1.4 for details.
IP65
Opposite-to-
load side lead
12) Motor brake
cable
MR-BKS1CBL M-A2-H
Cable length: 2
5 10m
IP65
Opposite-to-
load side lead
Long flex life
13) Motor brake
cable
MR-BKS2CBL03M-A1-L
Cable length: 0.3m
Brake connector
HF-MP series
HF-KP series
Refer to section 11.1.4 for details.
IP55
Load side lead
14) Motor brake
cable
MR-BKS2CBL03M-A2-L
Cable length: 0.3m
Brake connector
HF-MP series
HF-KP series
Refer to section 11.1.4 for details.
IP55
Opposite-to-
load side lead
15) Encoder
cable
MR-J3ENCBL M-A1-L
Cable length: 2
5 10m
Encoder connector
HF-MP series
HF-KP series
Refer to section 11.1.2 (1) for details.
IP65
Load side lead
16) Encoder
cable
MR-J3ENCBL M-A1-H
Cable length: 2
5 10m
IP65
Opposite-to-
load side lead
Long flex life
17) Encoder
cable
MR-J3ENCBL M-A2-L
Cable length: 2
5 10m
Encoder connector
HF-MP series
HF-KP series
Refer to section 11.1.2 (1) for details.
IP65
Opposite-to-
load side lead
18) Encoder
cable
MR-J3ENCBL M-A2-H
Cable length: 2
5 10m
IP65
Opposite-to-
load side lead
Long flex life
19) Encoder
cable
MR-J3JCBL03M-A1-L
Cable length: 0.3m
Encoder connector
HF-MP series
HF-KP series
Refer to section 11.1.2 (3) for details.
IP20
Load side lead
20) Encoder
cable
MR-J3JCBL03M-A2-L
Cable length: 0.3m
Encoder connector
HF-MP series
HF-KP series
Refer to section 11.1.2 (3) for details.
IP20
Opposite-to-
load side lead

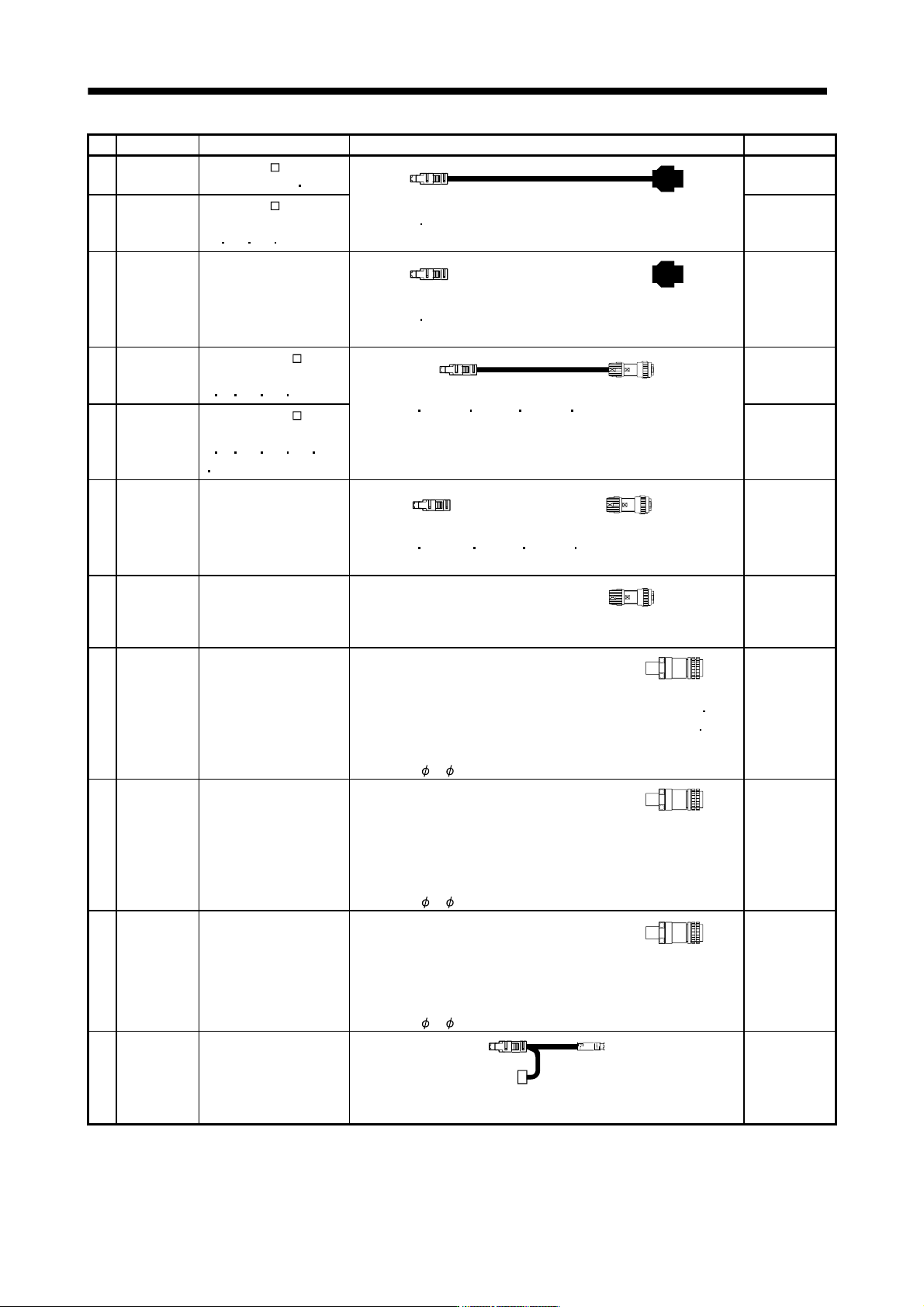

11 - 6
11. OPTIONS AND AUXILIARY EQUIPMENT
No Product Model Description Application
21) Encoder
cable
MR-EKCBL M-L
Cable length: 20
30m
For HF-MP HF-KP series
Refer to section 11.1.2 (2) for details.
IP20
22) Encoder
cable
MR-EKCBL M-H
Cable length:
20
30 40 50m
IP20
Long flex life
23) Encoder
connector
set
MR-ECNM
For HF-MP HF-KP series
Refer to section 11.1.2 (2) for details.
IP20
24) Encoder
cable
MR-J3ENSCBL M-L
Cable length:
2
5 10 20 30m
For HF-SP HC-UP HC-LP HC-RP HA-LP series
Refer to section 11.1.2 (4) for details.
IP67
Standard flex
life
25) Encoder
cable
MR-J3ENSCBL M-H
Cable length:
2
5 10 20 30 40
50m
IP67
Long flex life
26) Encoder
connector
set
MR-J3SCNS
IP67
For HF-SP HC-UP HC-LP HC-RP HA-LP series
Refer to section 11.1.2 (4) for details.
27) Brake
connector
set
MR-BKCNS1 Straight plug: CM10-SP2S-L
Socket contact: CM10-#22SC(S2)-100
(DDK)
For HF-SP series
IP67
28) Power
supply
connector
set
MR-PWCNS4 Plug: CE05-6A18-10SD-D-BSS
Cable clamp: CE3057-10A-1-D
(DDK)
Example of applicable cable
Applicable wire size: 2mm
2
(AWG14) to
3.5mm
2
(AWG12)
Cable finish
D: 10.5 to 14.1mm
For HF-SP51 81
For HF-SP52
152
IP67
29) Power
supply
connector
set
MR-PWCNS5 Plug: CE05-6A22-22SD-D-BSS
Cable clamp: CE3057-12A-1-D
(DDK)
Example of applicable cable
Applicable wire size: 5.5mm
2
(AWG10) to
8mm
2
(AWG8)
Cable finish
D: 12.5 to 16mm
For HF-SP121 to 301
For HF-SP202 to 502
IP67
30) Power
supply
connector
set
MR-PWCNS3 Plug: CE05-6A32-17SD-D-BSS
Cable clamp: CE3057-20A-1-D
(DDK)
Example of applicable cable
Applicable wire size: 14mm
2
(AWG6) to
22mm
2
(AWG4)
Cable finish
D: 22 to 23.8mm
For HF-SP421
For HF-SP702
For HA-LP702
IP67
Be sure to use
this when
corresponding
to EN
Standard.
31) Cable for
connecting
battery
MR-J3BTCBL03M
Refer to section 11.1.2 (5) for details.
For connection
of battery
