1 - 9 1. FUNCTIONS AND CONFIGURATIO N (2) Model Power supply MR J3 B Series Symbol Description -PX Indicates a servo amplifier of 11k to 22kW that does not use a regenerative resistor as standard accessory. With no regen…

1 - 8

1. FUNCTIONS AND CONFIGURATION

1.5 Model code definition

(1) Rating plate

MR-J3-10B

AC SERVO

POWER :

INPUT :

OUTPUT:

SERIAL :

100W

0.9A 3PH+1PH200-230V 50Hz

1.3A 1PH 200-230V 50/60Hz

170V 0-360Hz 1.1A

3PH+1PH200-230V 60Hz

A34230001

Model

Capacity

Applicable power supply

Serial number

Rated output current

1 - 9

1. FUNCTIONS AND CONFIGURATION

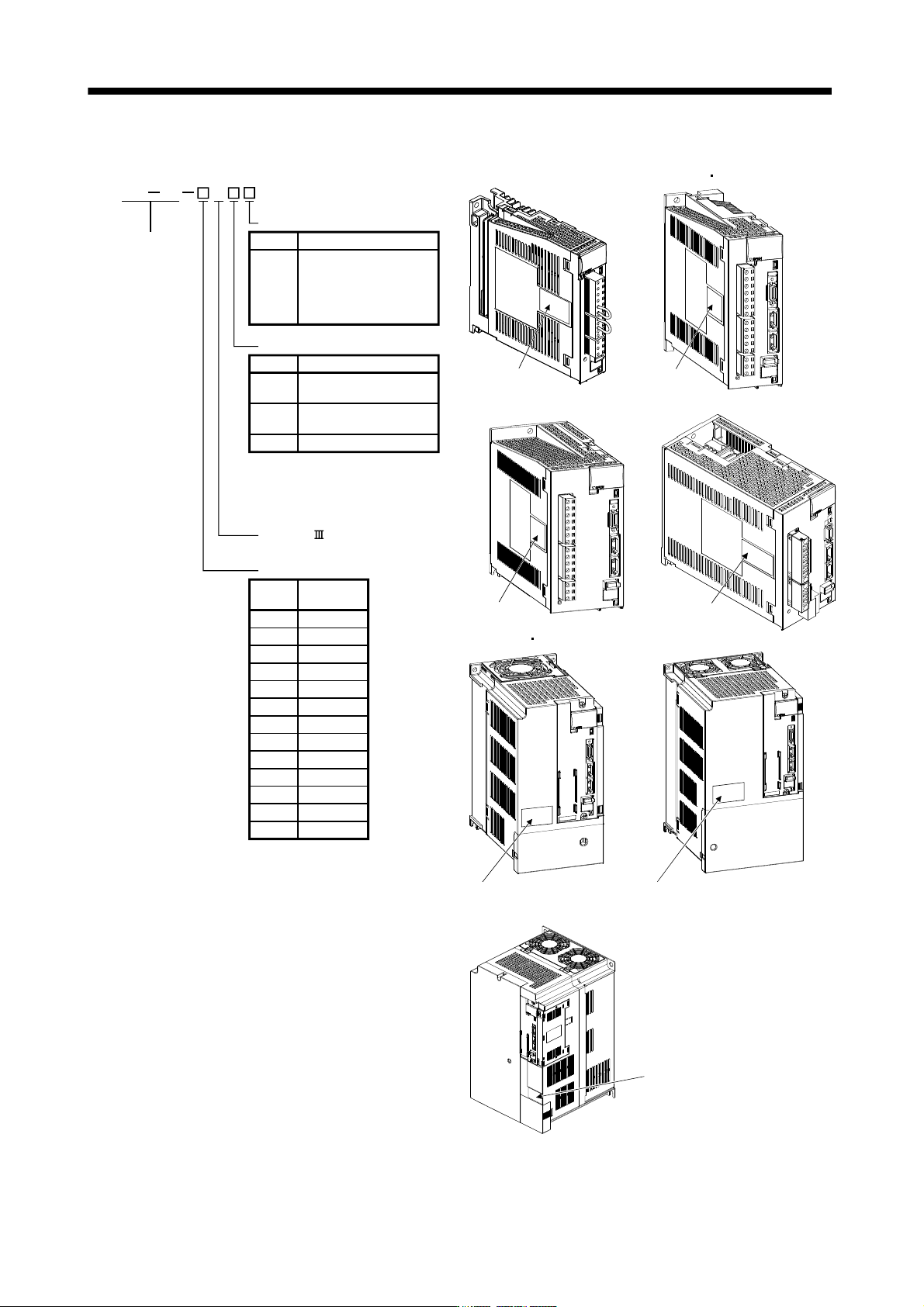

(2) Model

Power supply

MR J3 B

Series

Symbol Description

-PX

Indicates a servo

amplifier of 11k to 22kW

that does not use a

regenerative resistor as

standard accessory.

With no regenerative resistor

Symbol Power supply

3-phase or 1-phase 200

to 230VAC

1-phase 100 to 120VAC

(Note 1)

None

(Note 2)

4 3-phase 380 to 480VAC

Note 1. 1-phase 200 to 230V is

supported by 750W or less.

2. 1-phase 100 to 120V is

supported by 400W or less.

SSCNET interface

Rated output

Rated

output [kW]

Symbol

10 0.1

20 0.2

40 0.4

60 0.6

70 0.75

100 1

200 2

350 3.5

500 5

700 7

11K 11

15K 15

22K 22

Rating plate

MR-J3-60B4 100B4

MR-J3-11KB(4) to 22KB(4)

Rating plate

MR-J3-350B4 500B(4)

Rating plate

MR-J3-100B or less

Rating plate

MR-J3-700B(4)

Rating plate

MR-J3-200B(4)

Rating plate

MR-J3-350B

1 - 10

1. FUNCTIONS AND CONFIGURATION

1.6 Combination with servo motor

The following table lists combinations of servo amplifiers and servo motors. The same combinations apply to

the models with an electromagnetic brake and the models with a reduction gear.

Servo amplifier

Servo motors

HF-MP HF-KP

HF-SP

HC-RP

HC-UP HC-LP

1000r/min 2000r/min

MR-J3-10B (1) 053 13 053 13

MR-J3-20B (1) 23 23

MR-J3-40B (1) 43 43

MR-J3-60B 51 52 52

MR-J3-70B 73 73 72

MR-J3-100B 81 102 102

MR-J3-200B 121 201 152 202 103

153

152 152

MR-J3-350B 301 352 203 202 202

MR-J3-500B 421 502 353

503

352

502

302

MR-J3-700B 702

MR-J3-11KB

MR-J3-15KB

MR-J3-22KB

Servo amplifier

Servo motors

HA-LP

1000r/min 1500r/min 2000r/min

MR-J3-500B 502

MR-J3-700B 601 701M 702

MR-J3-11KB 801 12K1 11K1M 11K2

MR-J3-15KB 15K1 15K1M 15K2

MR-J3-22KB 20K1 25K1 22K1M 22K2

Servo amplifier

Servo motors

HF-SP

HA-LP

1000r/min 1500r/min 2000r/min

MR-J3-60B4 524

MR-J3-100B4 1024

MR-J3-200B4 1524 2024

MR-J3-350B4 3524

MR-J3-500B4 5024

MR-J3-700B4 7024 6014 701M4

MR-J3-11KB4 8014 12K14 11K1M4 11K24

MR-J3-15KB4 15K14 15K1M4 15K24

MR-J3-22KB4 20K14 22K1M4 22K24
