13 - 95
13. SERVO AMPLIFIERS WITH A LARGE CAPACITY
(
30k TO 55kW
)
2) When connecting two brake units to a converter unit
POINT
To use brake units with a parallel connection, use two sets of FR-BU2-(H)
brake unit. Combination with other brake unit results in alarm occurrence or
malfunction.
Always connect the master and slave terminals (MSG and SD) of the two
brake units.

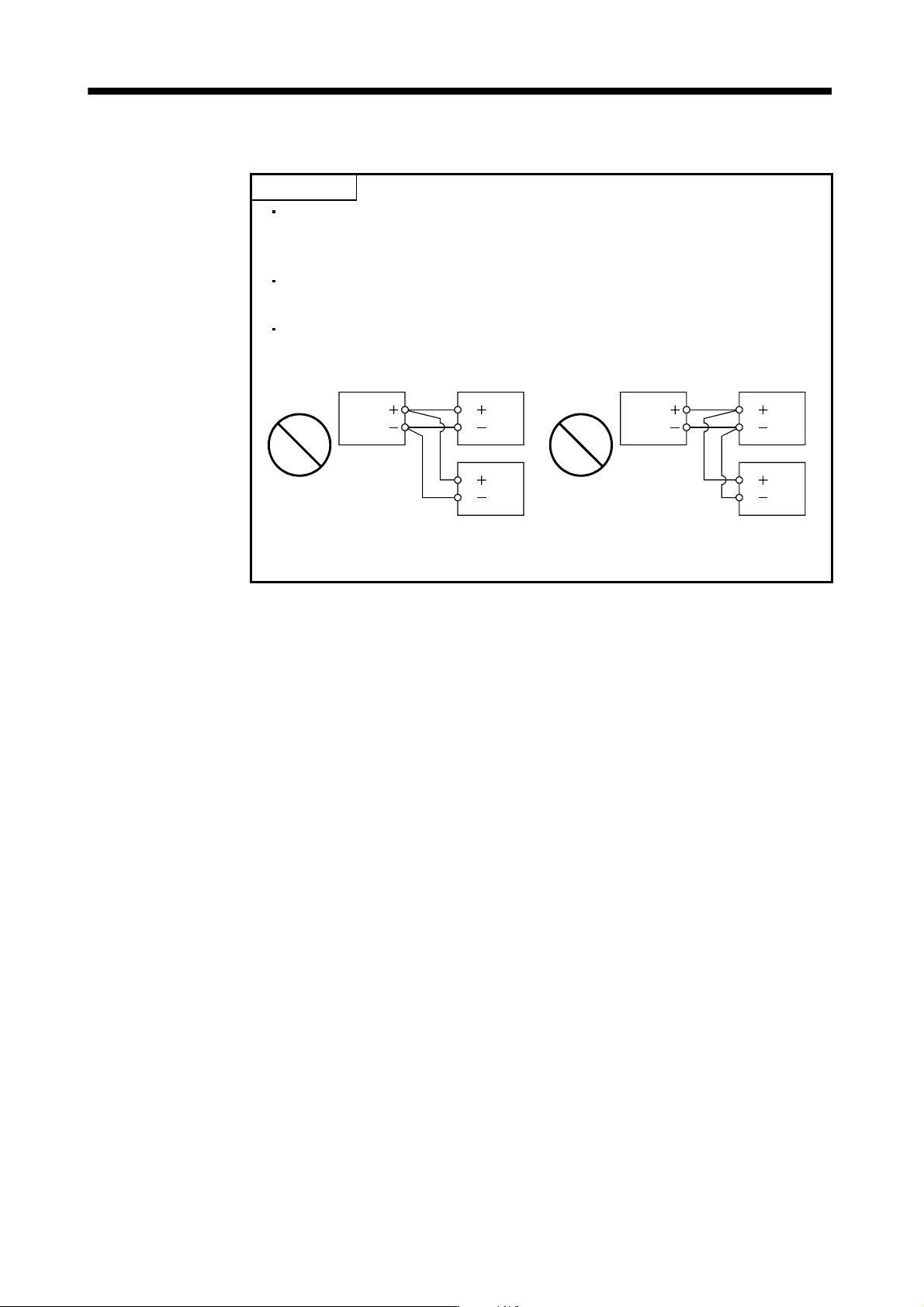

Do not connect the converter unit and brake units as below. Connect the
cables with a terminal block to distribute as indicated in this section.
N/
P/
Brake unit
Brake unit
Converter unit
L
L
N/
P/
Connecting two cables to
P and N terminals
N/
P/
Brake unit
Brake unit
Converter unit
L
L
N/
P/
Passing wiring

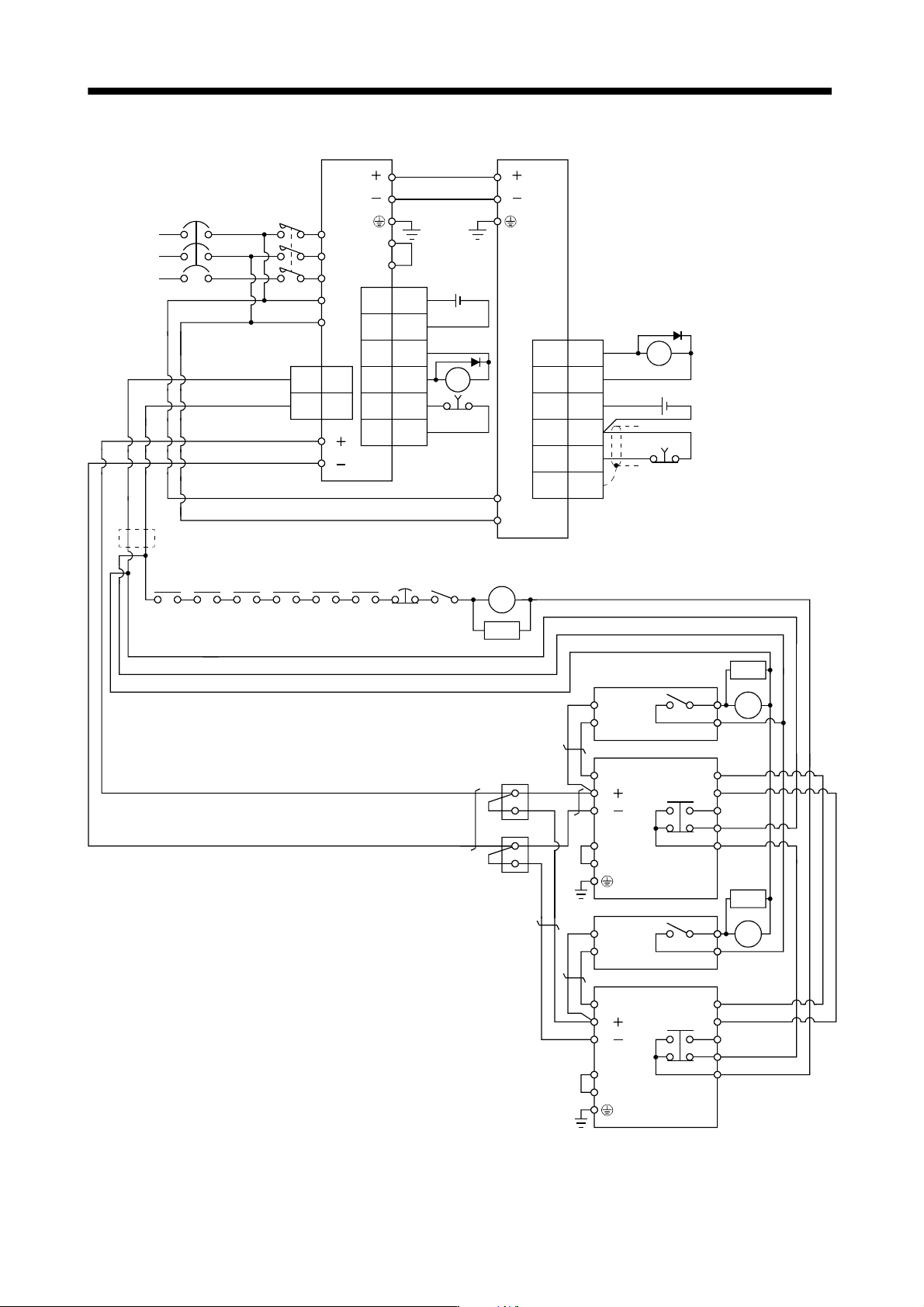

13 - 96
13. SERVO AMPLIFIERS WITH A LARGE CAPACITY
(
30k TO 55kW
)
NFB
Drive unitConverter unit
L1
L2
L
3
L11
L
21
(Note 1)
Power
supply
L
L
L
L
1MC1
2MC2
CNP1
EM1
3
20
SDPlate
DICOM
10
DOCOM
5
DICOM
ALM15
CN3
RA1
Forced stop
(Note 2)
MC
CN1
1
DICOM
5
DOCOM
6
DICOM
2ALM
7EM1
9
DOCOM
(Note 2)
RA2
L
11
L
21
(Note 5)
P1
P
2
(Note 3)
L
L
(Note 9)
RA1 RA2 RA3
Drive
unit
Converter
unit
Controller
forced stop
RA4
Servo motor
thermal relay
(Note 8)
MC
SK
(Note 2)
Forced stop
EM1
Operation
ready
OFF/ON
RA5 RA6
N/
P/
BUE
SD
PR
B
C
A
SD
MSG
(Note 4)
(Note 7)
FR-BU2-(H)
MT-BR5-(H)
P
PR
TH2
TH1
(Note 6)
(Note 12)
(Note 11)
(Note 10)
Terminal
block
SK
RA3
(Note 7)
N/
P/
BUE
SD
PR
B
C
A
SD
MSG
(Note 4)
FR-BU2-(H)
TH2
TH1
(Note 6)
MT-BR5-(H)
P
PR
(Note 11)
(Note 10)
SK
RA4
24VDC
24VDC
L
13 - 97
13. SERVO AMPLIFIERS WITH A LARGE CAPACITY
(
30k TO 55kW
)
Note 1. For power supply specifications, refer to section 13.1.3.
2. Configure the circuit to turn OFF the forced stop (EM1) of the drive unit and the converter unit at the same time.
3. Always connect P
1 and P2 terminals (Factory-wired). When using the power factor improving DC reactor, refer to section 13.9.6.
4. Connect P/
and N/ terminals of the brake unit to a correct destination. Wrong connection results in the converter unit and
brake unit malfunction.
5. For the converter unit and the drive unit of 400V class, a stepdown transformer is required.
6. Contact rating: 1a contact, 110VAC_5A/220VAC_3A
Normal condition: TH1-TH2 is conducting. Abnormal condition: TH1-TH2 is not conducting.
7. Contact rating: 230VAC_0.3A/30VDC_0.3A
Normal condition: B-C is conducting/A-C is not conducting. Abnormal condition: B-C is not conducting/A-C is conducting.
8. Connect the thermal relay censor of the servo motor.
9. Do not connect more than one cable to each L
and L terminals of TE2-1 of the converter unit.
10. Always connect BUE and SD terminals (Factory-wired).
11. Connect MSG and SD terminals of the brake unit to a correct destination. Wrong connection results in the converter unit and
brake unit malfunction.
12. For connecting L
and L - terminals of TE2-1 of the converter unit to the terminal block, use the cable indicated in (3) (d) of
this section.

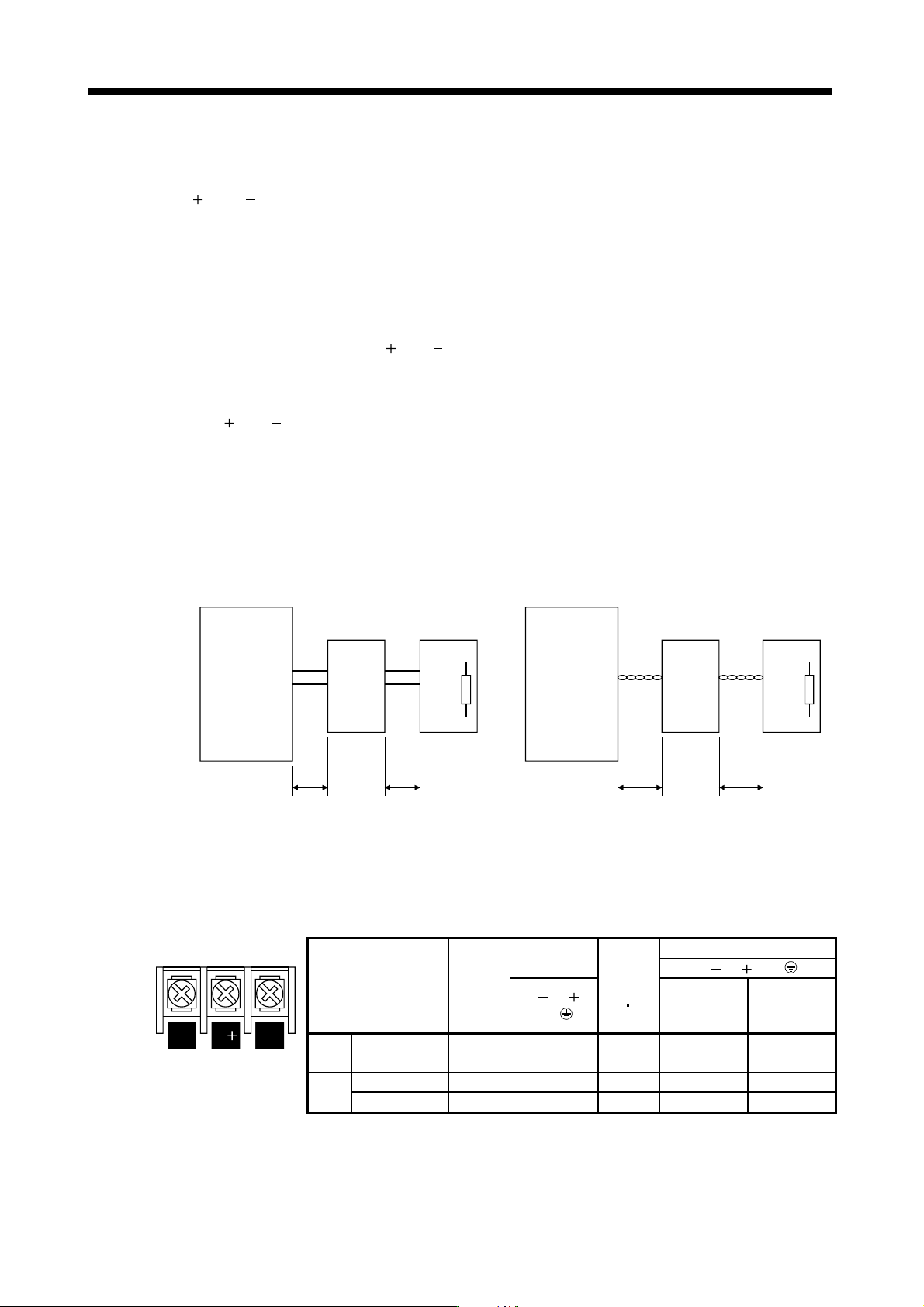

(c) Precautions for wiring
The cables between the converter unit and the brake unit, and between the resistor unit and the brake
unit should be as short as possible. Always twist the cable longer than 5m (twist five times or more per
one meter). Even when the cable is twisted, the cable should be less than 10m. Using cables longer
than 5m without twisting or twisted cables longer than 10m, may result in the brake unit malfunction.
Converter unit
Brake unit
5m or less 5m or less
Converter unit
Brake unit
10m or less 10m or less
P
N
P
N
P
PR PR
P
N
P
PR
P
PR
Twist
Resistor unit Resistor unit
P
N
Twist
P
(d) Cables
1) Cables for the brake unit
For the brake unit, HIV cable (600V grade heat-resistant PVC insulated wire) is recommended.
a) Main circuit terminal
N/ P/ PR
Terminal block
Brake unit
Main
circuit
terminal
screw
size
Crimping
terminal
Tightening
torque
[N
m]
Wire size
N/ , P/ , PR,
N/ , P/ ,
PR,
HIV wire
[mm
2
]
AWG
200V
class
FR-BU2-55K M6 14-6 4.4 14 6
400V FR-BU2-H55K M5 5.5-5 2.5 5.5 10
class FR-BU2-H75K M6 14-6 4.4 14 6
