3 - 44 3. SIGNALS AND WI RING Terminal box inside (HA-LP25K1) OHS2 OHS1 BW BV BU W V U Encoder connector CM10-R10P Thermal sensor terminal block Cooling fan terminal block (OHS1 OHS2) M4 screw (BU BV BW) M4 screw Motor p…
3 - 43
3. SIGNALS AND WIRING
Terminal box inside (HA-LP801(4) 12K1(4) 11K1M(4) 15K1M(4) 15K2(4) 22K2(4))
Thermal sensor
terminal block
(OHS1 OHS2)
M4 screw
Cooling fan terminal
block
(BU BV BW)
M4 screw
Encoder connector
CM10-R10P
Motor power supply
terminal block
(U V W) M8 screw
Earth terminal( )
M6 screw
Terminal block signal
arrangement
UVW
BU BV
OHS1OHS2BW
Terminal box inside (HA-LP15K1(4)
20K1(4) 22K1M(4))
Earth terminal M6 screw
Thermal sensor
terminal block
Cooling fan
terminal block
Motor power supply
terminal block
(OHS1 OHS2) M4 screw
(BU BV BW) M4 screw
(U V W) M8
CM10-R10P
Encoder connector
U
V
W
Terminal block signal arrangement
BV
UVW
BU
BW OHS1OHS2
3 - 44
3. SIGNALS AND WIRING

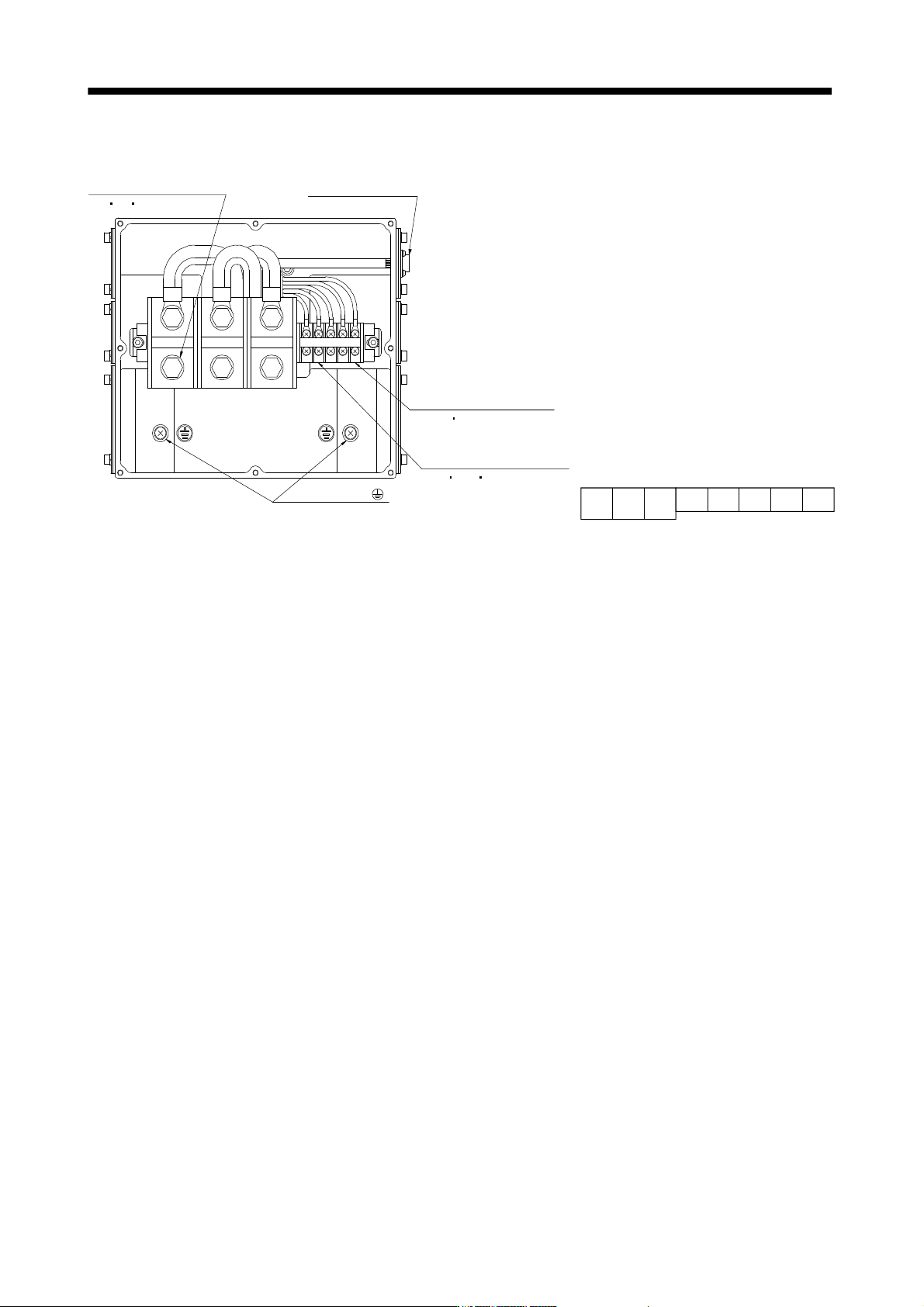

Terminal box inside (HA-LP25K1)
OHS2OHS1BWBVBU
WVU
Encoder connector
CM10-R10P
Thermal sensor terminal
block
Cooling fan terminal block
(OHS1 OHS2) M4 screw
(BU BV BW) M4 screw
Motor power supply
terminal block
(U V W) M10 screw
Earth terminal( )
M6 screw
Terminal block signal arrangement
BV
UVW
BU
BW OHS1OHS2
3 - 45
3. SIGNALS AND WIRING
Signal name
Abbreviation Description
Power supply
U
V W
Connect to the motor output terminals (U, V, W) of the servo amplifier. During power-on, do
not open or close the motor power line. Otherwise, a malfunction or faulty may occur.
Cooling fan
(Note)
BU
BV BW
Supply power which satisfies the following specifications.
Servo motor
Voltage
division
Voltage/
frequency
Power
consumption
[W]
Rated
current
[A]
HA-LP601, 701M,
11K2
200V
class
3-phase 200 to 220VAC
50Hz
3-phase 200 to 230VAC
60Hz
42(50Hz)
54(60Hz)
0.21(50Hz)
0.25(60Hz)
HA-LP801, 12K1,
11K1M, 15K1M,
15K2, 22K2
3-phase 200 to 230VAC
50Hz/60Hz
62(50Hz)
76(60Hz)
0.18(50Hz)
0.17(60Hz)
HA-LP15K1, 20K1,
22K1M
65(50Hz)
85(60Hz)
0.20(50Hz)
0.22(60Hz)
HA-LP25K1
120(50Hz)
175(60Hz)
0.65(50Hz)
0.80(60Hz)
HA-LP6014, 701M4,
11K24
400V
class
1-phase 200 to 220VAC
50Hz
3-phase 200 to 230VAC
60Hz
42(50Hz)
54(60hz)
0.21(50Hz)
0.25(60Hz)
HA-LP8014, 12K14,
11K1M4, 15K1M4,
15K24, 22K24
3-phase 380 to 440VAC
50Hz
3-phase 380 to 480VAC
60Hz
62(50Hz)
76(60Hz)
0.14(50Hz)
0.11(60Hz)
HA-LP15K14,
20K14, 22K1M4
3-phase 380 to 460VAC
50Hz
3-phase 380 to 480VAC
60Hz
65(50Hz)
85(60Hz)
0.12(50Hz)
0.14(60Hz)
HA-LP25K14 110(50Hz)
150(60Hz)
0.20(50Hz)
0.22(60Hz)
Motor thermal relay
OHS1 OHS2
OHS1
OHS2 are opened when heat is generated to an abnormal temperature.
Maximum rating: 125V AC/DC, 3A or 250V AC/DC, 2A
Minimum rating: 6V AC/DC, 0.15A
Earth terminal
For grounding, connect to the earth of the control box via the earth terminal of the servo
amplifier.
Note. There is no BW when the power supply of the cooling fan is a 1-phase.
