9. OUTLINE DRAWINGS
9.2 Connector
(1) CN1A
CN1B connector
[Unit: mm]
F0-PF2D103 F0-PF2D103-S
2.3
20.9 0.2
1.7
4.8
13.4
15
6.7
9.3
17.6 0.2
8
2.3
1.7
4.8
13.4
15
6.7
9.3
17.6 0.2
20.9 0.2
8

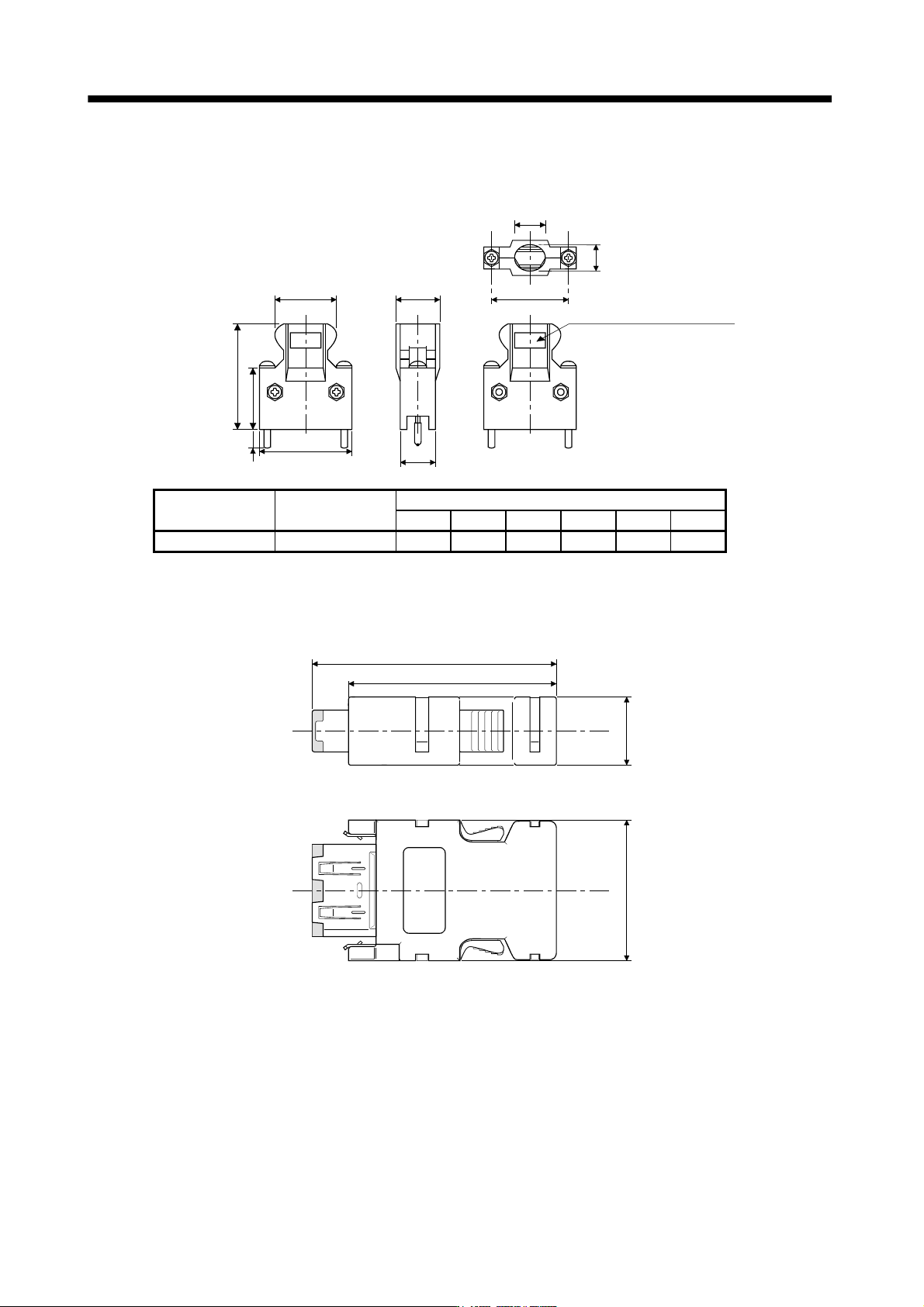

(2) Miniature delta ribbon (MDR) system (3M)
(a) One-touch lock type
[Unit: mm]
E
B
A
23.8
39.0
12.7
C
Logo etc, are indicated here.
D
Connector Shell kit
Each type of dimension
A B C D E
10120-3000PE 10320-52F0-008 22.0 33.3 14.0 10.0 12.0
9 - 11
9. OUTLINE DRAWINGS
(b) Jack screw M2.6 type
This is not available as option.
[Unit: mm]
E
B
A
23.8
39.0
12.7
C
D
5.2
F
Logo etc, are indicated here.
Connector Shell kit
Each type of dimension
A B C D E F
10120-3000PE 10320-52F0-008 22.0 33.3 14.0 10.0 12.0 27.4
(3) SCR connector system (3M)
Receptacle : 36210-0100PL
Shell kit : 36310-3200-008
34.8
39.5
22.4
11.0
