11. OPTIONS AND AUXILIARY EQUIPMENT

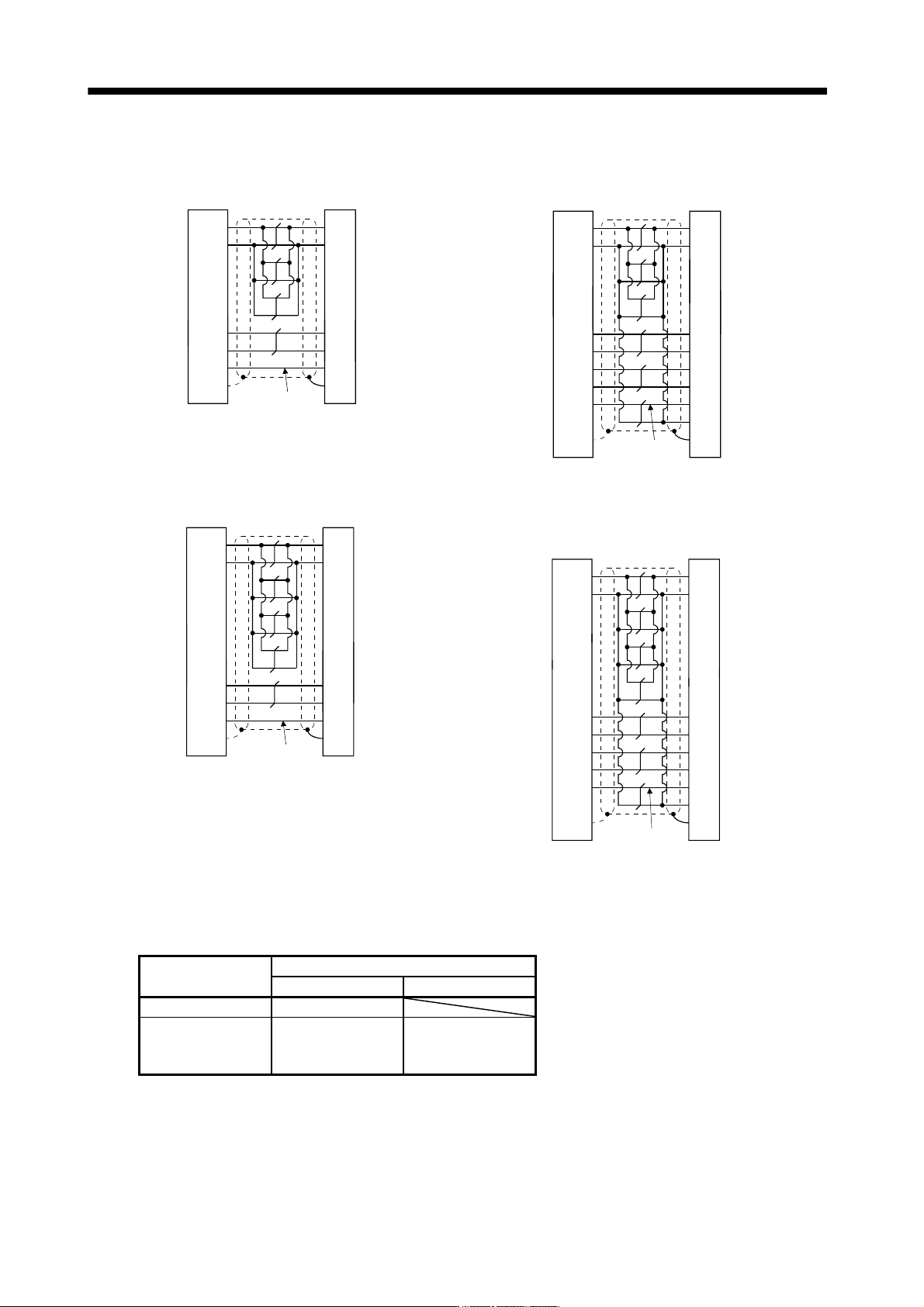

(b) Internal wiring diagram
MR-EKCBL20M-L
Servo amplifier side Encoder side
P5
LG
1
2
MR
MRR
3
4
3
7
9
SD Plate
1
2
8
9
P5G
MR
MRR
SHD
P5E
BATBAT
(Note)
MR-EKCBL30M-L
Servo amplifier side Encoder side
P5
LG
1
2
MR
MRR
3
4
MDR 8 5
3
7
4
MD 7
9
SD
1
2
8
9
P5G
MR
MRR
MDR
MD
SHD
P5E
6CONT
BATBAT
Plate
(Note)
MR-EKCBL20M-H
Servo amplifier side Encoder side
P5
LG
1
2
MR
MRR
3
4
3
7
9
SD
1
2
8
9
P5G
MR
MRR
SHD
P5E
BATBAT
(Note)
Plate
MR-EKCBL30M-H
MR-EKCBL40M-H
MR-EKCBL50M-H
Servo amplifier side Encoder side
P5
LG
1
2
MR
MRR
3
4
MDR 8 5
3
7
4
MD 7
9
SD
1
2
8
9
P5G
MR
MRR
MDR
MD
SHD
P5E
6CONT
BATBAT
(Note)
Plate
Note. Always make connection for use in an absolute position detection system. Wiring is not necessary for use in an incremental
system.
When fabricating the cable, use the wiring diagram corresponding to the length indicated below.
Cable flex life
Applicable wiring diagram
Less than 10m 30m to 50m
Standard MR-EKCBL20M-L
Long flex life MR-EKCBL20M-H MR-EKCBL30M-H
MR-EKCBL40M-H
MR-EKCBL50M-H
11 - 12
11. OPTIONS AND AUXILIARY EQUIPMENT
(c) When fabricating the encoder cable
When fabricating the cable, prepare the following parts and tool, and fabricate it according to the wiring
diagram in (b). Refer to section 11.8 for the specifications of the used cable.
Parts/tool Description
Connector set MR-ECNM
Servo amplifier side connector
Receptacle: 36210-0100PL
Shell kit: 536310-3200-008
(3M)
Or
Connector set: 54599-1019(Molex)
Encoder side connector
Housing: 1-172161-9
Connector pin: 170359-1
(Tyco Electronics or equivalent)
Cable clamp: MTI-0002
(Toa Electric Industries)
(3) MR-J3JCBL03M-A1-L
MR-J3JCBL03M-A2-L
The servo amplifier and servo motor cannot be connected with these cables only. The servo motor side
encoder cable (MR-EKCBL
M-L/H) is required.
Cable model Cable length
Protective
structure
Flex life Application
MR-J3JCBL03M-A1-L
0.3m IP20 Standard
For HF-MP HF-KP servo motor
Load side lead
Use in combination with MR-EKCBL
M-L/H.
MR-J3JCBL03M-A2-L For HF-MP HF-KP servo motor
Opposite-to-load side lead
Use in combination with MR-EKCBL
M-L/H.
11 - 13
11. OPTIONS AND AUXILIARY EQUIPMENT

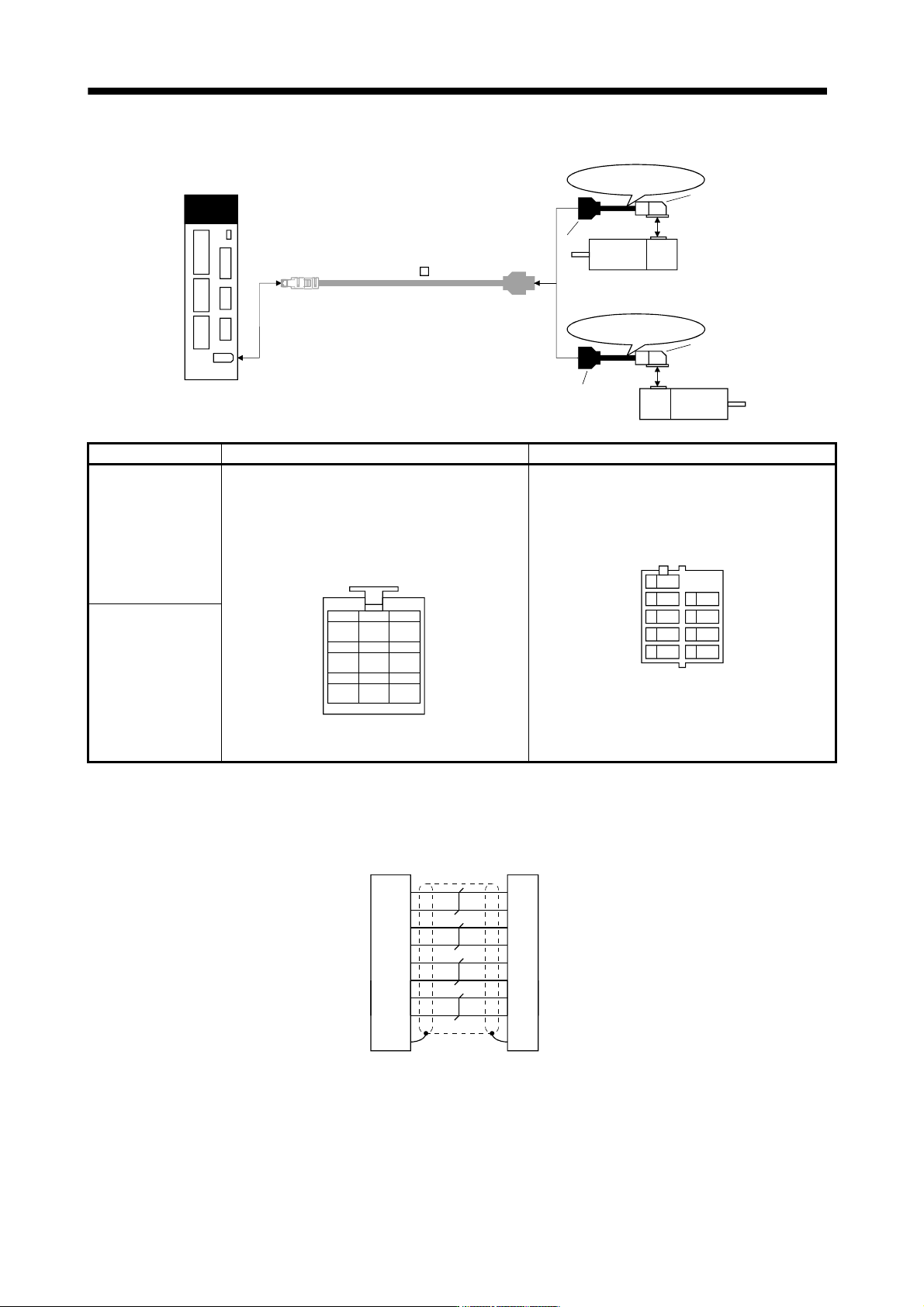

(a) Connection of servo amplifier and servo motor
Servo motor
HF-MP
HF-KP
MR-J3JCBL03M-A2-L
MR-EKCBL M-L/-H
1)
Servo amplifier
2)
Servo motor
HF-MP
HF-KP
MR-J3JCBL03M-A1-L
1)
2)
or
CN2
Cable model 1) Junction connector 2) For encoder connector
MR-J3JCBL03M-A1-L Housing: 1-172169-9
Contact: 1473226-1
Cable clamp: 316454-1
Crimping tool: 91529-1
(Tyco Electronics)
MR
123
MRR
BAT
MD
456
MDR
P5
789
LGSHD
Signal layout
View seen from wiring side.
CONT
Connector: 1674320-1
Crimping tool for ground clip: 1596970-1
Crimping tool for receptacle contact: 1596847-1
(Tyco Electronics)
9SHD
7MDR
5MR
3P5
1
CONT
8MD
6 P5G
4MRR
2BAT
View seen from wiring
Signal layout
MR-J3JCBL03M-A2-L
(b) Internal wiring diagram
P5
LG
7
8
MR
MRR
1
2
1
3
Junction
connector
Encoder side
connector
6
SHD
5
4
6
9
MR-J3JCBL03M-A1-L
P5G
MR
MRR
SHD
P5
CONTSEL
MD 4 8 MD
MDR 5 7 MDR
BAT 3 2 BAT
9
