3 - 19

3. SIGNALS AND WIRING

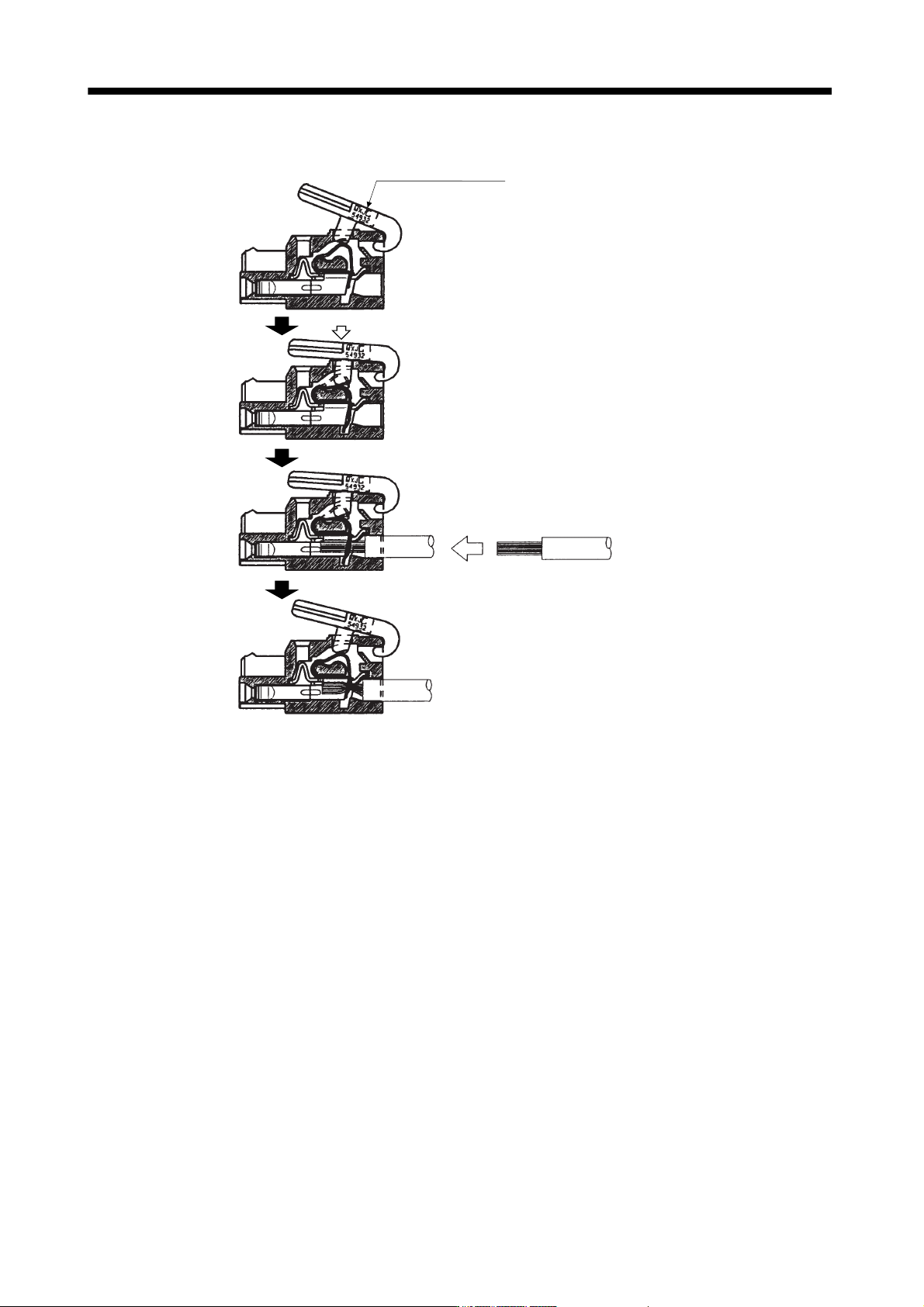

2) Cable connection procedure

1) Attach the cable connection lever to the housing.

(Detachable)

2) Push the cable connection lever in the direction

of arrow.

3) Hold down the cable connection lever and insert

the cable in the direction of arrow.

4) Release the cable connection lever.

Cable connection lever

3 - 20

3. SIGNALS AND WIRING

(b) Inserting the cable into the connector

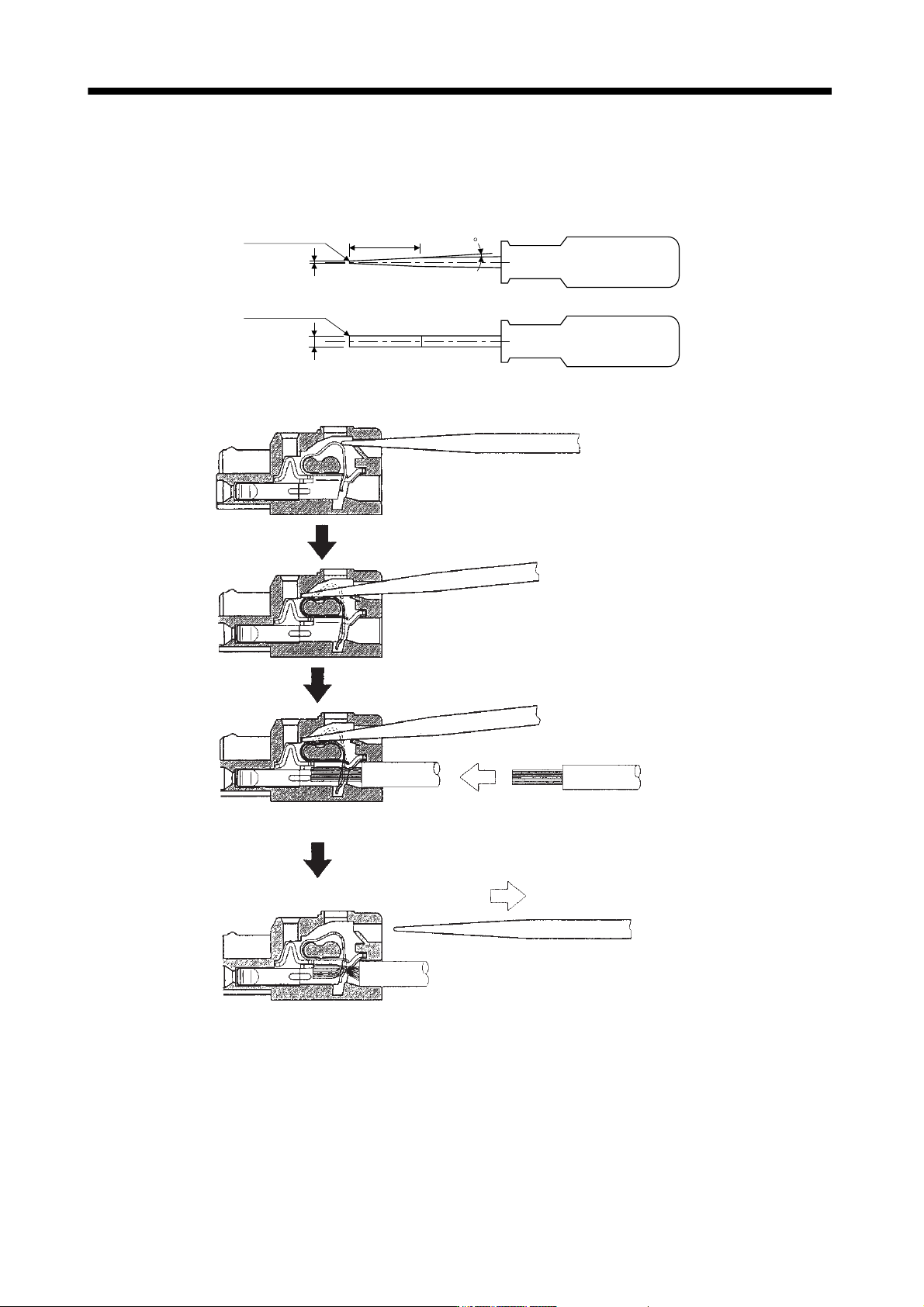

1) Applicable flat-blade screwdriver dimensions

Always use the screwdriver shown here to do the work.

[Unit: mm]

0.6

Approx. R0.3

Approx. 22

3 to 3.5

Approx. R0.3

2) When using the flat-blade screwdriver - part 1

1) Insert the screwdriver into the square hole.

Insert it along the top of the square hole to insert it smoothly.

2) If inserted properly, the screwdriver is held.

3) With the screwdriver held, insert the cable in the direction

of arrow. (Insert the cable as far as it will go.)

4) Releasing the screwdriver connects the cable.

3 - 21

3. SIGNALS AND WIRING

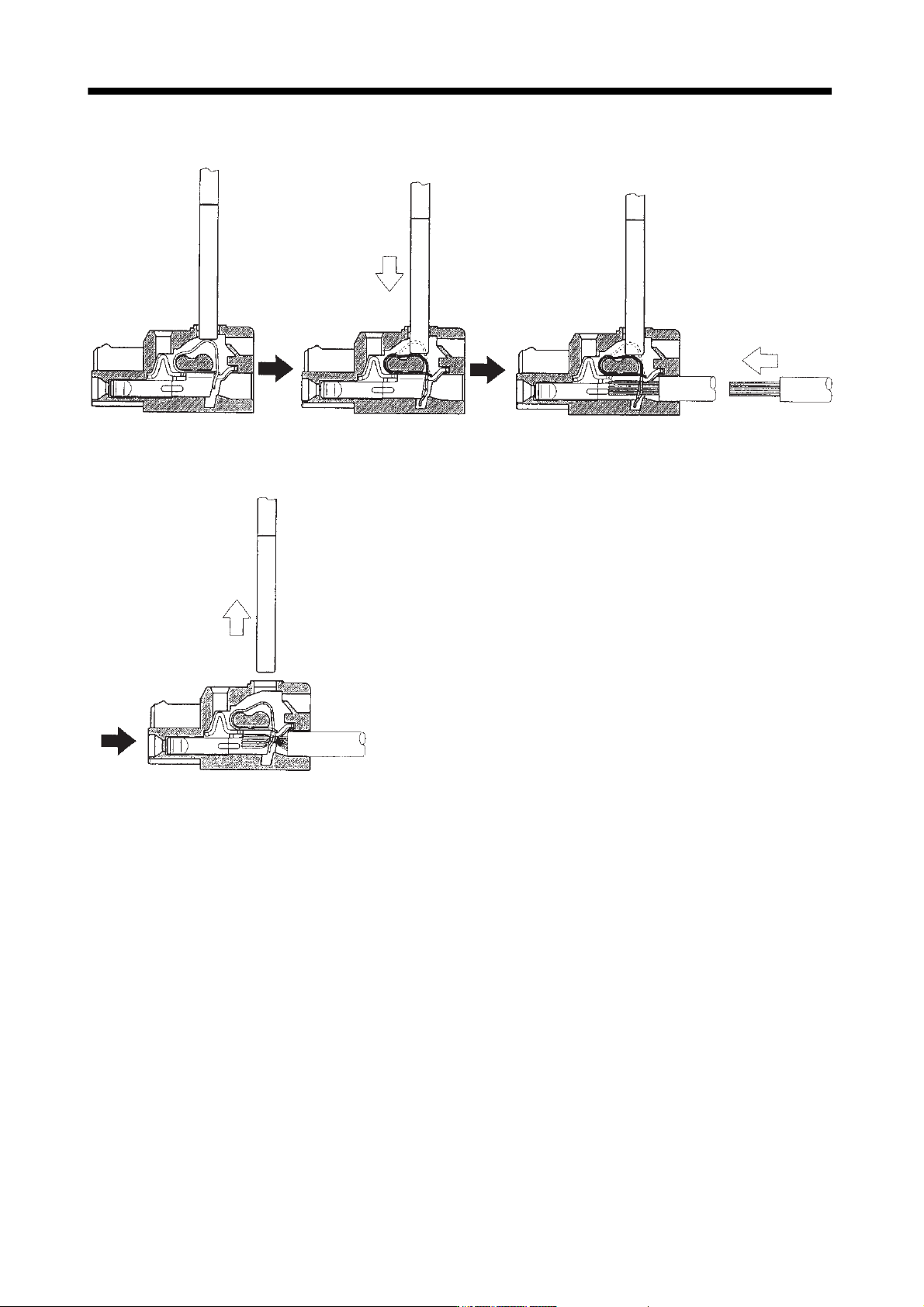

3) When using the flat-blade screwdriver - part 2

1) Insert the screwdriver into the

square window at top of the

connector.

2) Push the screwdriver in the

direction of arrow.

3) With the screwdriver pushed, insert the cable in the

direction of arrow. (Insert the cable as far as it will go.)

4) Releasing the screwdriver connects the cable.
