Tools Shortcut Menu

4.10. Docking Cart

Used to manipulate the movement of the front or rear side docking cart clamp when

applying the docking cart to the machine. Docking cart is option.

4.11. PM Manager

The PM Manager is a management menu that is used for the maintenance of the machine

in the MMI (Man-Machine Interface), an application program for machine operation. The

items to be inspected as well as check periods can be checked through the PM Manager,

and the machine can be managed more efficiently through the schedule check function.

For more details, refer to “Appendix. PM Manager” of the “Administrator’s Guide”

4-24

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

4.12. Data Logging

Selected when the Telemetry file is saved.

Use to record and manage various items related to the use of the machine. It is mainly

utilized to solve problems occurring in the machine using the log file recorded here.

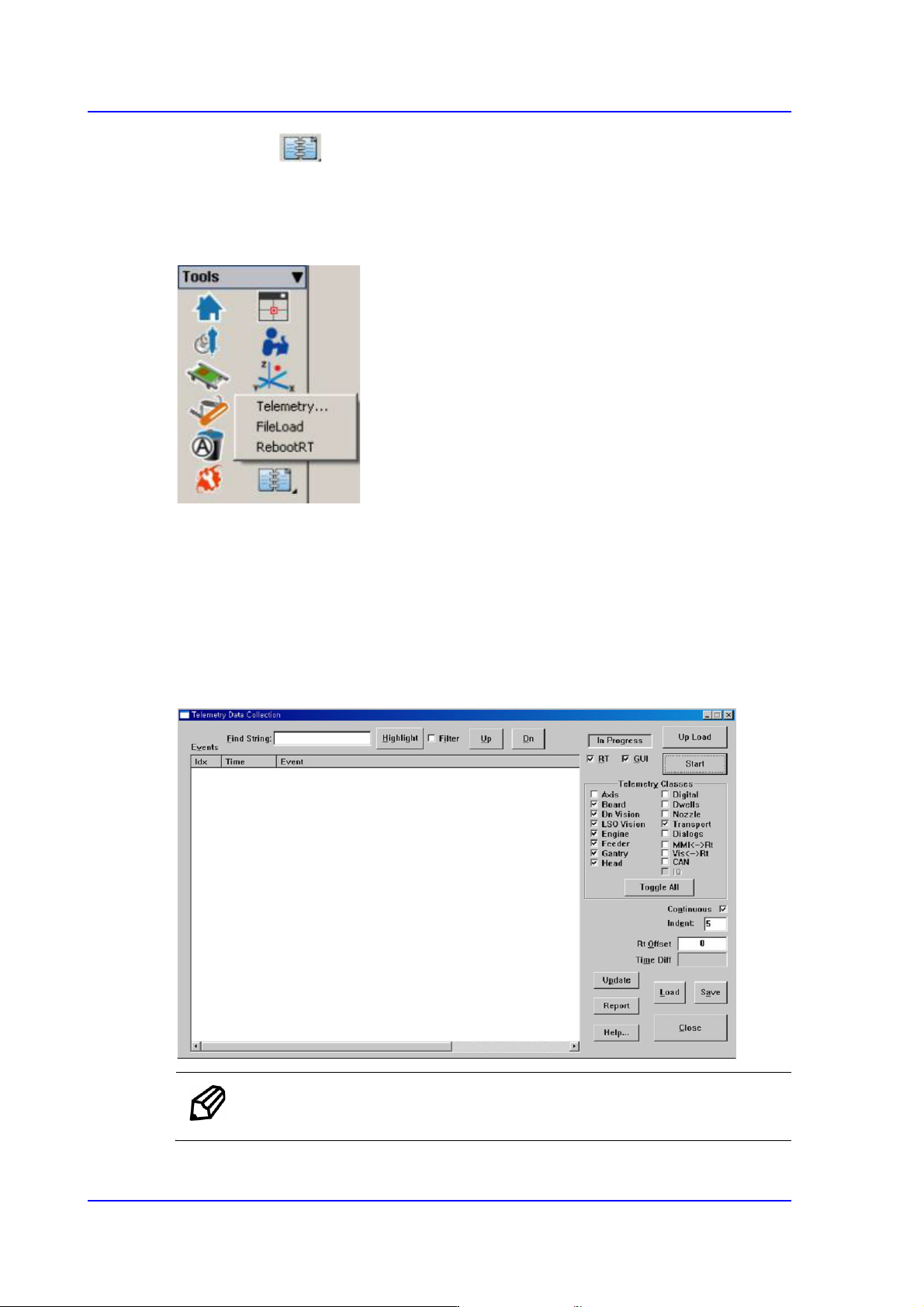

4.12.1. Telemetry

Used to record and manage various items related to the use of the machine. When a

problem occurs with the machine, this menu is mainly used to examine its cause, and to

solve the problem using the log file recorded here.

This menu is used to debug the machine. For more details, refer to “1.1 General

Troubleshooting Guide” in the Troubleshooting Guide.

Memo It is possible to save up to 50 telemetry files.

4-25

Tools Shortcut Menu

4.12.2. File Load

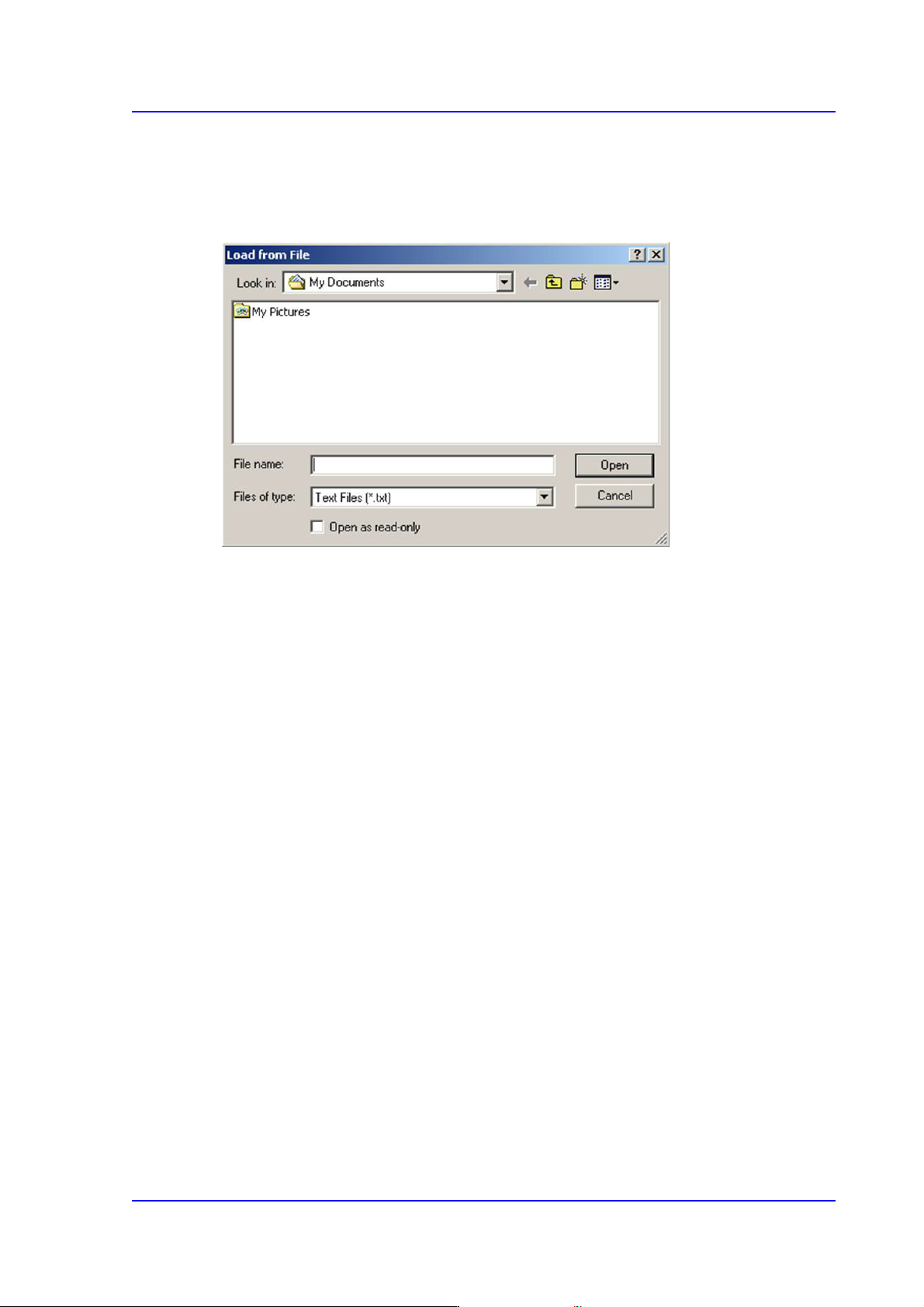

This menu is used to update the booting image of the RT. After selecting the image to be

updated, clicking the <Open> button will transmit the corresponding image from MMI to

RT. It is used in the service mode.

4.12.3. RebootRT

This menu is used to initialize the machine without rebooting it. It is used in the service

mode.

4.12.4. Mean TimeLog

Refers to the PCB production data log, which is one of the developer’s menus.
