7-43

Part Registration

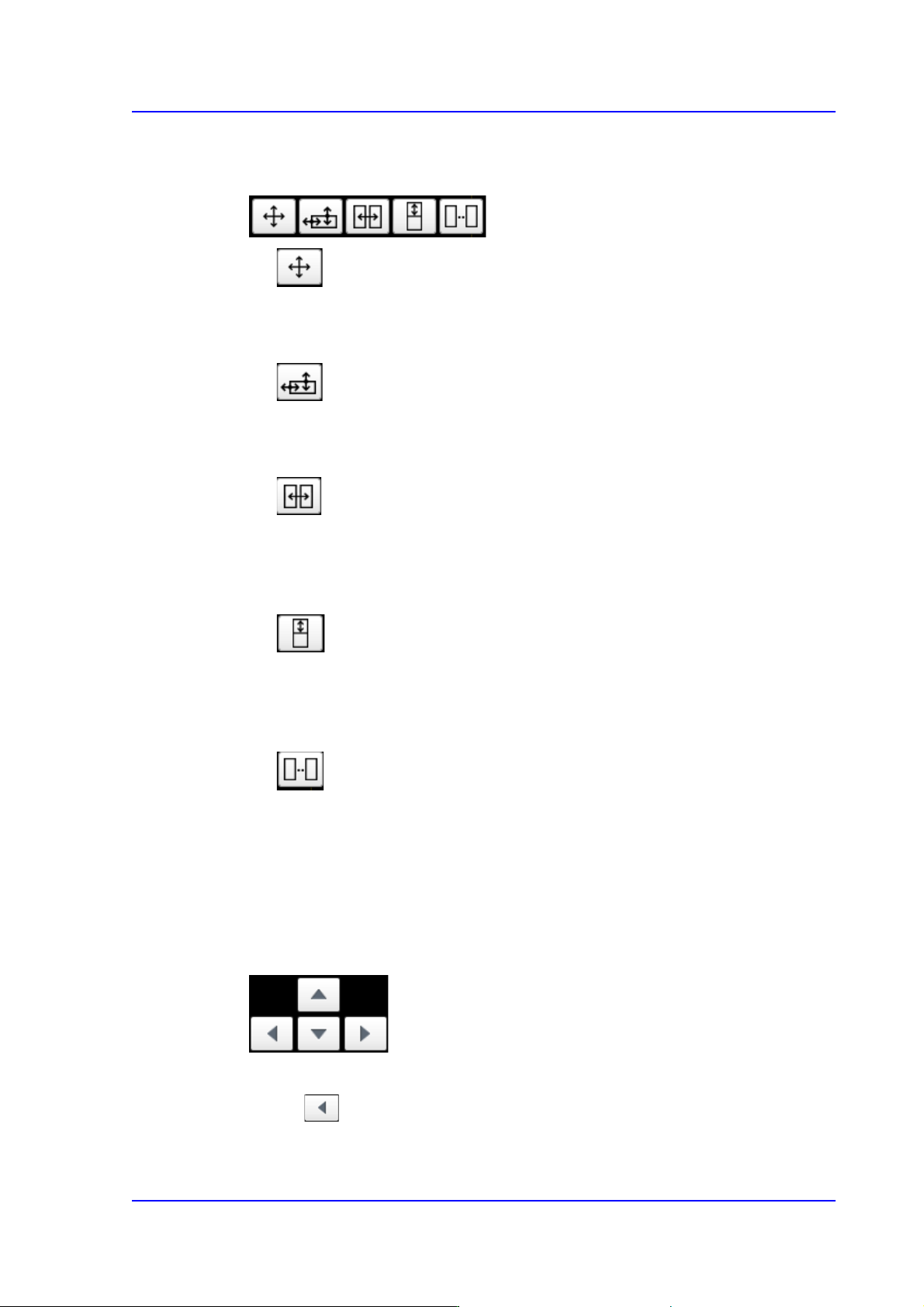

 Object Editing Icon button

Can be used when editing a shape object in the machine's panel monitor.

 Move Object

After pressing this button, select an object to be moved. It is then possible to move

the selected object using the Edit & Adjust Key.

 Adjust Object Size

After pressing this button, select an object whose size is to be adjusted. It is then

possible to adjust the size of the selected object using the Edit & Adjust Key.

 Adjust Lead Pitch

After pressing this button, select an object whose lead pitch is to be adjusted. It is

then possible to adjust the lead pitch of the selected object using the Edit & Adjust

Key.

 Adjust Lead Foot Length

After pressing this button, select an object whose lee foot size is to be adjusted. It

is then possible to adjust the lead foot size of the selected object using the Edit &

Adjust Key.

 Adjust Lead Num

After pressing this button, select an object whose Lead Num (lead count) is to be

adjusted. It is then possible to adjust the Lead Num(lead count) of the selected

objects using the Edit & Adjust Key.

 Edit Adjust Key

After selecting the Edit Object icon button, it is possible to move the corresponding

object and adjust the related properties of the object using the Edit Adjust Key.

 Move Object

 :Moves an object to the left

7-44

SM PLUS Administrator’s Guide

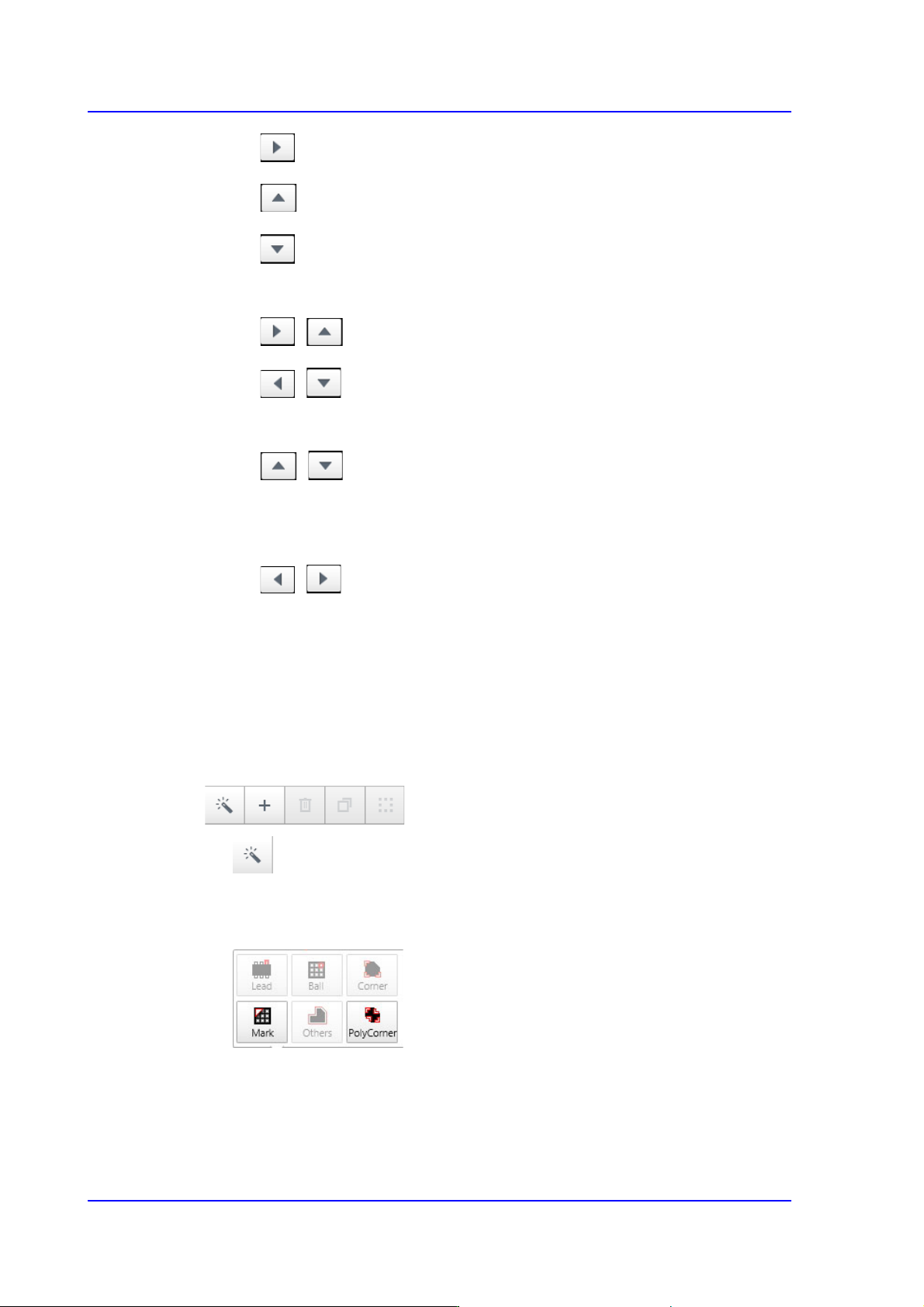

 :Moves an object to the right

 :Moves an object up

 :Moves an object down

 Object Size/ Pitch/ Foot Length

 / :Adjusts the value so that it will increase.

 / :Adjusts the value so that it will decrease.

 Lead Num/ Corner Width and Length

 /

Increases/ decreases the value when the leads are on or beneath the body.

Increases/ decrease the corner length.

 /

Increases/ decreases the value when the leads are at the left or right of the

body

Increases/ decrease the corner width.

 ‘Button’ Menu

Performs partial automatic recognition, adds an object, copies and deletes an object,

and performs object grouping.

 button

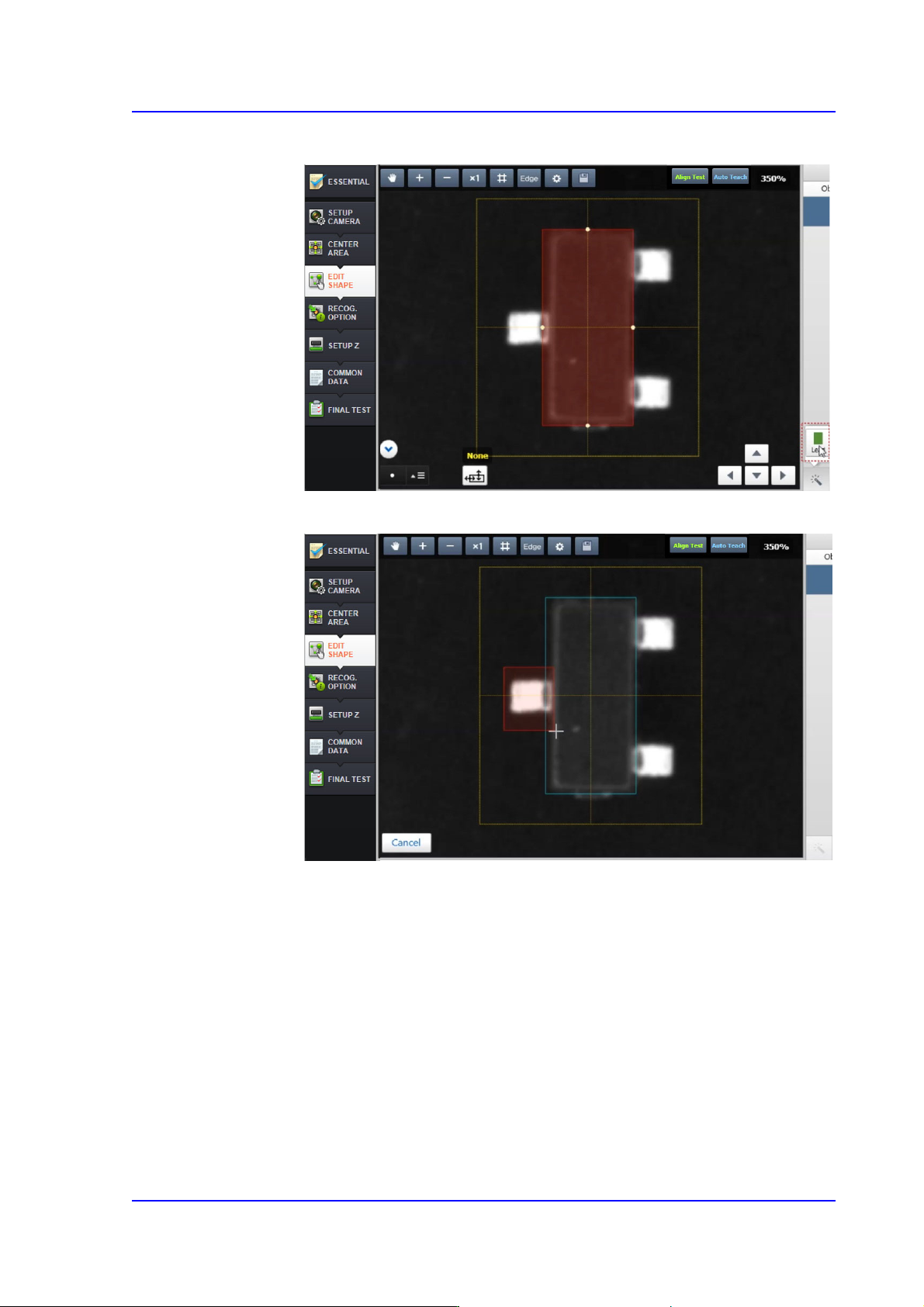

Automatically recognizes the part shape partially in the area selected by the user

from the vision window.

7-45

Part Registration

1) Select a shape object to be added (Lead)

2) Drag and select the area to be recognized partially using the mouse
