Multi-Functional Placer SM482( L) PLUS Administrator’s Guide vi Do not put a hand in during operation. Part where this label is att ached contains moving part s, it is very dangerous if the user disassembles any part or …
Preface
v
Rear View of the Machine
The following labels are attached on the rear part of this machine.
Figurei.2 Safety labels attached on the rear part of the machine
Do not open the door during operation.
Part where this label is attached contains
moving parts, it is very dangerous if the user
open the cover while operating.
As the current with high-voltage flows inside
the cover or in the area near the switch,
take precautions against electric shock.
Be sure to turn off the main switch in the
left-lower cover of the rear side before
maintenance.
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
vi
Do not put a hand in during operation.
Part where this label is attached contains
moving parts, it is very dangerous if the user
disassembles any part or opens the cover
while operating.
Stop the machine before servicing.
Stop the machine before maintenance or
error troubleshooting.
Do not modify the door key.
Unauthorized modification of the door key is
prohibited. It may be dangerous.
Danger
Be careful of electric shock.
Turn off the main switch before performing
maintenance since fatal personnel injury
may occur. Be careful of the residual
current.
Warning
When the equipment is shipped, the voltage
of the equipment is set to AC380V. Make
sure to check this before connecting the
power.
Machine Name Plate
It specifies the model name and serial
number of the equipment, and basic
equipment specifications.
Check the pneumatic and voltage
specifications specified on the nameplate
and operate the equipment in compliance
with the specifications.
Preface
vii
Internal Part of the Machine.
The following labels are attached on the rear part of this machine.

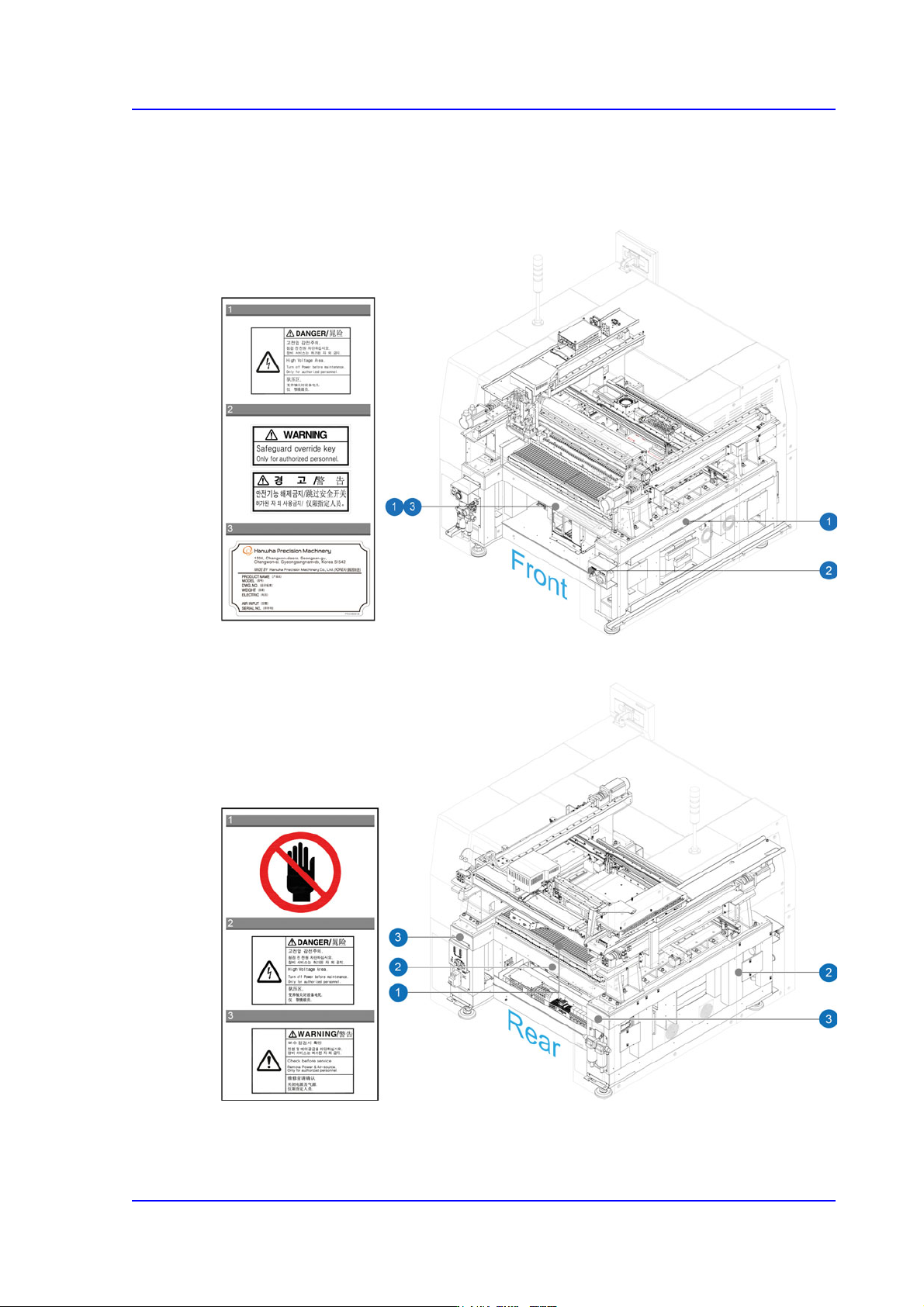

Figurei.3 Safety labels attached to the inside of the machine at the front
Figurei.4 Safety labels attached on the inside of the machine at the rear
