12-2
Multi-Functional Placer SM482(L) Administrator’s Guide
Memo Even though fiducial mark teaching is performed by changing the
workstation, all placement coordinates, fiducial mark coordinates and
the coordinates of various marks are always constant because the
relative distance from the origin is taught.
12-3
LED placement
12.2. LED part registration
When registering an LED part, click the <New Part> button in the “Register Part” dialog
box to execute the “Create New Part/ Edit Selected Part” dialog box.

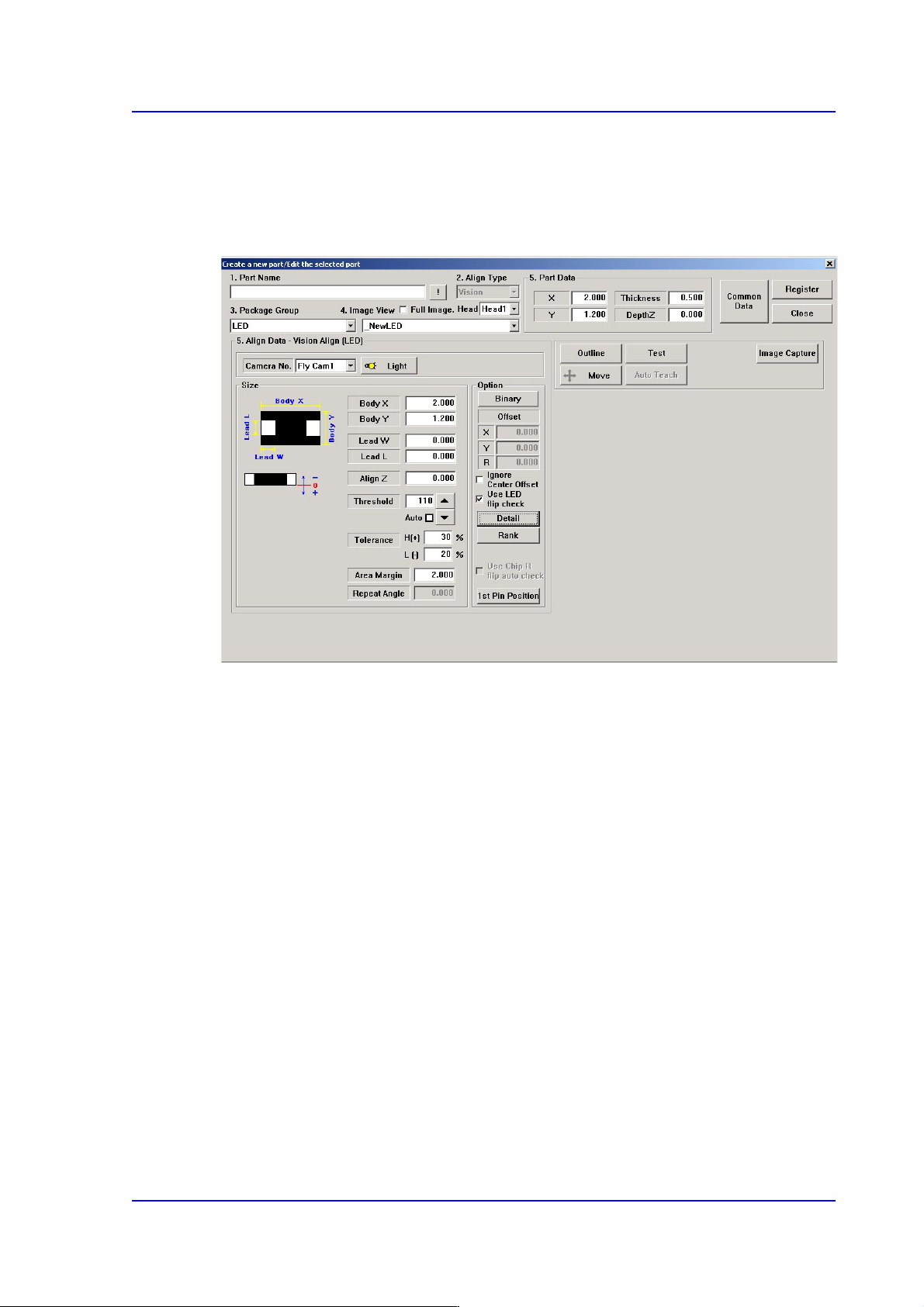

Figure12.1 “Create a new part/Edit the selected part” dialog box
Major options for LED part recognition are as follows:
<Use LED flip check> check box
This is selected to use the function that checks the turnover of the LED. This is applied
only to Chip-R, Chip-C, Chip-circle, Chip-tantal, Chip-aluminum, Melf, LED, etc.
For more details, refer the “<Detail> button”.
12-4
Multi-Functional Placer SM482(L) Administrator’s Guide
<Detail> button
Executes the following dialog box used to set the details for the “Use LED flip auto
check”. This button is enabled only when the <Use LED flip auto check> check box is
selected.
Figure12.2 “LED direction check” check box
Set the White area of the LED in the ‘Area 1’ tab dialog box.
Center X
Refers to the coordinate in the X direction of the White area based on the part
center. (Refers to the figure in the dialog box)
Center Y
Refers to the coordinate in the Y direction of the White area based on the part
center. (Refers to the figure in the dialog box)
Size X
Size of the tetragonal area in the X direction (mm)
Size Y
Size of the tetragonal area in the Y direction (mm)
Brightness
Refers to the reference value of the White area. The White area with a value
less than the reference value can be considered normal. Generally, it has a
value of 200 and above.
