Part Registration

 <Polarity Direction> combo box

Selects the direction of the polarity.

Figure7.4 Polarity Position (Triangle )

Figure7.5 Polarity Position (Line )

 <Reel Type> combo box

Selects the tape reel type of the tape feeder.

 <Part R> combo box

If the direction of part supply from the feeder is different from the part direction

when the part was registered, sets the angle at which the part supplied from the

corresponding feeder is picked.

In order to prevent the occurrence of a part recognition error, the part direction

when the part was registered must be the same as the direction when the part was

picked up by applying part R.

7-20

SM PLUS Administrator’s Guide

7.2.2.2. SETUP CAMERA

Sets the lighting value of the camera recognizing a part.

1: Thumbnail Image

 <Vision Source> group

Selects the source of a vision image.

 <Device Camera> switch Button

Selected in cases to used the camera image of the Parts registration device as the

source of the vision image.

 <Open an image> switch Button

Selected in cases to use the saved part image as the source of the vision image.

 <Browse...> button

Enabled only when the <Image open> switch button is selected. Executes the

dialog box so that the saved part image can be selected.

 <Light Level Preset> area

It is possible to view a part image at the lighting value recommended depending on the

part group selected from the <Part Category> group.

 <Run> button

Captures the part image according to the recommended lighting value and shows it

in the 'Thumbnail Image' area.

7-21

Part Registration

If it starts to capture the part image by clicking the <Run> button, this button is

changed to the <Stop> button.

 'Thumbnail Image' area

Displays the thumbnail image of the part captured according to the lighting value.

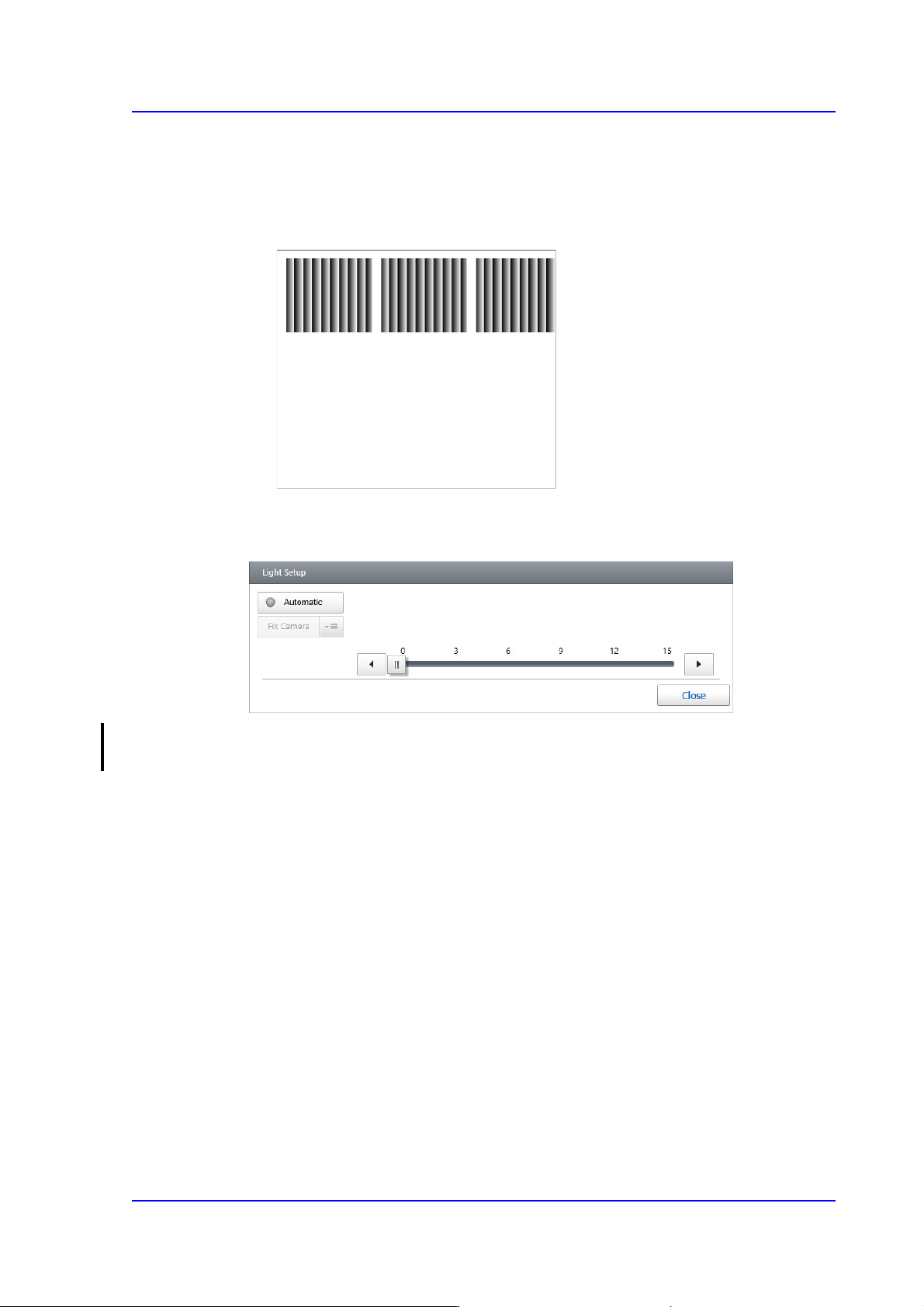

 <Light Setup> group

Sets the lighting value of the camera recognizing a part.

 <Automatic> switch button

Selected when the camera to recognize the part is set automatically.

 <Image Refresh> button

Refresh the image of the displayed part in the vision window.
