8-14

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

 <Enable Home Offset> check box

When this check box is selected, the MMI reads the Y offset value from the IT Feeder

System and corrects the Y coordination of the pickup point. Therefore, this function

can be used only when the IT Feeder System and Device Net board are installed in the

machine.

 <Display> button

Displays the shape of the feeder that is installed on the feeder base graphically.

8-15

Feeder Setup

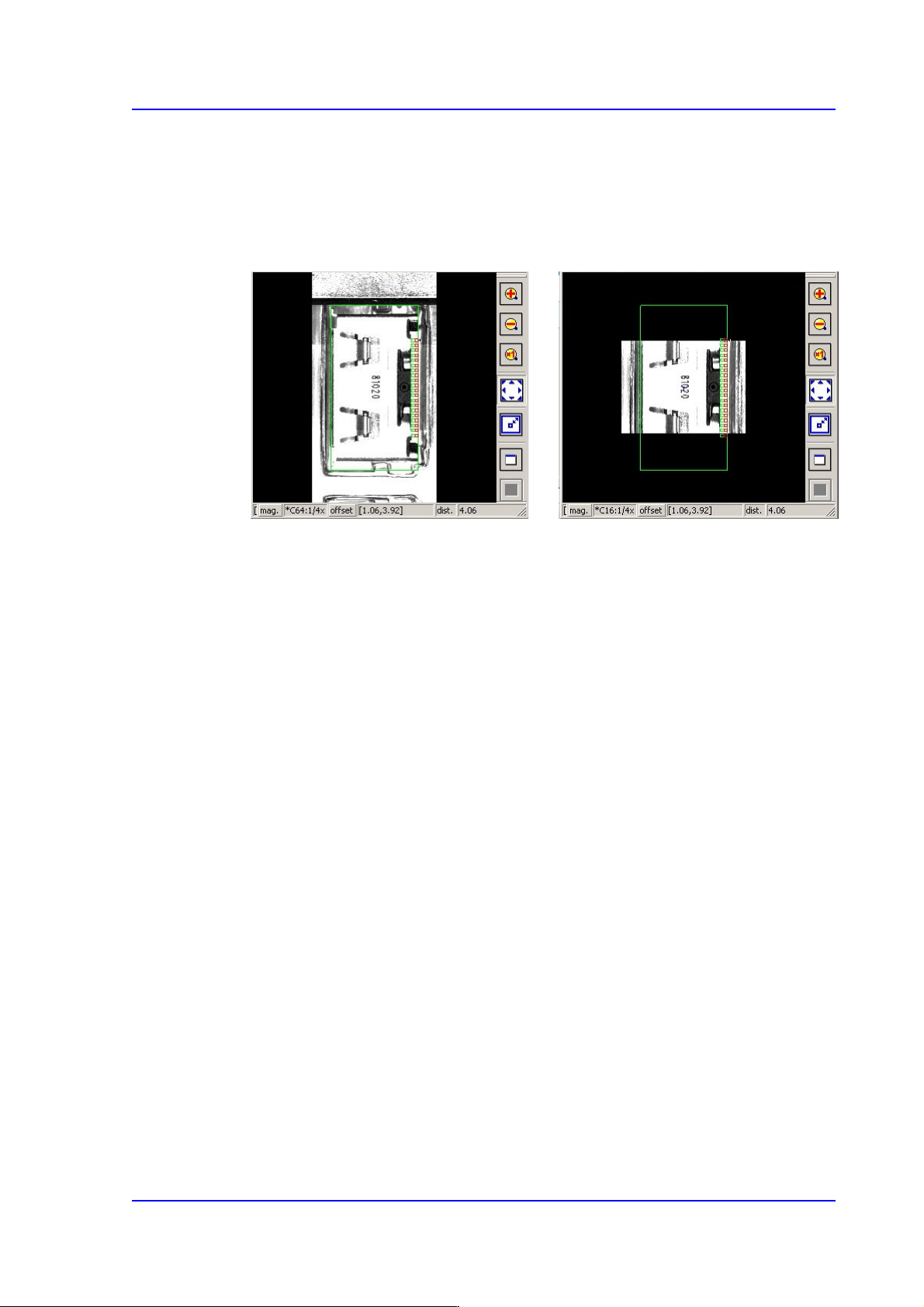

 <Panorama View> button

In the case of a large part for which pocket teaching is impossible, its entire shape is

not displayed in the vision window. In this case, it is possible to display the part shape

in on one vision window by performing split recognition of the part shape and

composing the split images into one using this function.

 <Cancel> button

Close the dialog box.

Panorama General

8-16

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

8.1.2. Stick Unit

Install stick feeder and set data on the stick feeder. When “Stick Unit” is selected, the

initial screen looks as follows.

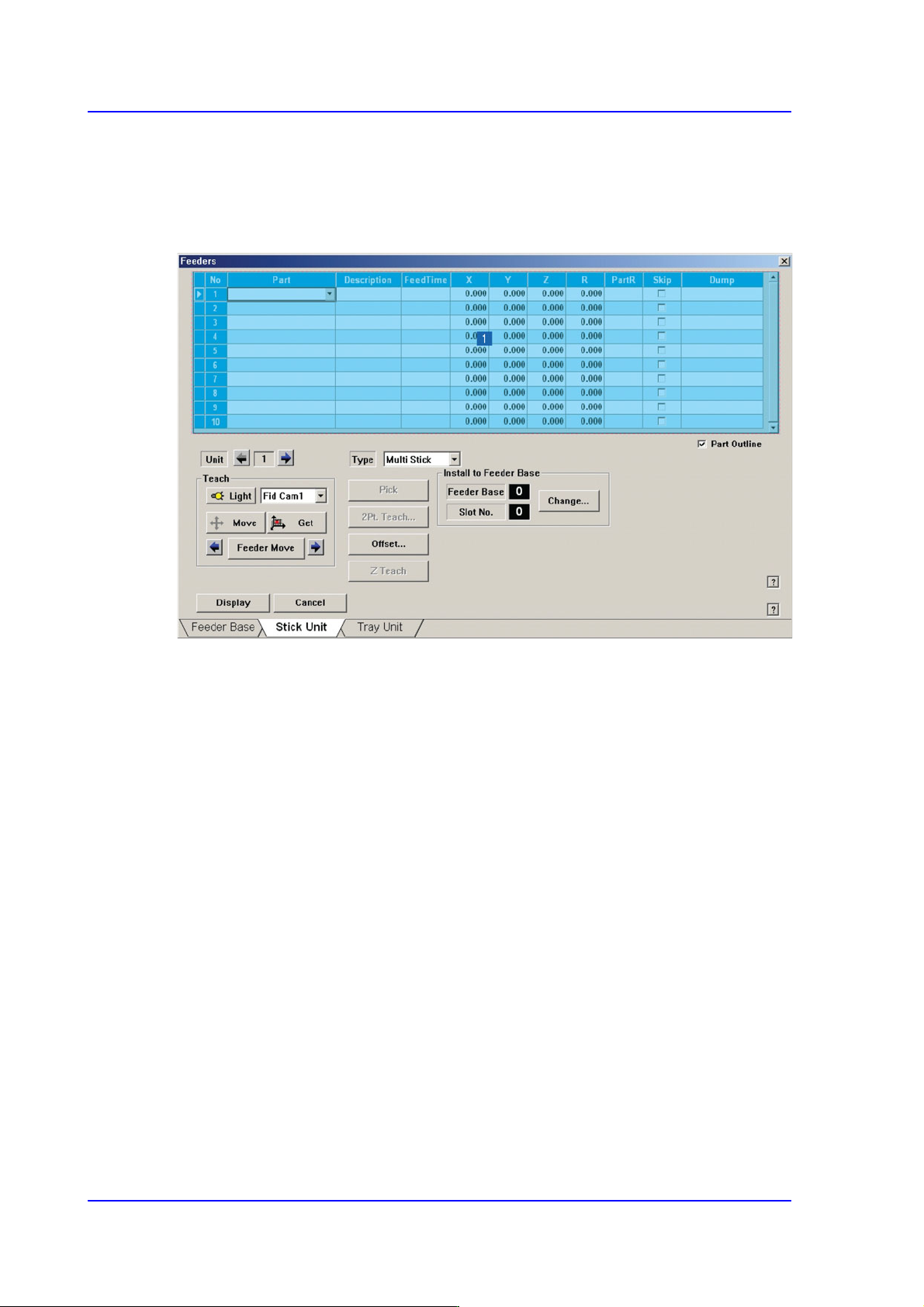

Figure8.7 “Stick Unit” dialog box

1: Grid

 ‘Grid’ group

Create and edit data according to the stick unit type selected in the <Type> combo

box.

 <No> column

A serial number of the stick unit slots. The number of slots of the stick feeder is as

follows. Serial number is created depending upon the number of slots.

 Multi Stick - Max. 10 sets

Feeds up to 10 parts at a time.

 <Part> column

Select the part to install in the corresponding slot. When the <Part> column is

clicked on, a Combo Box is displayed, and of the components registered in <1.2

Part>, a list of parts to be supplied to “Stick” are displayed. Select the component

to install in this list. Next is a screen showing component selection in the Combo

Box of <Part> column.
