Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
xvi
Placement Accuracy
The placement precision for applicable components type is shown in the following table,
and is applicable to general components usage as well.
The degree of placement may be different according to the composition of options for the
camera used for recognition of parts.
Classification XY R Cpk Remarks
Chip 0402 ± 0.04
mm
± 5.00 ° 1.0 Flying Vision MEGA FOV16
mm, Mount Offset
Chip 0603 ± 0.08
mm
± 5.00 ° 1.0 Flying Vision(Mega-
FOV25mm, Non-Mega-
FOV16mm)
Chip 1005 ± 0.10
mm
± 5.00 ° 1.0 Flying Vision(FOV16mm,
FOV25mm)
QFP100 0.5 P ± 0.06
mm
± 0.25 ° 1.0 Flying Vision(FOV25mm),
Upward Vision(FOV35mm,
FOV45mm)
QFP168 0.3 P ± 0.03
mm
± 0.20 ° 1.0 Upward Vision(Mega-
FOV35mm)
QFP256 0.4 P ± 0.05
mm
± 0.10 ° 1.0 Upward Vision(Mega-
FOV35mm, Mega-FOV45mm)
QFP304 0.5 P ± 0.06
mm
± 0.10 ° 1.0 Upward Vision(Mega-
FOV35mm(4 divisions),
FOV45mm)
BGA256 1.0 P ± 0.10
mm
± 0.40 ° 1.0 Flying Vision(FOV25mm),
Upward Vision(FOV35mm,
FOV45mm)
BGA □12 0.5 P
± 0.06
mm
± 0.30 ° 1.0 Upward Vision(Mega-
FOV35mm, Mega-FOV45mm)
BGA □17 0.75 P
± 0.10
mm
± 0.40 ° 1.0 Flying Vision(FOV25mm),
Upward Vision(FOV35mm,
FOV45mm)
BGA □52 1.27 P
± 0.10
mm
± 0.30 ° 1.0 Upward Vision(Mega-
FOV35mm(4 divisions),
FOV45mm)
Connector 75 mm
1.27 P
± 0.18
mm
± 0.25 ° 1.0 Upward Vision(Mega-
FOV45mm(2 divisions)
Preface
xvii
Mechanical Specifications

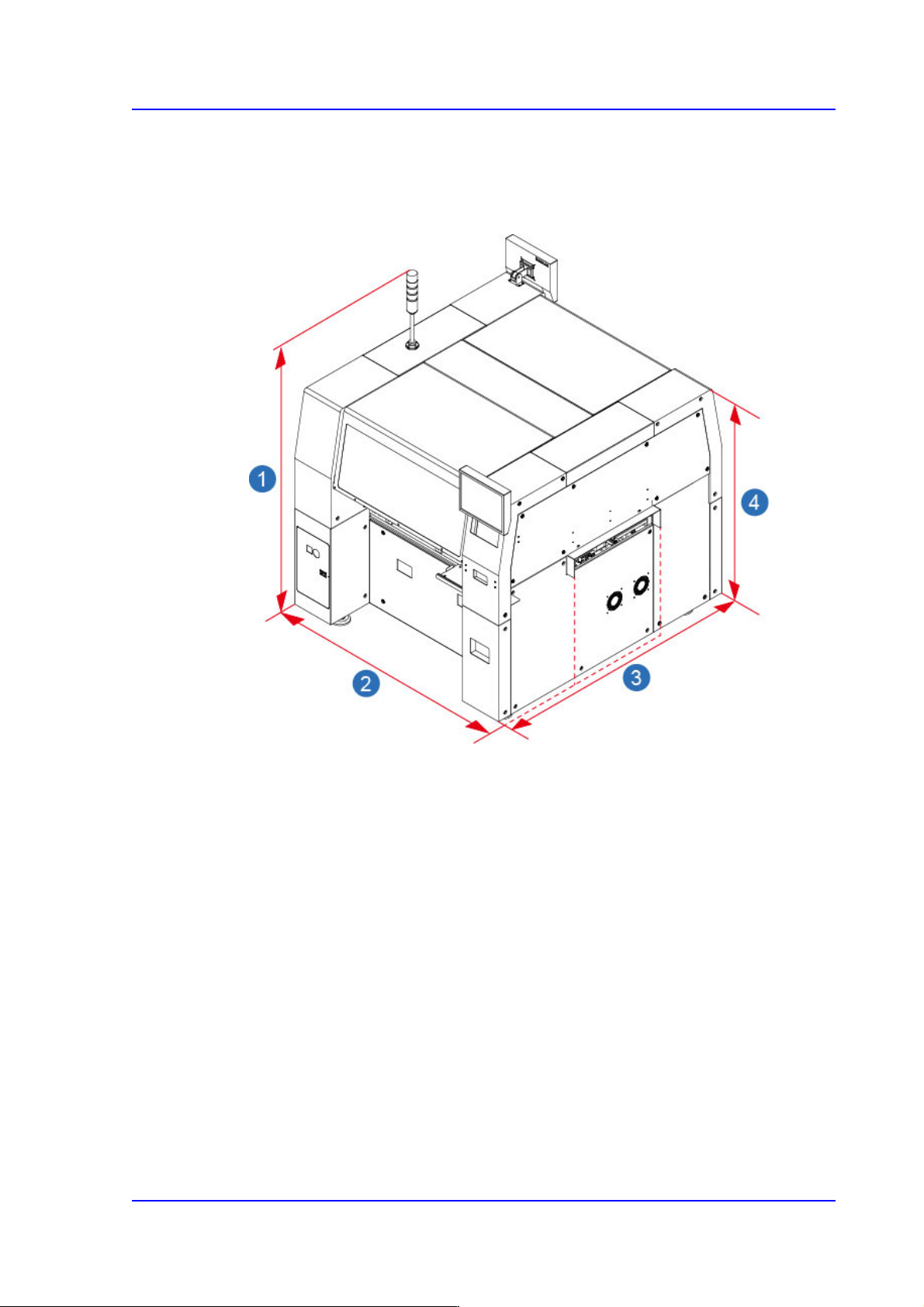

Size and mass of the machine
Height (Under the condition that the height of the PCB upper surface is 900 mm)
1: Up to the upper surface of signal light (2,090 mm)
2: Length (1,650 mm_L460 mm Conv., 1,990mm_L610 Conv., 2,140mm_L660 Conv., 1,850mm_L1,200
Conv.)
3: Width (1,680mm_Including front/rear cover, 2,030mm_Including operation unit)
4: Up to the upper surface of cover (1,530 mm)
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
xviii
Mass
Type Mass (kg) Remarks
SM482PLUS
(Standard 2 Feeder base)
1,575
Height=900mm
The mass which does not include
the Feeder.
1,635
Height=950mm
The mass which does not include
the Feeder.
SM482PLUS
(2 Docking Option)
1,545
Height=900mm
The mass which does not include
the Docking Cart and Feeder.
1,605
Height=950mm
The mass which does not include
the Docking Cart and Feeder.
SM482PLUS
(1 Standard Feeder base
+ 1 Docking Option)
1,560
Height=900mm
The mass which does not include
the Docking Cart and Feeder.
1,620
Height=950mm
The mass which does not include
the Docking Cart and Feeder.
SM482PLUS
(Front 1 feeder base)
1,535
Height=900mm
The mass which does not include
the Feeder.
1,595
Height=950mm
The mass which does not include
the Feeder.
SM482PLUS
(Front 1 Docking Option)
1,520
Height=900mm
The mass which does not include
the Docking Cart and Feeder.
1,580
Height=950mm
The mass which does not include
the Docking Cart and Feeder.
