14-14 Multi-Functional Placer SM482( L) PLUS Administrator’s Guide 2) Click the <Manual T ools> button in the ‘Nozzle Check’ tab dialog box to execute the ‘Manual C o ntrol’ dialog box. 3) Select Mirror in the <…

14-13

Machine Calibration

 <Manual Tools> button

Clicking this button will execute the “Manual Control” dialog box by performing the

same function as selected by the in the View menu.

 Head Mirror Teaching

The default value is 18. Can be different according to the system.

1) Select the Current Position( ) in the View menu to execute the

“Position” dialog box.

14-14

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

2) Click the <Manual Tools> button in the ‘Nozzle Check’ tab dialog box to

execute the ‘Manual Control’ dialog box.

3) Select Mirror in the <Axis> combo box of the Axis Tab dialog box..

14-15

Machine Calibration

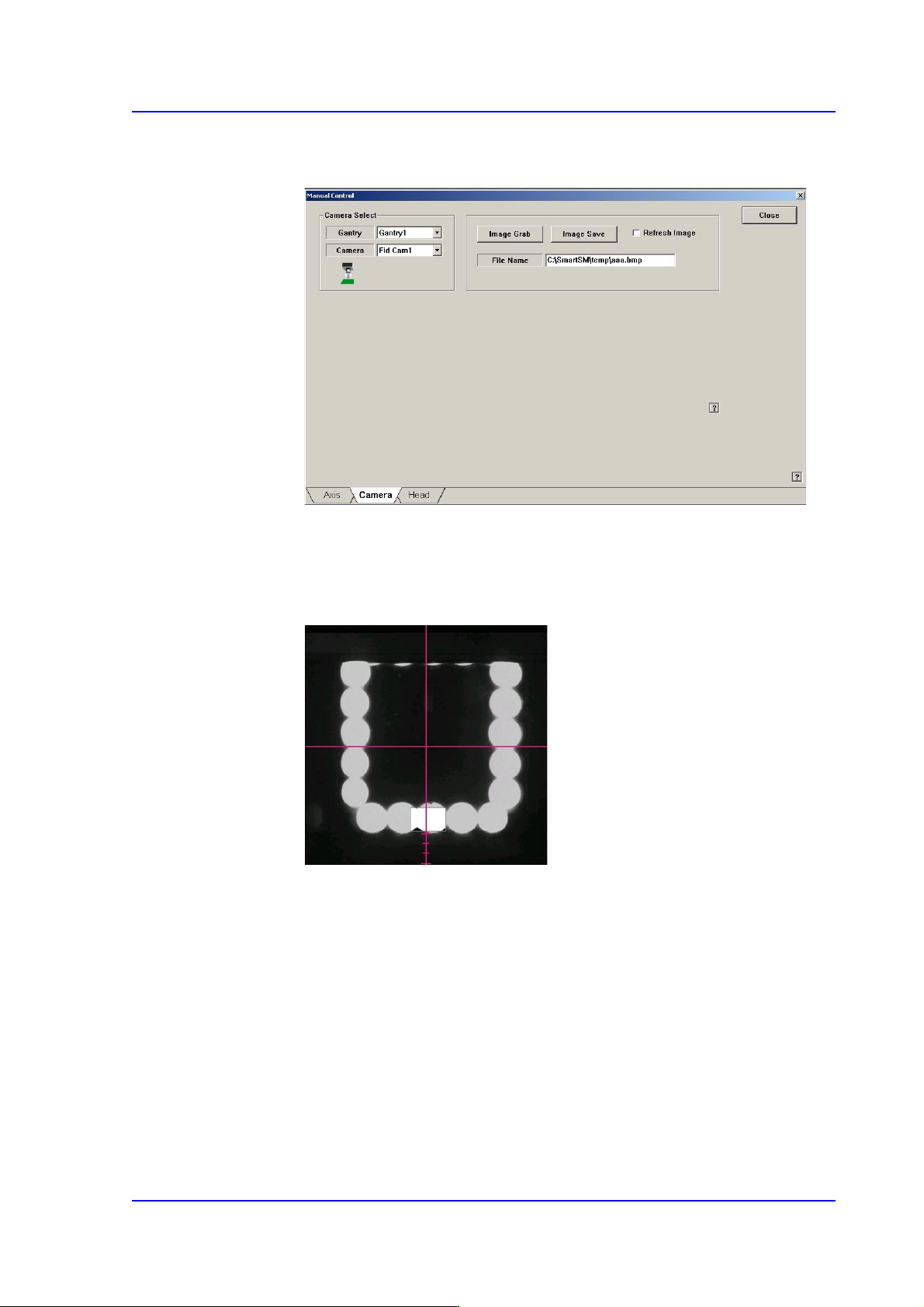

4) In the ‘Camera’ tab dialog box, select the camera corresponding to the head

that will check the existance of the nozzle.

5) Operate the motor that drives the mirror-axis by using the teaching box so that

the middle buttom of the LED of the corresponding camera comes to the third

scale from the bottom of the cross hair in the ‘SMVision’ window..

In the case of the fly-camera with FOV 25mm, match the bottom of the LED

with the third scale from the bottom of the cross hair in the ‘SMVision’

window.
