14-27
Machine Calibration
<FIND LIMIT ALL AXIS> button
Automatically finds and reflects the home positions of all axes.
<Home Info.> group
If the mirror axis is selected, the <Home Offset> edit box will be enabled. It is used to
perform calibration for the mirror axis.
<Head Z HomeSensor> Group
Sets whether there is a Z-axis home sensor for the head or not.
<Update> button
Transmits the set data to the machine and closes the dialog box.
<Close> button
Ignores the set data and closes the dialog box.
Caution If calibration is done again, the machine might not operate
properly unless the items related to the equipment position,
such as pick up position, ANC, placement origin are taught
again as the home position is changed.
After calibration, be sure to teach the items related to
position again.
14.3.1.1. Procedure
Axis Home Calibration method is as follows.
1. Click the <CALIBRATE HOME ALL AXIS> button.
(Proceed in the following order: Head Homing → Gantry Homing → Conveyor)

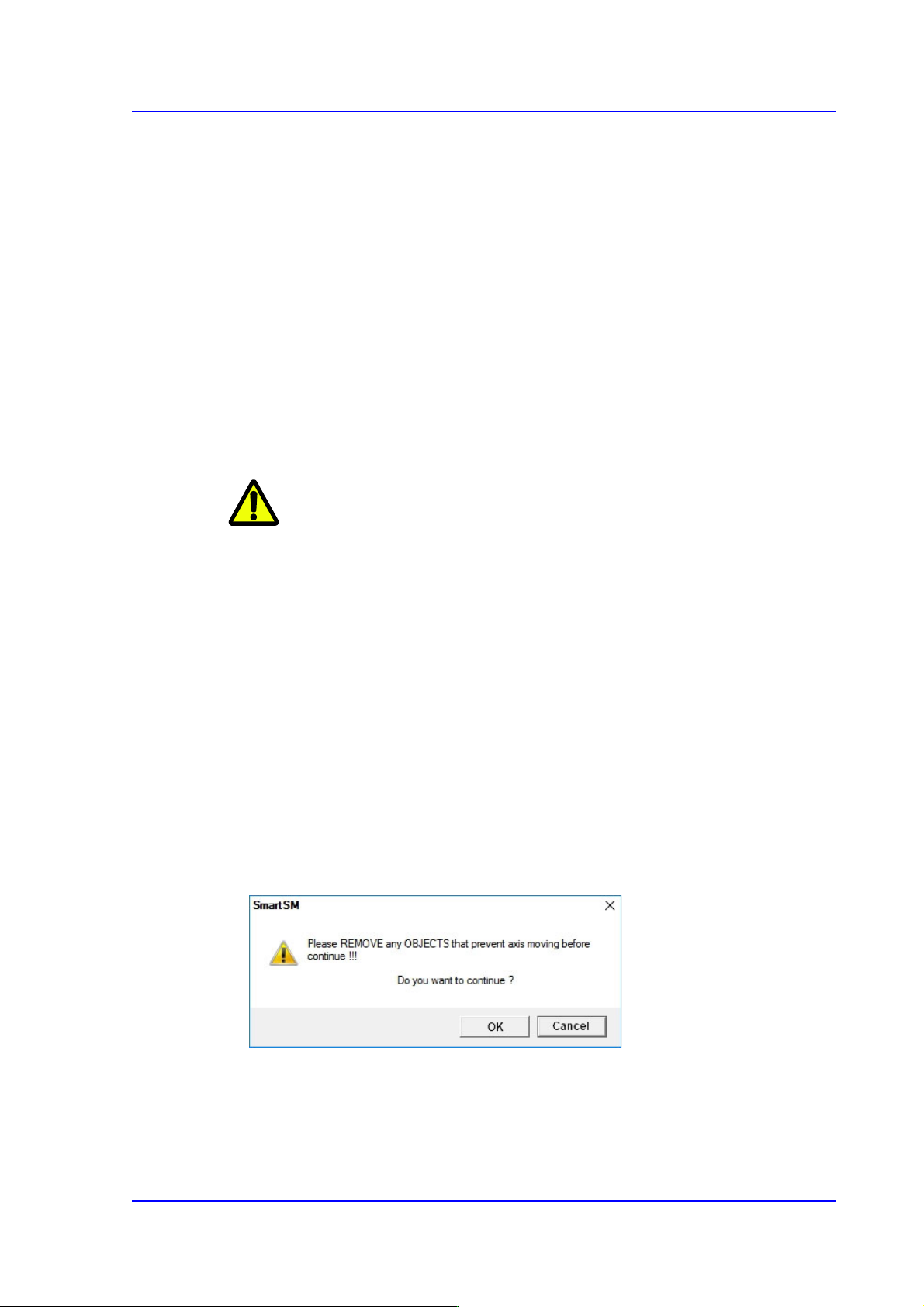

2. After confirming that there is no object inside the machine or on the conveyor, click
the <OK> button.
14-28
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

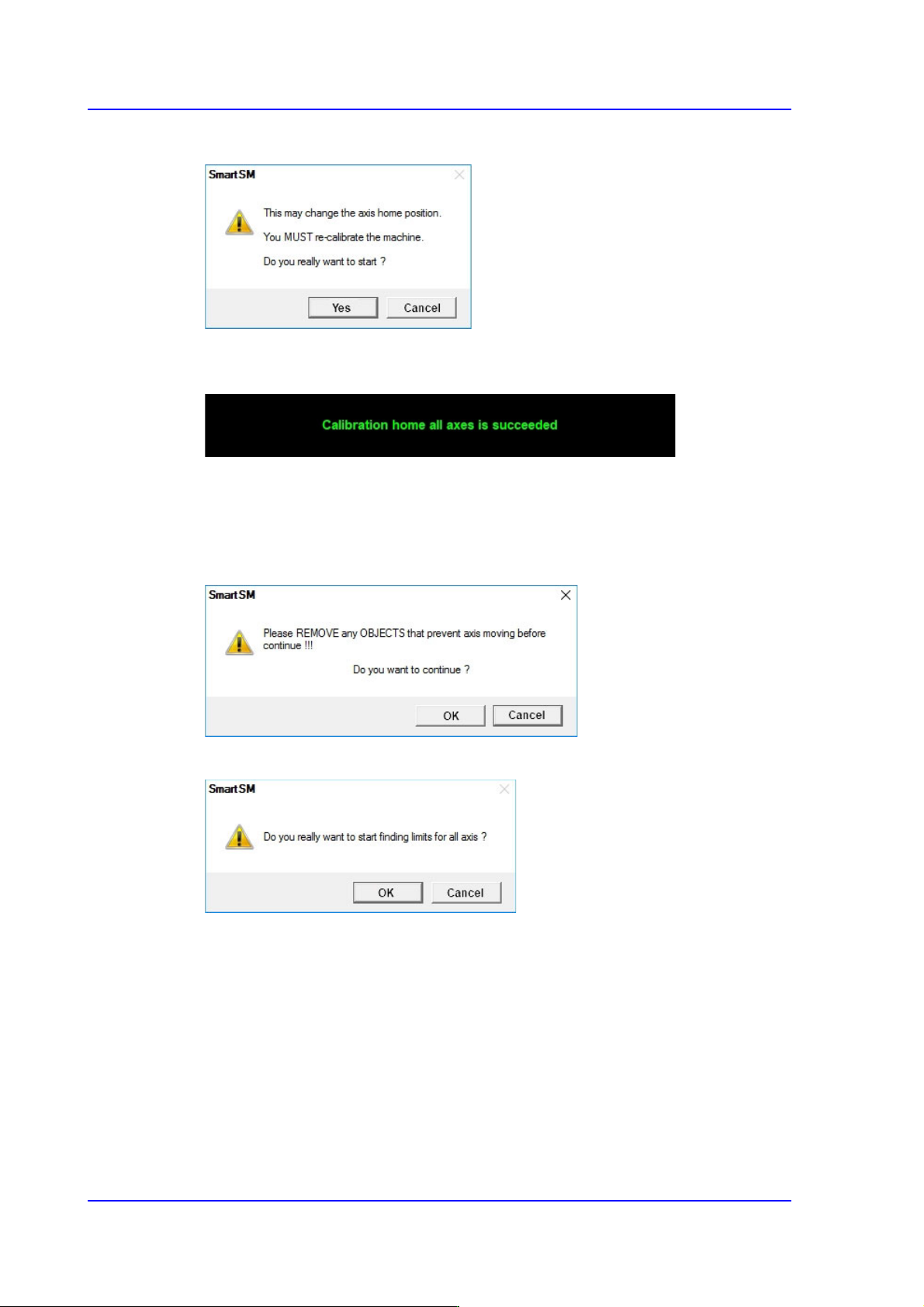

3. Click the <Yes> button.
If the calibration procedure is completed properly, the result as shown in the following
figure is displayed.
4. Click the <Find Limit All Axis> button.
(Proceed in the following order: Head Z → Gantry Limit → Conveyor)
5. After confirming that there is no object inside the machine or on the conveyor, click
the <OK> button.
6. Click the <Yes> button.
7. Measures the limit value for each axis. Click the < Yes(Y) > button.
8. Click the <Update> button.
14-29
Machine Calibration
14.3.2. Skew compensation
Skew means compensating the skew occurred horizontally in the X-axis frame against the
Y1-axis and Y2-axis after movement of equipment. This must be done upon initial
installation and after movement of the equipment to a new location. Method of skew
compensation for Y-axis is as follows;
Caution Skew means compensating the skew occurred horizontally
in the X-axis frame against the Y1-axis and Y2-axis after
movement of equipment. This must be done upon initial
installation and after movement of the equipment to a new
location. Method of skew compensation for Y-axis is as
follows;

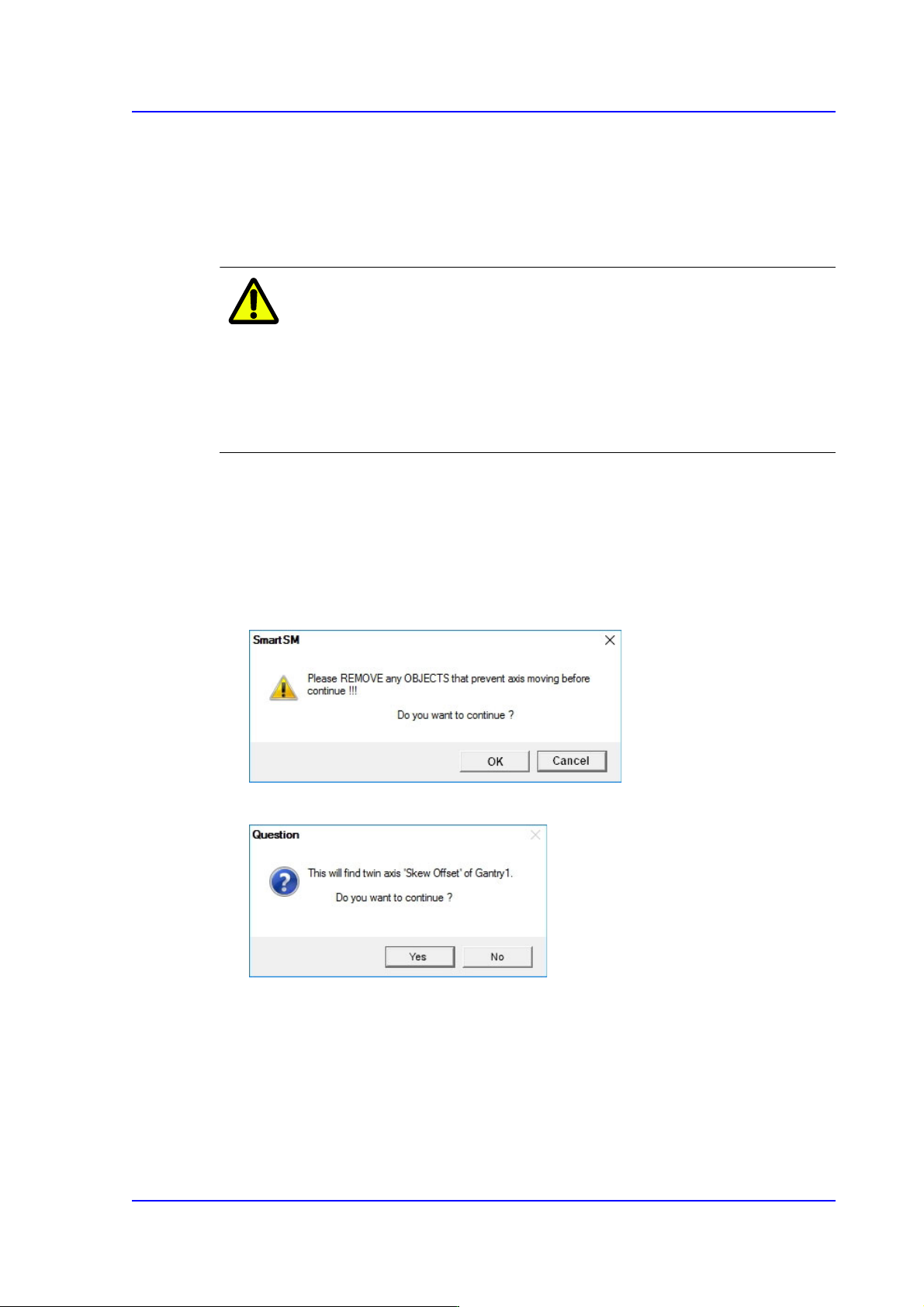

Skew compensation method is as follows.
1. First, move the X frame manually to the center of equipment.
2. Click on the <Skew compensation> button.
3. After confirming that there is no object inside the machine or on the conveyor, click
the <OK> button.
4. Click the <Yes> button.
Then the equipment will automatically perform homing for the Z-axis and the Y1-axis
motor will rotate to move the X frame until it detects the Y Home sensor. After
detecting the home sensor, the X frame will be moved at a distance equivalent to the
Y-axis movement distance (Y stroke) in the opposite direction and then moved again
until it detects the Y-axis home sensor in the opposite direction.
