Perform light mapping of the Fiducial Camera (Outer Light) in the following manner:

1. After selecting the camera for which light mapping is to be performed in the <Select

Camera> group, click the <Mapping/Test> button.

2. After placing the mapping plate on the ANC, place the circle of the mapping plate at

the center of the screen. Then click the <Get> button to teach the coordinate and click

the <Start> button in the <<Mapping>> group to perform apping.

15-34

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

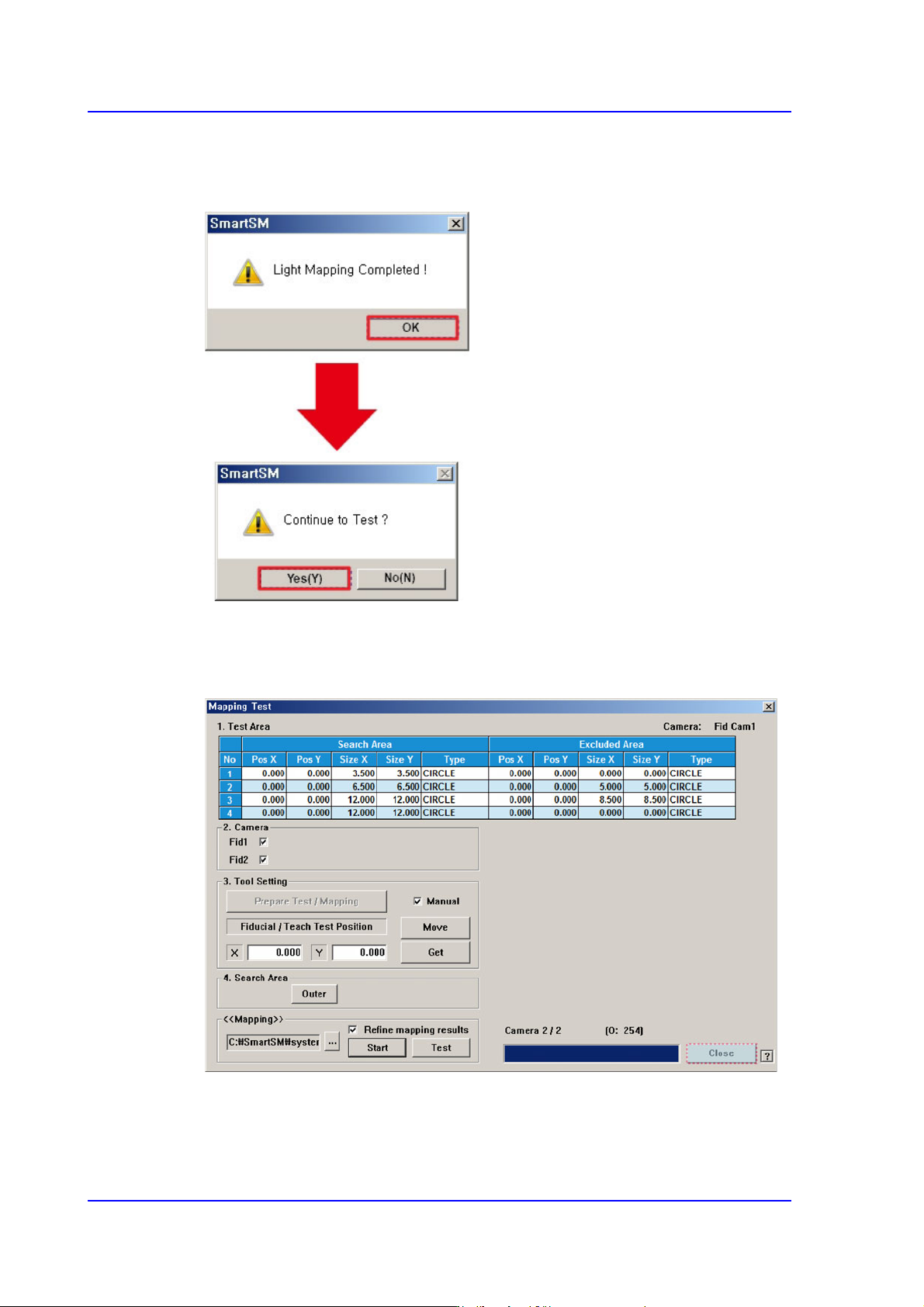

3. After clicking the <Start> button in the <<Mapping>> area, when the Light Mapping

is finished, the following dialog box appears. Pressing the <OK> button will display

the dialog box for the test.

4. Click the <(Y)> button to perform the test automatically.

5. Once the testing is completed, click the <Close> button to close the mapping test

dialog box.

15-35

System Setup

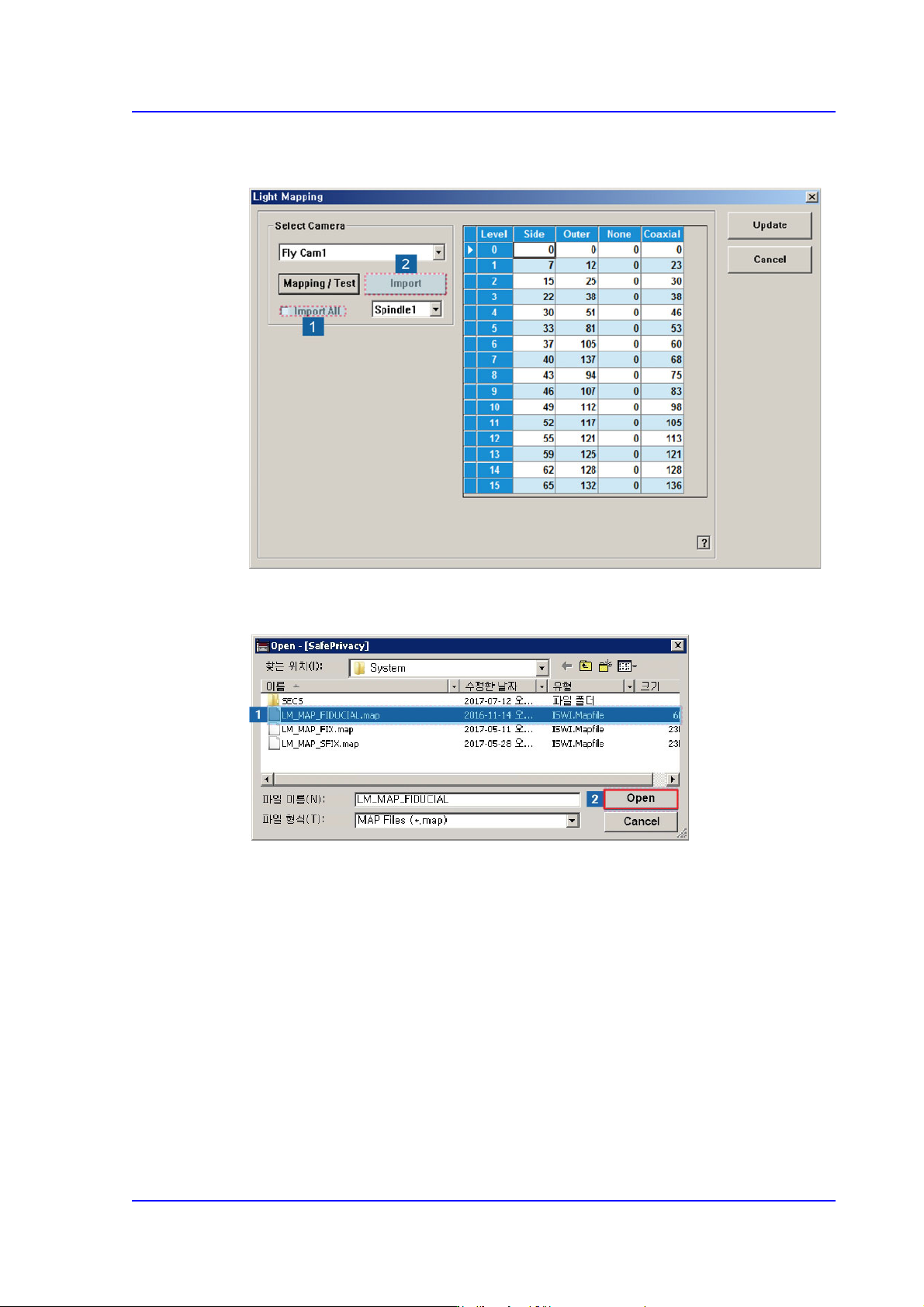

6. Check the <Import All> check box in the <Select Camera> group and click the

<Import> button.

7. Select the LM_MAP_FIDUCIAL in the <Open> dialog box and click the <Open>

button.
