9-11 Step Programming Locate and select the location and file na me of the CAD file to be imported. Select the machine to be operat ed using the imported SSA file. Select the imported machine and confirm the name of th…
9-10
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
Converts externally created ASCII data into step data for this machine.
If the <Import> button is clicked, the process that converts the corresponding data to
the step data is initialized.
Click the <Import> button in the <Steps> dialog box.
9-11
Step Programming

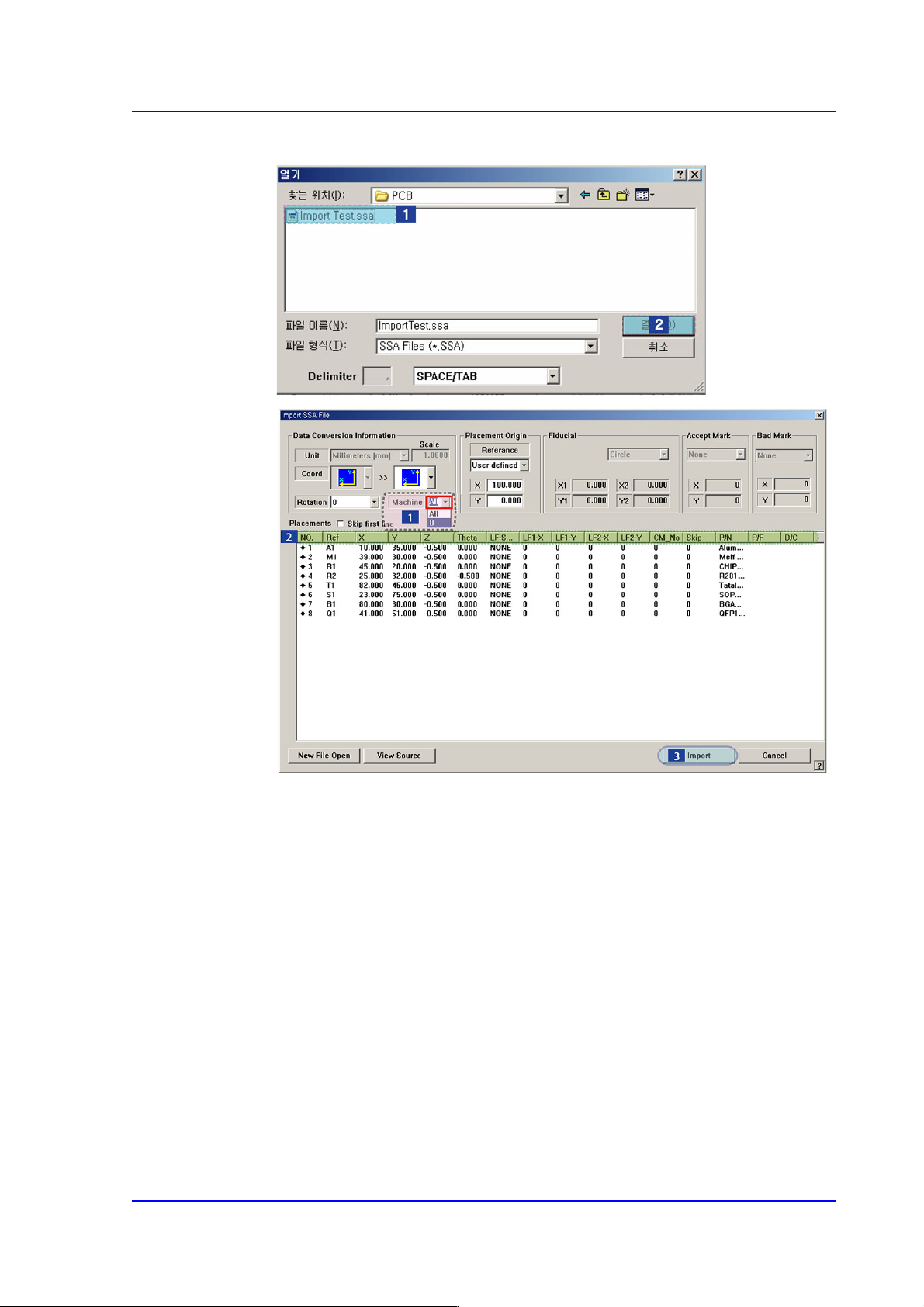

Locate and select the location and file name of the CAD file to be imported.
Select the machine to be operated using the imported SSA file.
Select the imported machine and confirm the name of the corresponding row of
placements. In the case of our standard format (SSA), the row value need not be
changed.
Executes Import.

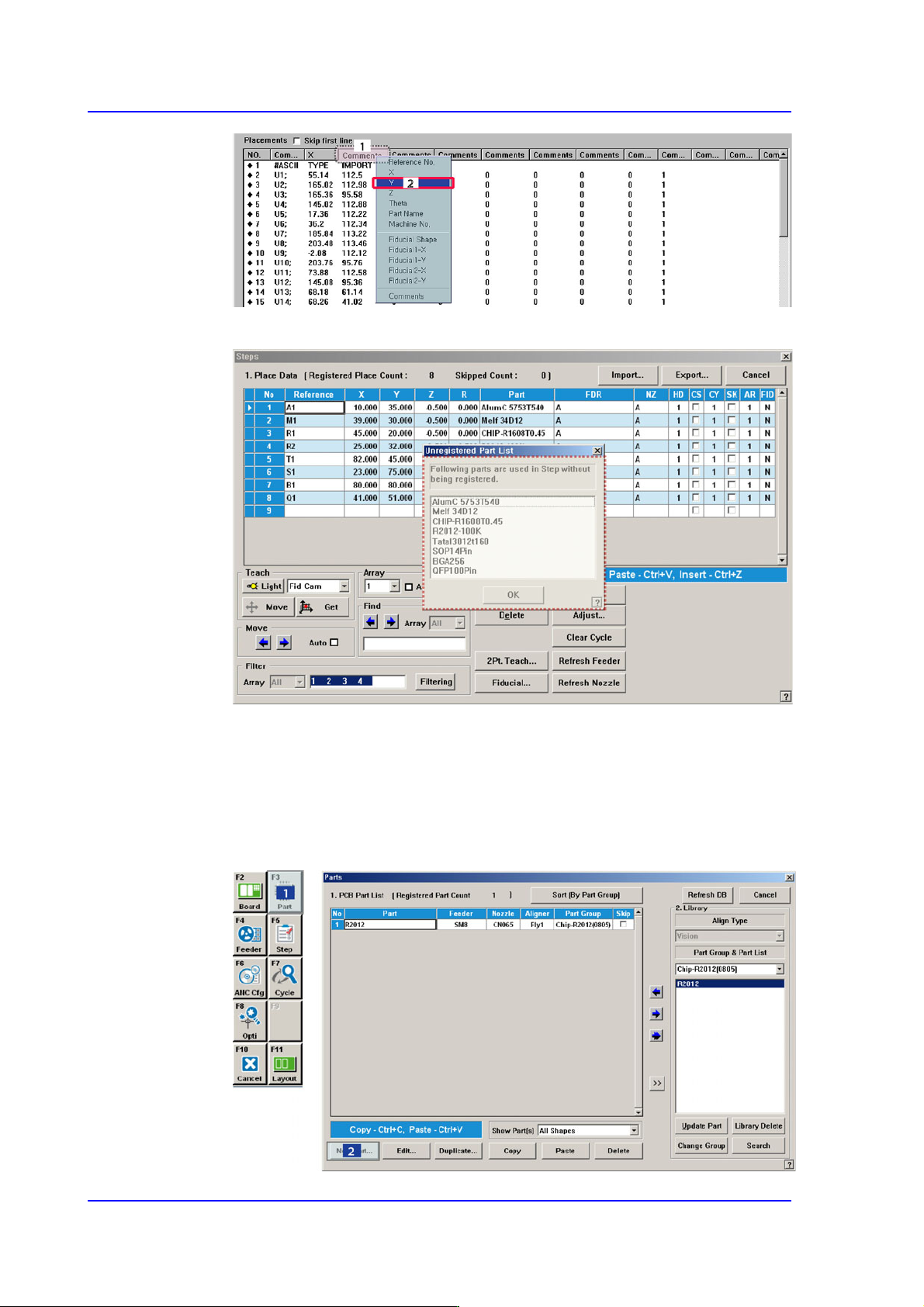

When importing a file in a format other than our standard format, the
corresponding information is indicated in a comment column as follows. Place the
mouse point on the column whose name is to be changed and right click the mouse
to display the menu and select the corresponding name. At this time, when there is
no column name corresponding to the column to be imported, set the column
name in the comment column.
9-12
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

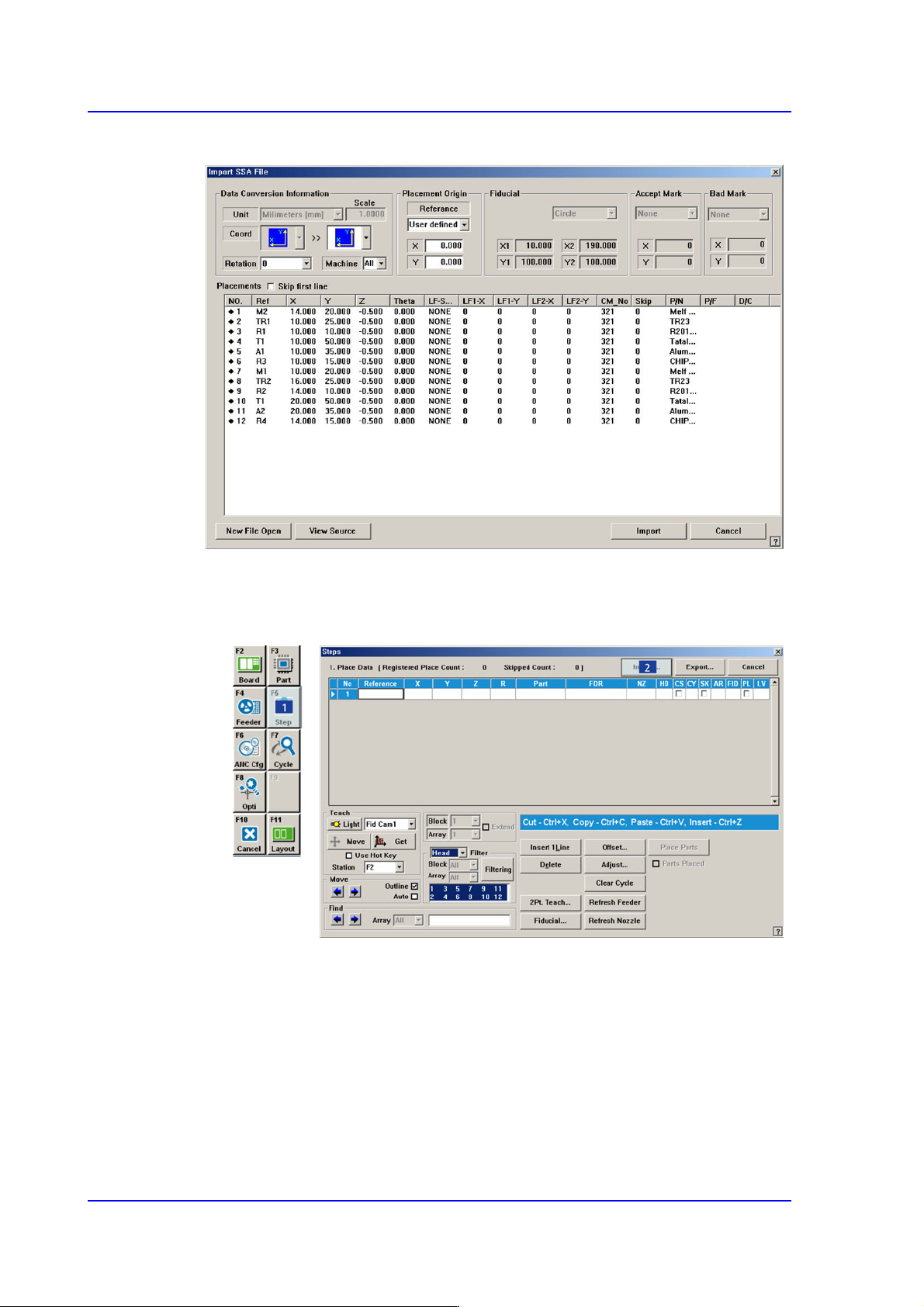

The following figure shows the import completed screen.
When the component imported from the CAD data is not registered, the
unregistered component must be registered.
If the data of the part to be placed has not been registered in the Part DB of the
machine, the list screen of these parts (list for unregistered parts) is indicated in
the screen. Register the parts in this list in the “Parts” dialog box in the “Part”
menu.
