13.1.3. Tape Feeder Monitor
Sets the quantity of remaining components. It shows the remaining components of the
installed tape feeder and alarms against the component shortage. Able to monitor the
errors related with parts supply of tape feeder.

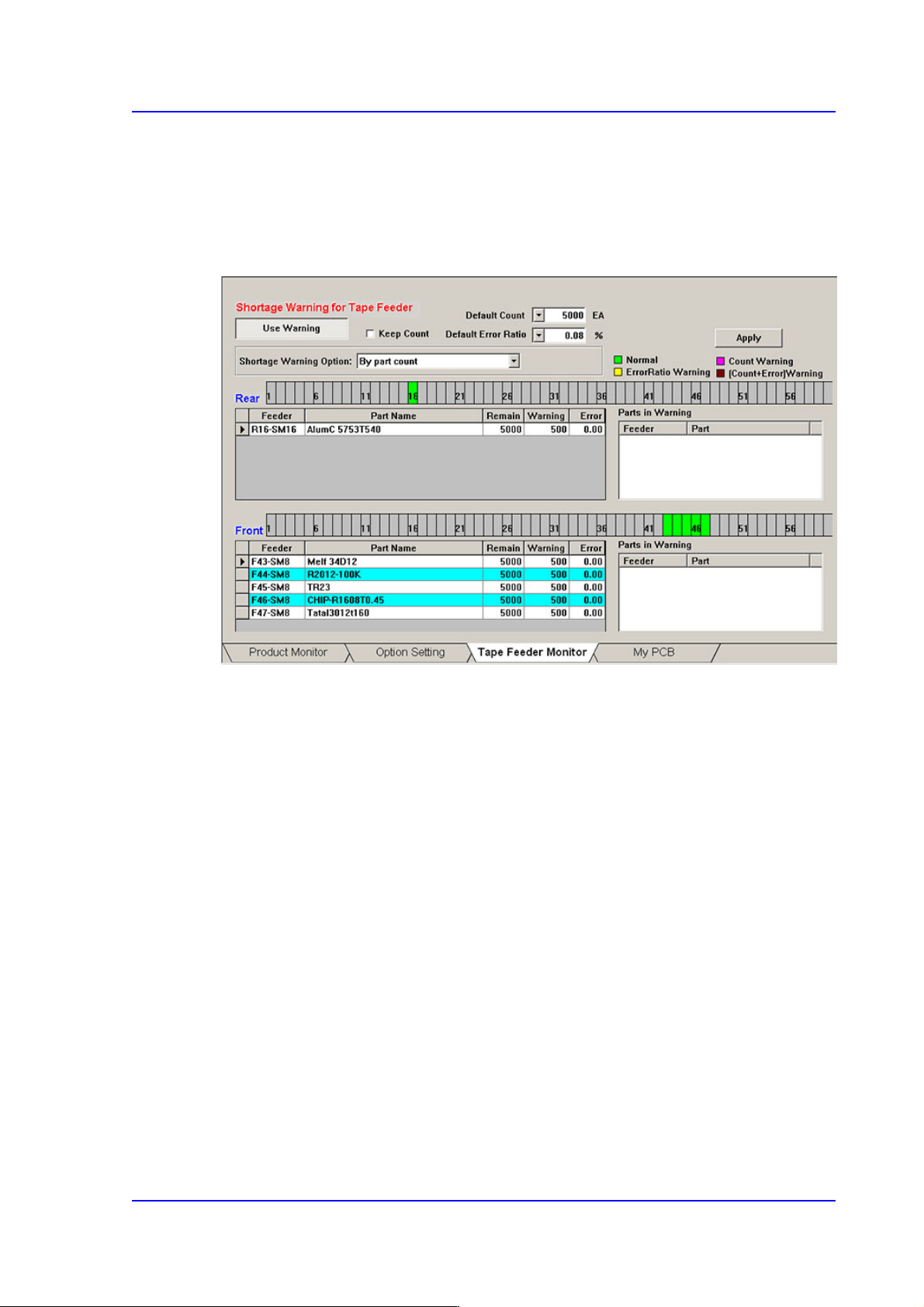

Figure13.5 “Tape Feeder Monitor” tab dialog
<Use Warning> button

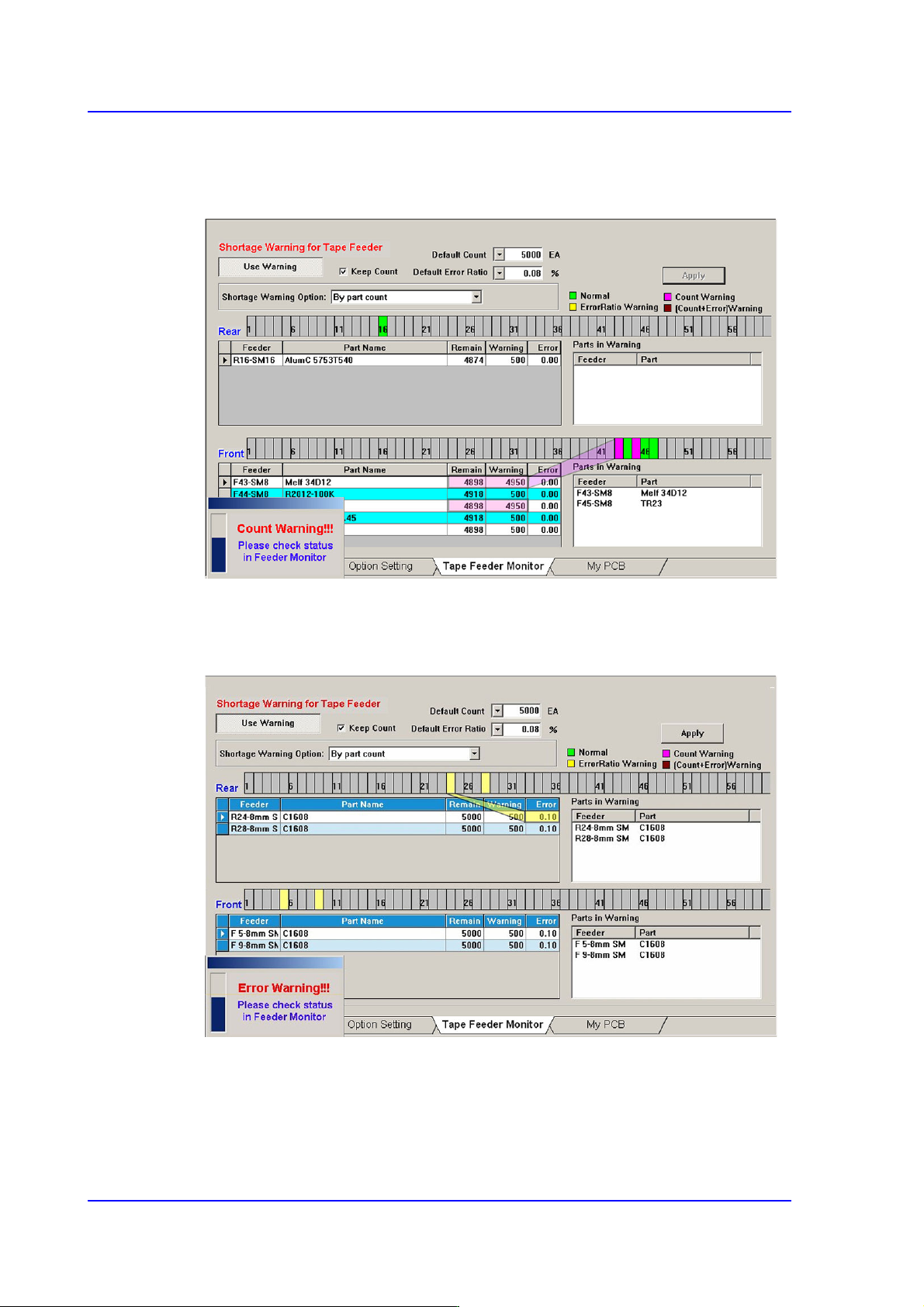

Selects whether to automatically show the alarm message setup in the ‘Tape Feeder
Monitor’ tap dialog box while working. It is setup as ‘use’ in the above dialog box.
<Keep Count> check box
Generally, if the PCB program is downloaded, the remaining quantity is set up to the
default count.
In case the same PCB program must be downloaded again for a particular reason
during operation, select this check box to maintain the Remain Count of the tape
feeder installed already.
13-14
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
<Default Count> combo box
Indicates the part shortage alarm message box when the remaining quantity of parts
supplied to the tape feeder is less than the setup value.
<Default Error Ratio> combo box
Indicates the alarm message box for parts supply error rate when the failure rate of
parts supply in the tray feeder is higher than the setup value.
<Shortage Warning Option> combo box
Indicates the alarm message box for parts supply error rate when the failure rate of
parts supply in the tray feeder is higher than the setup value.
13-15
Production Setup
By part count
Indicates the warning message based on the part count set in the <Warning>
column.
By percentage of part count

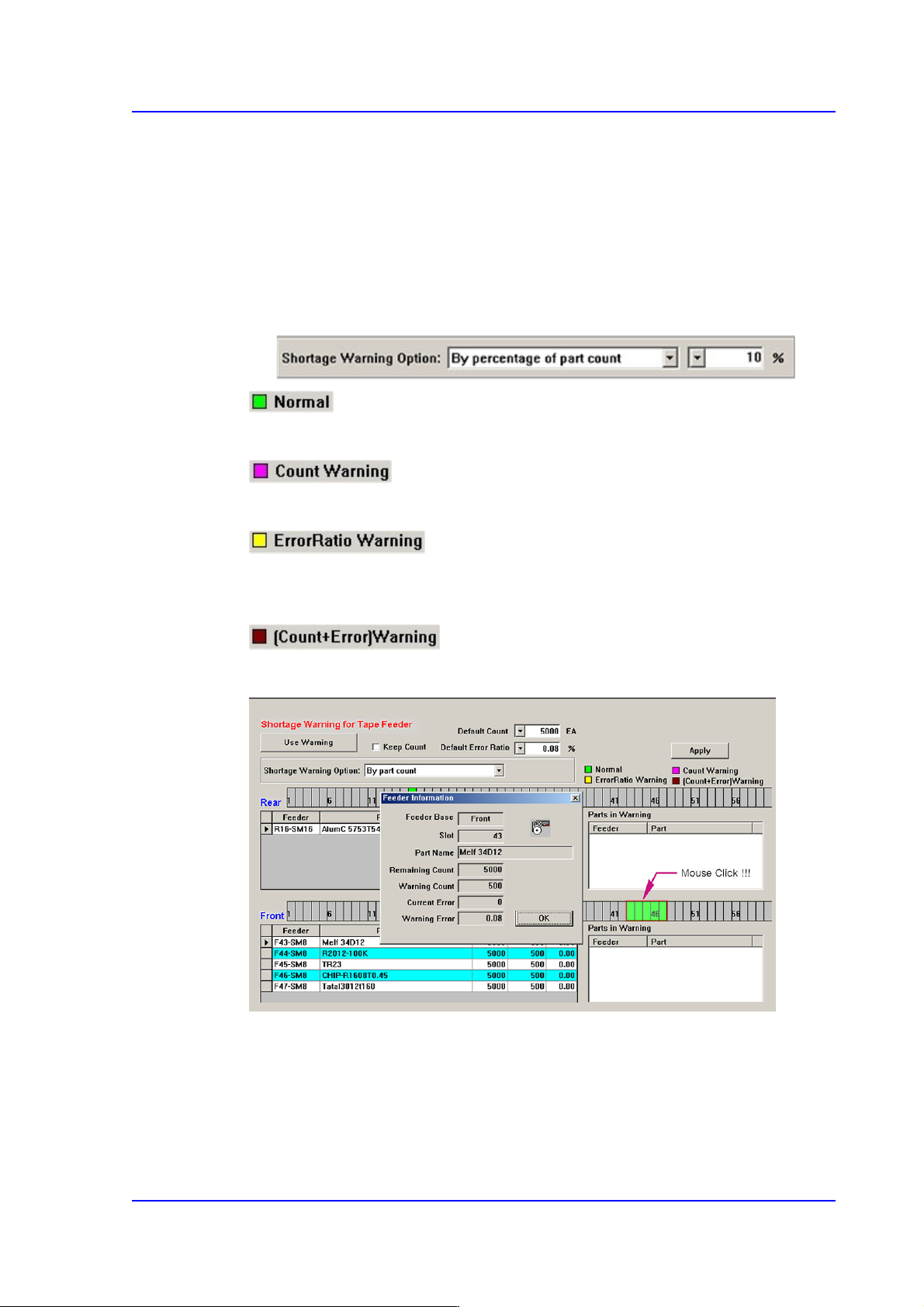

If this is selected, the Combo Box for selecting percent is created at the right.
Based on the Remain Count, if the part count becomes less than the corresponding
percent, the warning message is indicated.
Indicates normal tape feeder.
Indicates the tape feeder of which the remaining parts are less than the setup value.
Indicates the tape feeder of which the error rates of part supply is higher than the setup
value.
Indicates the tape feeder with simultaneous shortage and defect of remaining parts.
