6-19

Board Definition

 <Teach> button

Teach the offset value of Array PCB. When this Button is clicked on, the

following screens are displayed in succession.

Teach the origin of the small PCB 1. When the “Enter” key is pressed after

teaching, the following screen is displayed.

Teach the origin of the small PCB on the position that can determine the offset.

When the “Enter” key is pressed after teaching, the following screen is displayed.

Press the “Enter” key to complete the Array PCB offset value teaching operation.

 <Apply> button

Automatically creates Array PCB data with the value set in this group.

 <5. Add Value> group

Set the values of X, Y, and R to be added to the grid line of the <1. Array> group.

When the “Add” Button is clicked on after setting the desired values, the values are

added to the corresponding grid lines.

6-20

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

 <Array Skip/Work Tools> group

 All Skip: Set “Skip” for all of the array PCBs.

 All Work (No Skip): Release ‘Skip’ settings for all of the array PCBs.

 Skip: Set the ‘Skip’ for the array PCB having the number that is inputted in the

‘Array No’.

 Work Release ‘Skip’ setting for the array PCB having the number that is inputted

in the ‘Array No’.

 <Update> button

Saves the edited data and closes the screen.

 <Cancel> button

Closes without saving the edited data.

6-21

Board Definition

6.3. Fiducial Mark Setup

If there is a fiducial mark on the PCB, set the position of the fiducial mark and mark data.

The fiducial mark is the mark on the PCB used for recognition of the PCB distortion and

its correction. In the case of the PCB without fiducial mark, the placement accuracy is

relatively low.

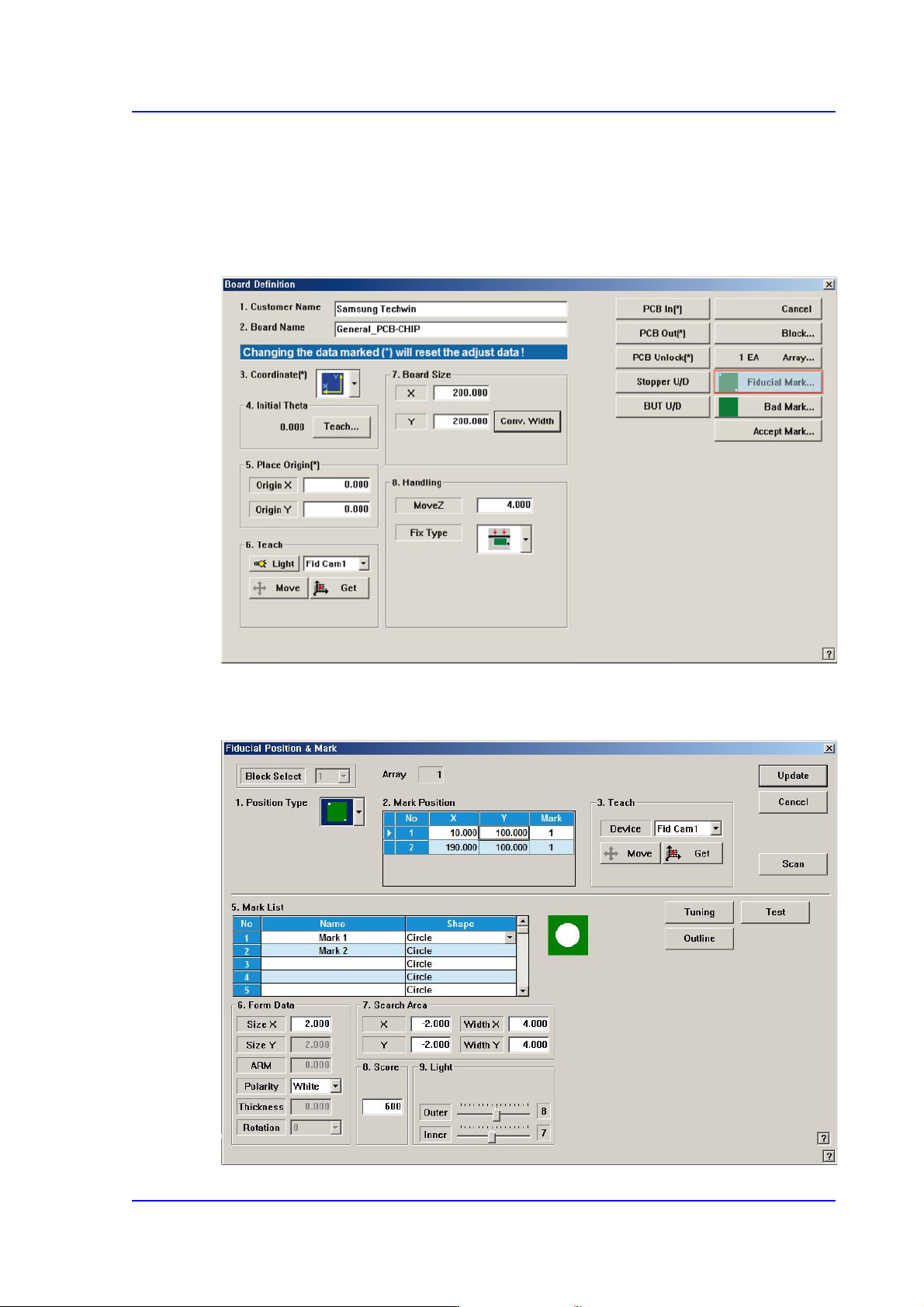

When this <Fiducial Mark…> button is clicked on, the following dialog box is displayed.

Figure6.4 “Fiducial Position & Mark” dialog box
