Production Setup

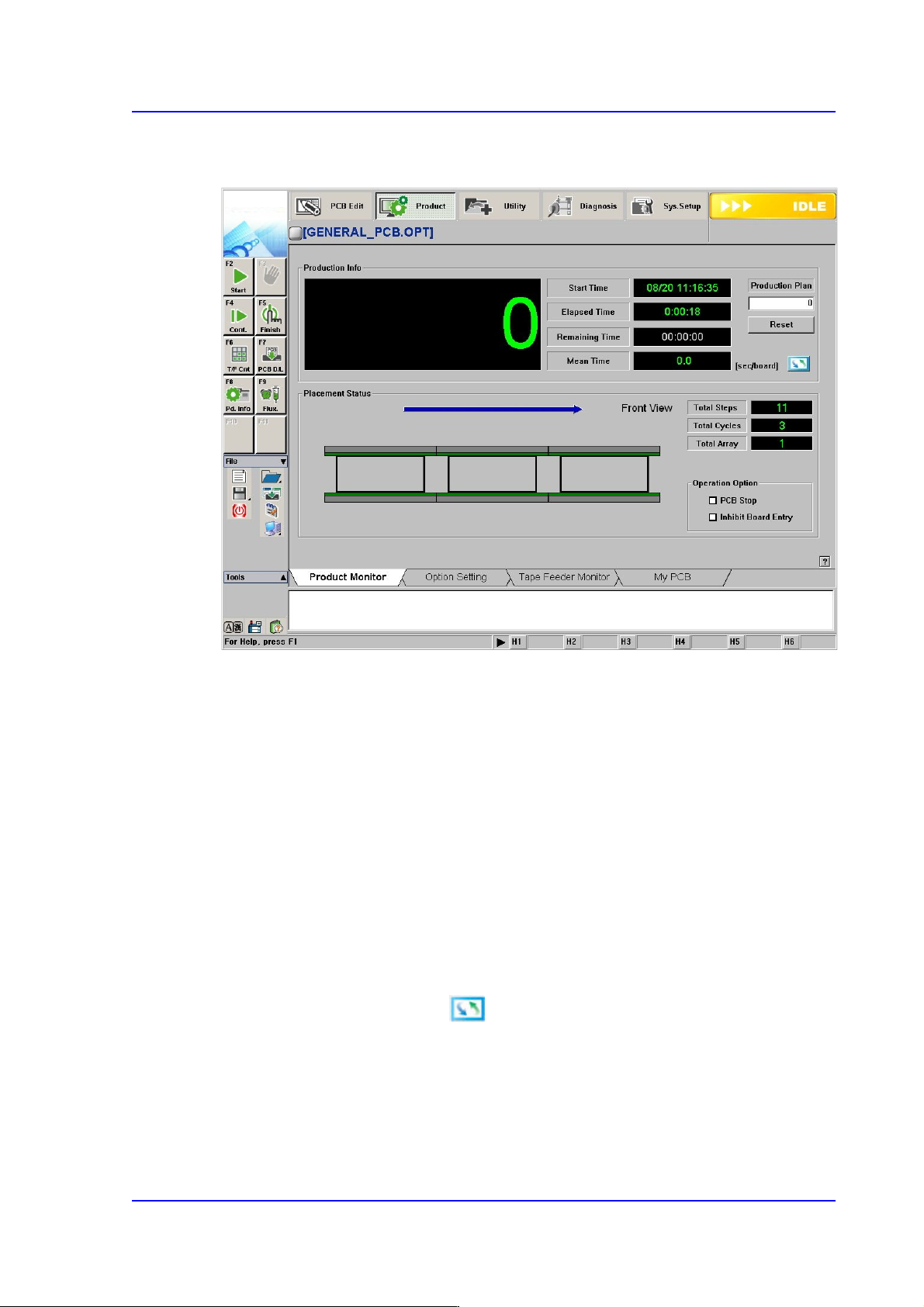

When the submenu, PCB D/L (F7) is clicked on, transmits the PCB data edited to the

equipment, and the following screen is displayed.

 <Production Info> group

Displays the status of operation in progress.

 <Start Time> Static box

Indicates the time when the <Start> button on the machine operation panel

pressed.

 <Elapsed Time> Static box

Indicates the period of time that has passed after the <Start> button is pressed

 <Remaining Time> Static box

Indicates the expected remaining period of time until all PCBs are produced.

 <Mean Time> Static box

Shows various types of information related to PCB production as follows.

Clicking the right button will display different types of information.

 <sec/board>

Indicates the average required time in the “second” unit until the next PCB is

fed since one PCB was fed to the work station.

 <CPH>

Indicates number of parts placed in an hour after the initial PCB is fed to the

13-4

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

work station.

 <board/hour>

Indicates number of PCBs produced in an hour after the initial PCB is fer to

the work station.

 <Production Plan> edit box

Set the total number of PCBs to be worked on. If the value becomes 0, the

production is stopped.

 <Reset> button

Initializes the number of produced PCBs to “0”.

 <Placement Status> group

Displays the data related to PCB board. Shows the status of the PCB feeding to the

conveyor graphically and indicates the progress of the work on the PCB in percentage.

 <Total Steps> Static box

Displays the total number of steps.

 <Total Cycles> Static box

Displays the total number of cycles.

 <Total Array> Static box

Displays the total number of Array PCBs.

 <Operation Option> group

This function can be selected and executed during placement.

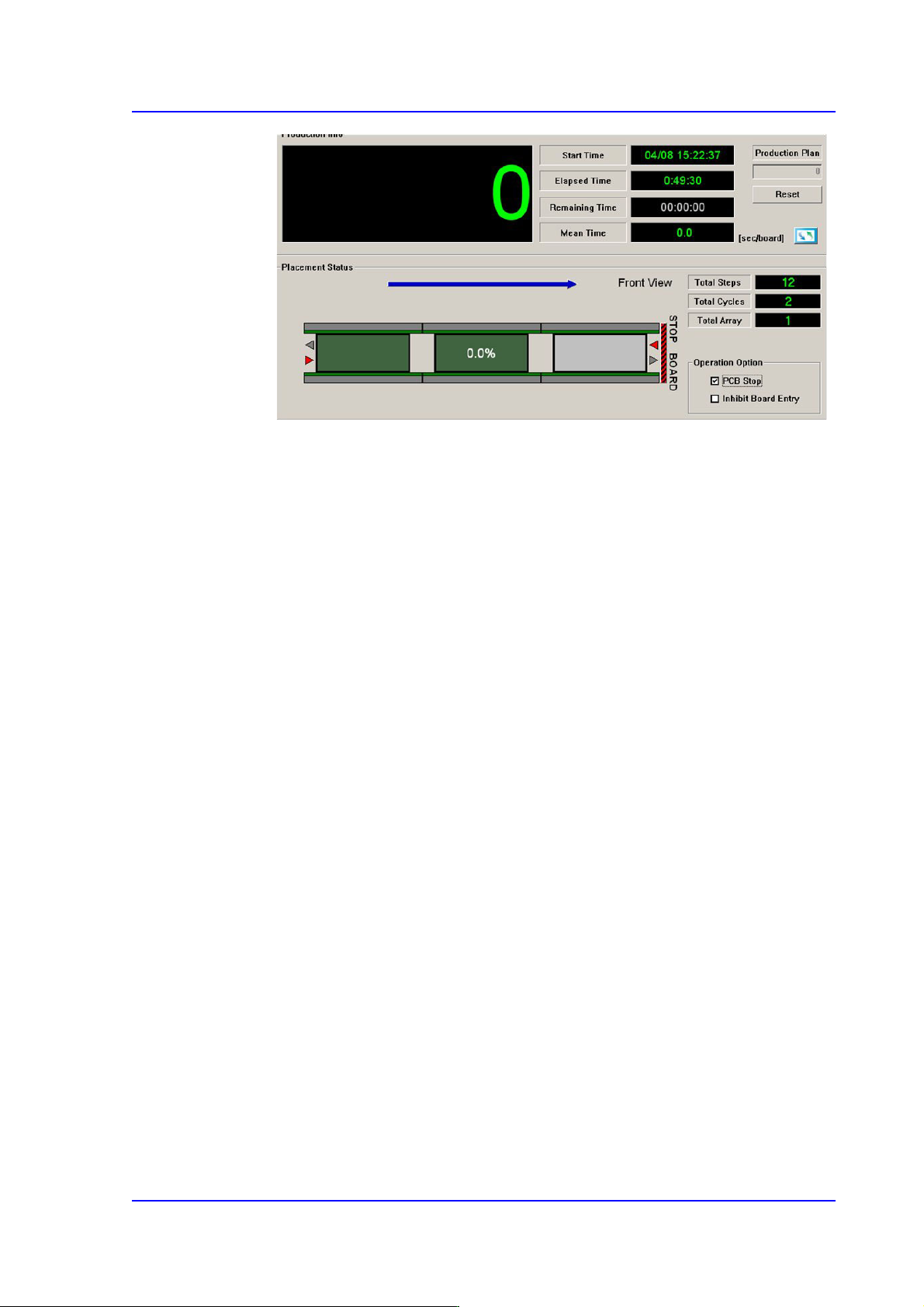

 <PCB Stop> check box

Selecting this check box during operation will pause the equipment after finishing

the placement for the PCB in the current placement area. Then they are displayed

as shown in the following screen.

At this time, the equipment is in “RUN_RDY” state. The shutdown of the

equipment in “RUN_RDY” state is not included in the shutdown count of the

equipment.

13-5

Production Setup

If the equipment is paused by clicking the <PCB Stop> button, when starting the

work, click the <PCB Restart> button first and then press the 'START' button.

 <Inhibit Board Entry> check box

Check this box to stop PCBs from entering the transport rail automatically from an

upstream transport rail or board station. If the equipment is temporarily stopped by

this function, the equipment state is changed into “RUN_RDY” state.

The shutdown of the equipment in “RUN_RDY” state is not included in the

shutdown count of the equipment.

 <One Time Skip> button

Skip only the new PCBs fed to the equipment temporarily without placing them. Since

separate setup is needed to enable this function, our C/S department must first be

contacted.

When using this function, the following pre-requisitions shall be satisfied:

 Small PCB (substrate) that is set to ‘Work’ among array PCBs that use no bad

mark

 Small PCB (substrate) to which ‘One-Time-Skip’ function is applied in the ‘PCB

Array’ dialog box is already set up

 PCB download completed.
