16-6 Multi-Functional Placer SM482( L)P PLUS Administrator’s Guide 16.3. Light [F4] Checks the lighting devices in stalled on the fiducial camera, fly camera, and fix camera. Figure16.6 “Camera Light Diagnosis “dialog bo…
16-5
Diagnosis

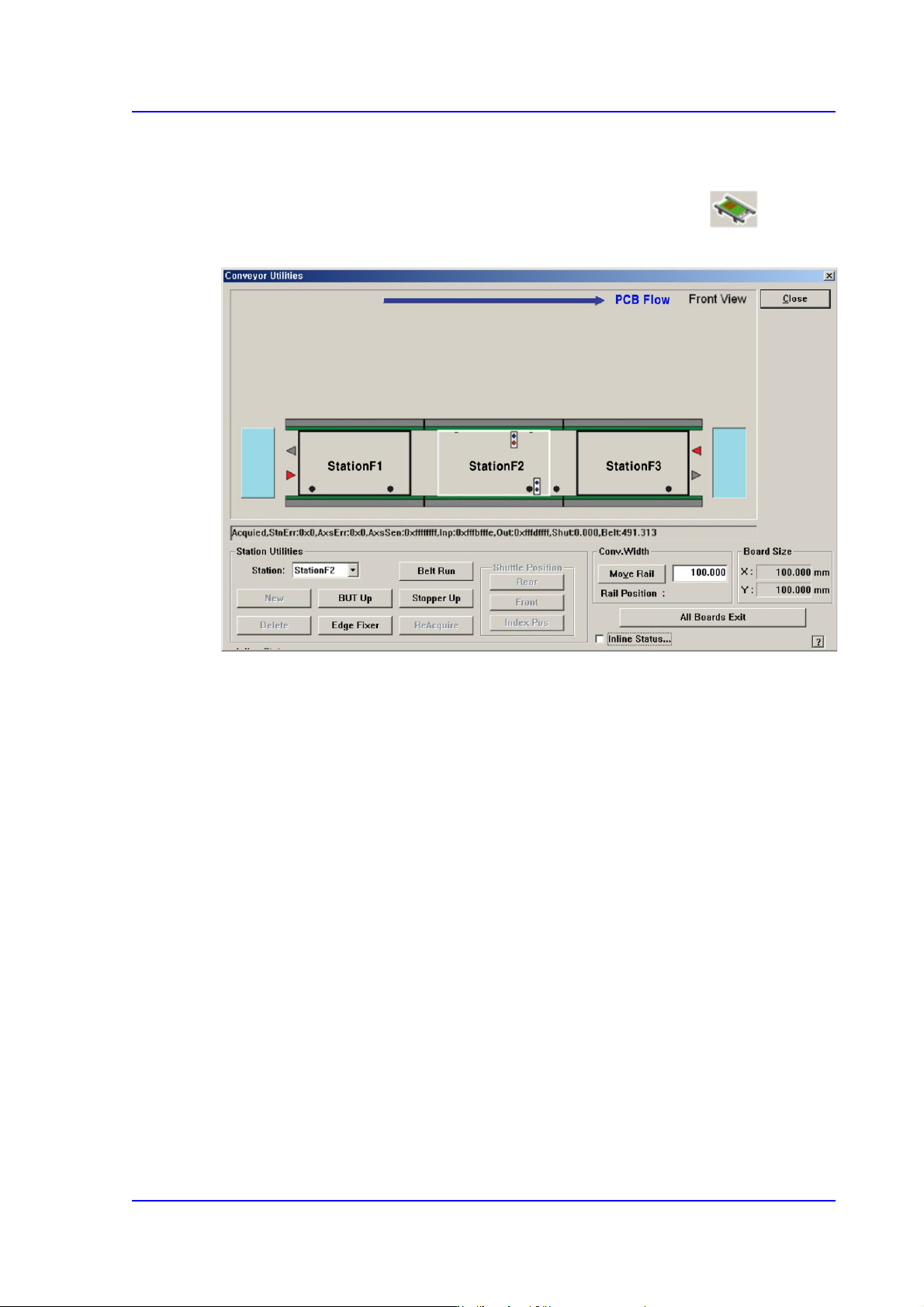

16.2. Conveyor [F3]
Checks the status of various devices in the conveyor group. When this submenu is selected
on, the following dialog box is displayed. Please refer to“4.5 Conveyor ” for more
information.
16-6
Multi-Functional Placer SM482(L)P PLUS Administrator’s Guide
16.3. Light [F4]
Checks the lighting devices installed on the fiducial camera, fly camera, and fix camera.
Figure16.6 “Camera Light Diagnosis “dialog box
<Camera Select> combo box
Select the camera on which the lighting device to be checked is installed.
<Camera No.> combo box
Fly Cam: Select the Fly camera on the front gantry.
Memo The Fly camera for recognizing each head is as follows:
Fly Cam1: Head #1
Fly Cam2: Head #2
Fly Cam3: Head #3
Fly Cam4: Head #4
Fly Cam5: Head #5
Fly Cam6: Head #6
Fix Cam(Option): Select the fix camera.
Fid Cam: Select the fiducial camera.
16-7
Diagnosis
<Light Value> group
Set the light value.
When the fiducial camera is selected, the range of light level that can be set is as
follows.
<Outer>: The range of the Outer light level is 0~15.
<Inner>: The range of the Inner light level is 0~15.
When the fly camera is selected, the range of light level that can be set is as follows.
<Side>: The range of the side light level is 0~15.
<Outer>: The range of the Outer light level is 0~15.
When the fix camera is selected, the range of light level that can be set is as follows.
<Side>: The range of the side light level is 0~15.
<Outer>: The range of the Outer light level is 0~15.
<Inner>: The range of the Inner light level is 0~15.
<Close> button
Closes the dialog box.
